Model # 28743 Official Lifestyler recumbent cycle/rower

Here are the diagrams and repair parts for Official Lifestyler 28743 recumbent cycle/rower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Elliptical Nut 012042
#6D

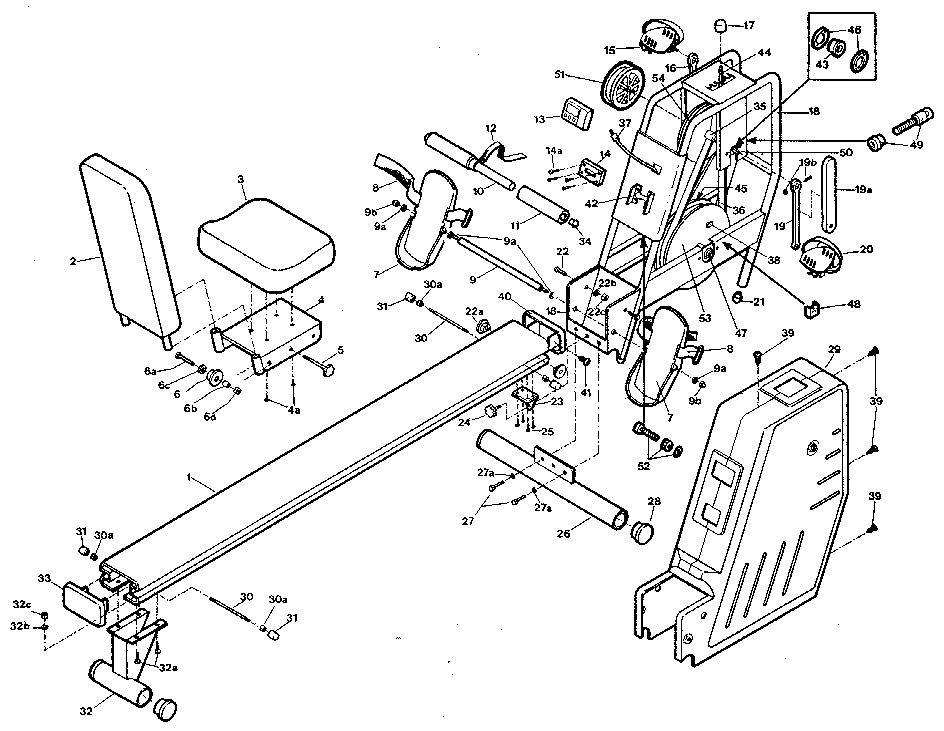

Unit parts diagram

Elliptical nut

Part #012042

This item is not returnable
Back Order
Reebok Exercise Equipment Flat Washer 014030
#6C

Unit parts diagram

Reebok exercise equipment flat washer

Part #014030

This item is not returnable
In Stock
Screw,hhcs,b 013056
#6A

Unit parts diagram

Screw,hhcs,b

Part #013056

This item is not returnable
In Stock
Exercise Equipment Screw 013093
Exercise equipment screw

Part #013093

This item is not returnable
In Stock
Nordictrack Exercise Equipment Nut 012002
#9B

Unit parts diagram

Nordictrack exercise equipment nut

Part #012002

This item is not returnable
In Stock
Weslo Carriage Bolt 013137
#52A

Unit parts diagram

Weslo carriage bolt

Part #013137

This item is not returnable
In Stock
Image Exercise Equipment Washer 014003
#22B

Unit parts diagram

Image exercise equipment washer

Part #014003

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014073
#27A

Unit parts diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Batt,a-76,wa 033134

#NI

All parts diagram

Batt,a-76,wa

Part #033134

The manufacturer no longer makes this part, and there's no substitute part

Wshr,flat,us 014087
#9A

Unit parts diagram

Wshr,flat,us

Part #014087

The manufacturer no longer makes this part, and there's no substitute part
