Model # 4872BT Official Eureka ultra smart vacuum

Here are the diagrams and repair parts for Official Eureka 4872BT ultra smart vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

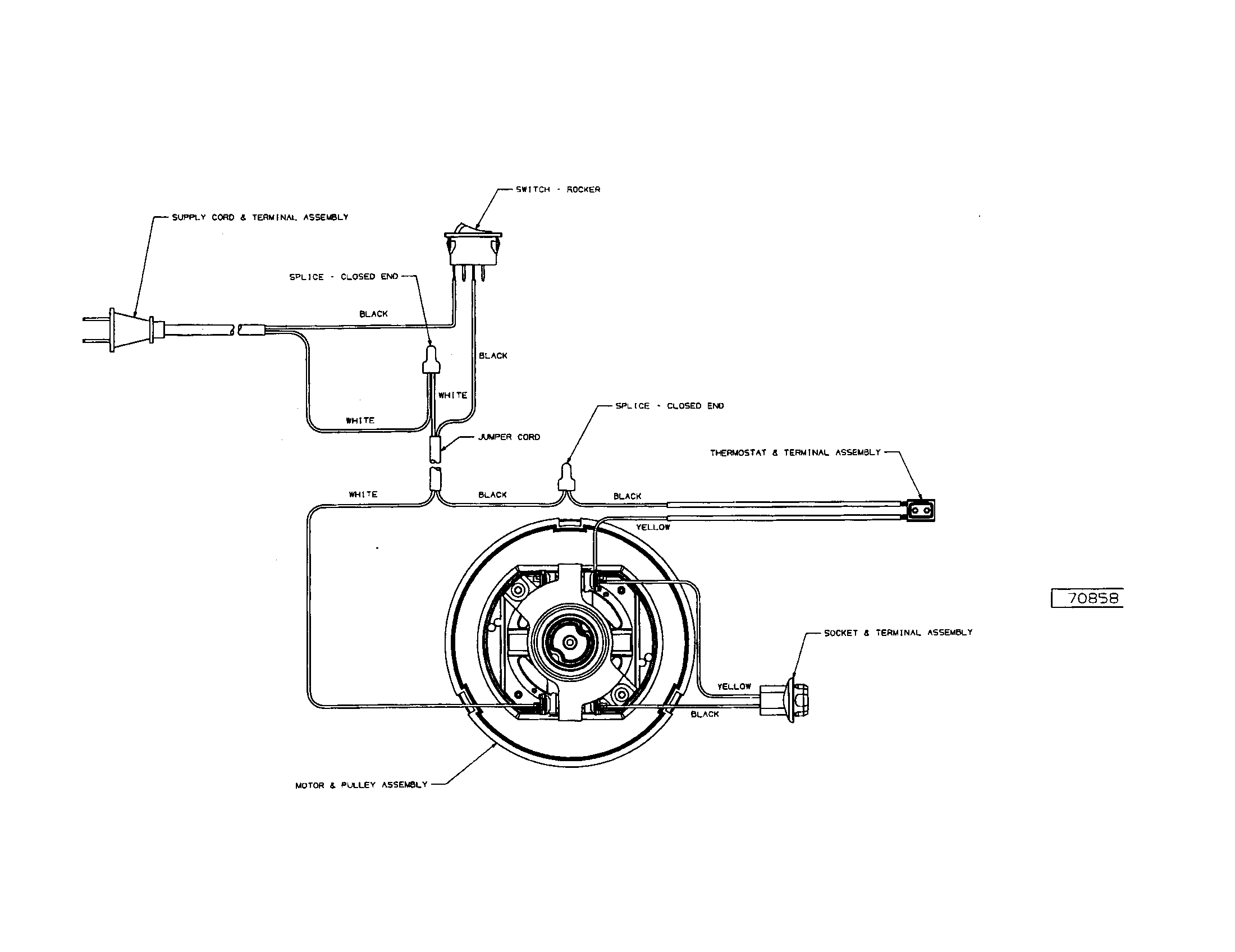

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Electrolux Screw 60160
#15

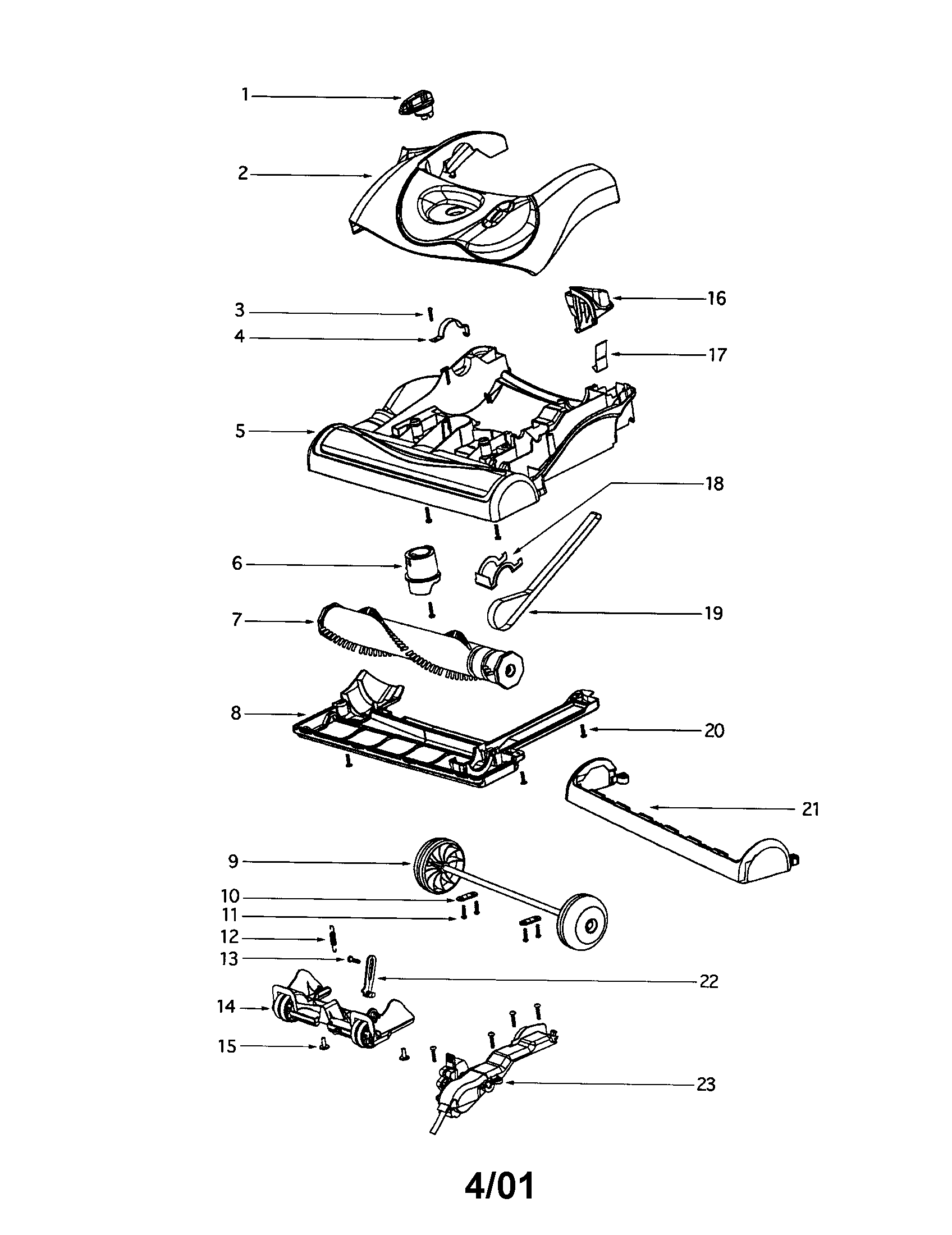

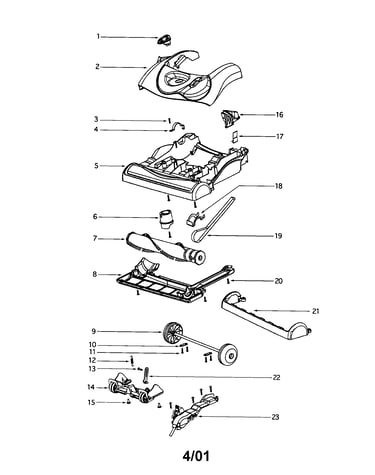

Hood diagram

Electrolux screw

Part #60160

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel, Front 39173A-119N
#14A

Hood diagram

Vacuum wheel, front

Part #39173A-119N

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp 53201
#10

Hood diagram

Kenmore clamp

Part #53201

The manufacturer no longer makes this part, and there's no substitute part

Gasket 70055
#11

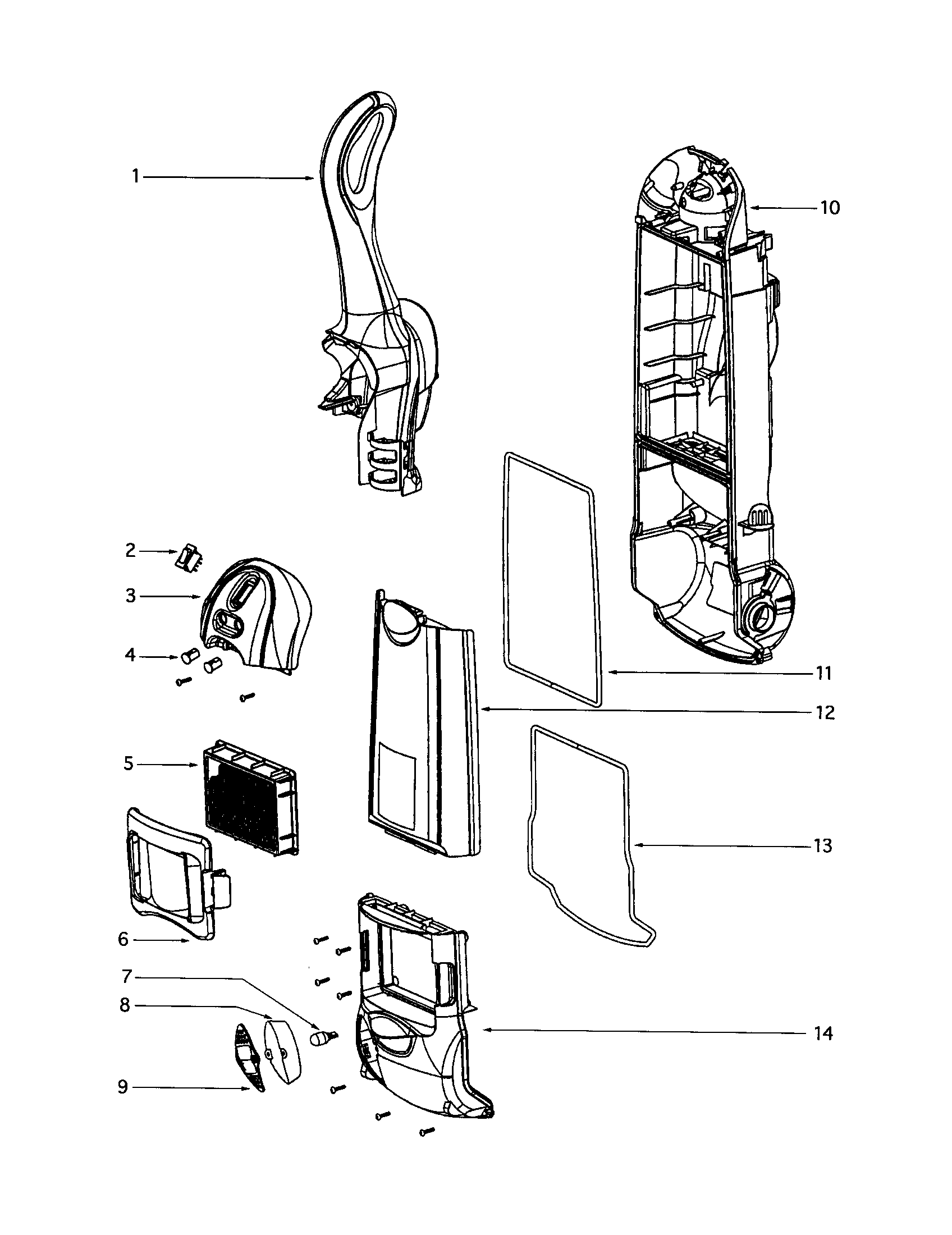

Motor cover diagram

Gasket

Part #70055

The manufacturer no longer makes this part, and there's no substitute part

Seal 70654
#5A

Hood diagram

Seal

Part #70654

The manufacturer no longer makes this part, and there's no substitute part

Valve 70062-1SV
#10

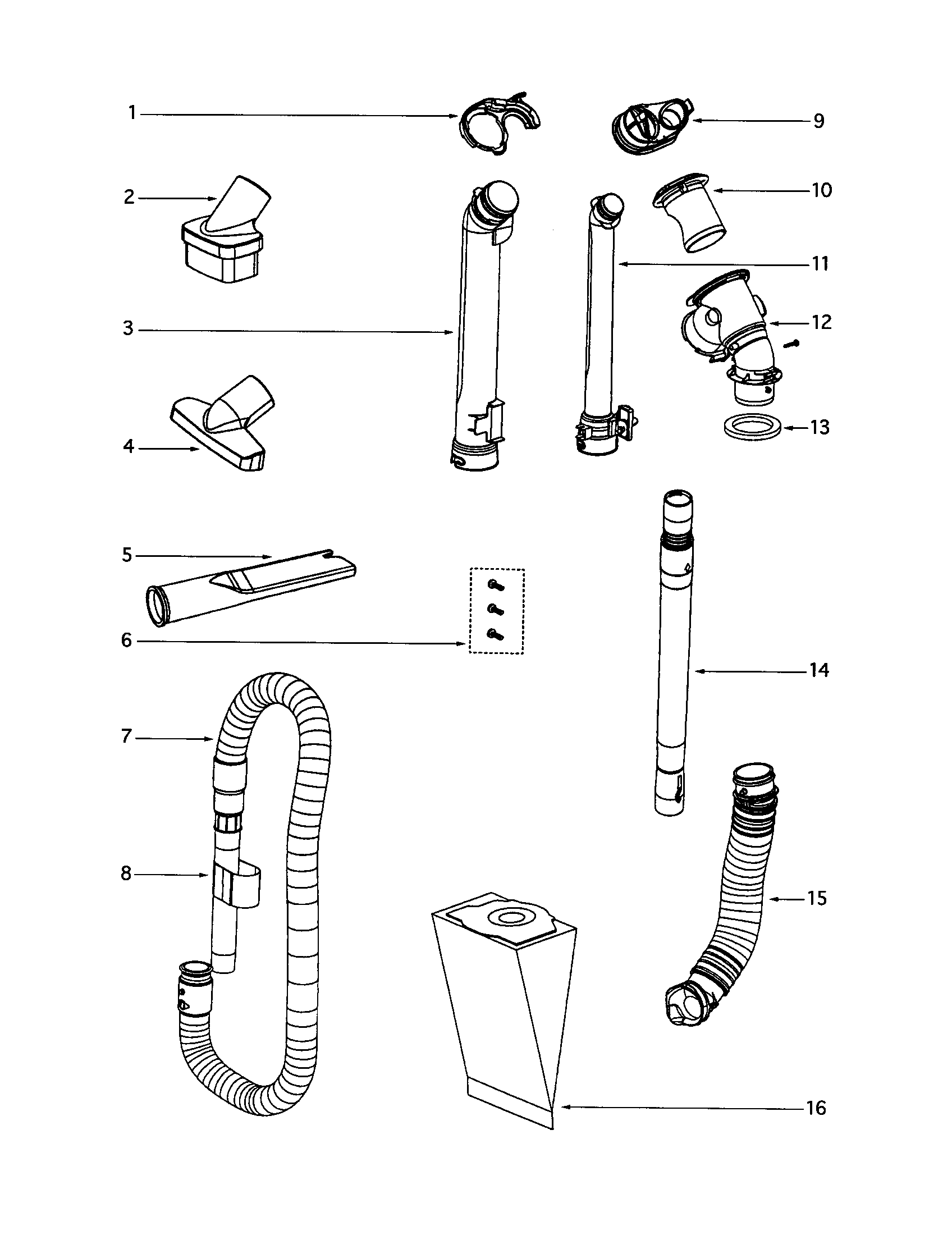

Hose diagram

Valve

Part #70062-1SV

The manufacturer no longer makes this part, and there's no substitute part

Lens 70088-1
#9

Motor cover diagram

Lens

Part #70088-1

The manufacturer no longer makes this part, and there's no substitute part

Front Axle 70022-1
#14B

Hood diagram

Front axle

Part #70022-1

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-1
#12

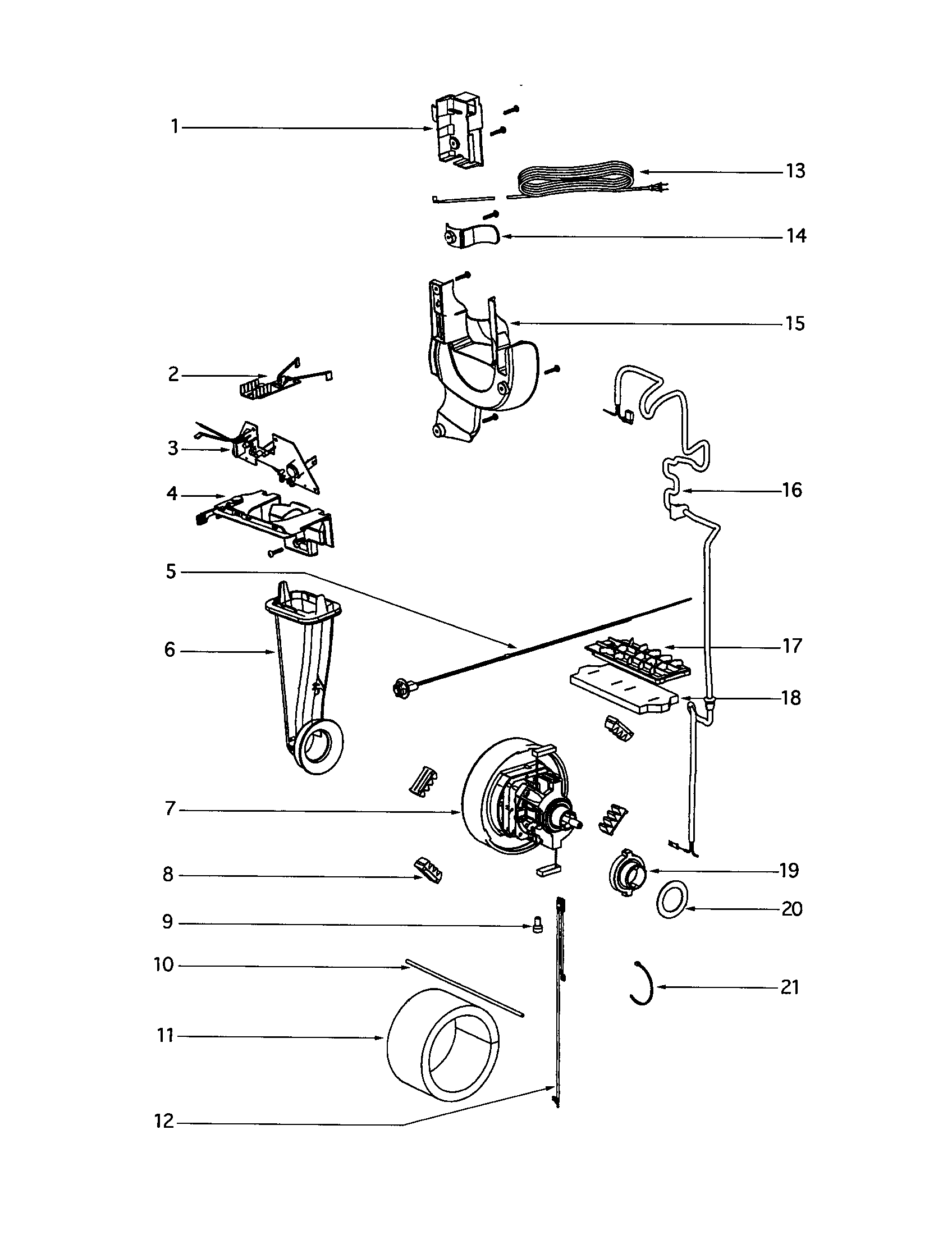

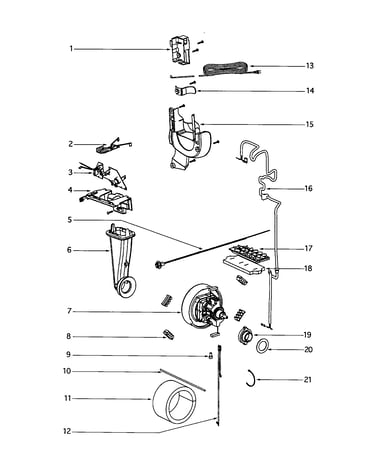

Motor assembly diagram

Thermostat

Part #39252-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Carpet Cleaner Screw, 10-pack 53238-27
#3

Hood diagram

Electrolux carpet cleaner screw, 10-pack

Part #53238-27

The manufacturer no longer makes this part, and there's no substitute part
