Model # A11ME8E1 Official Frigidaire room air conditioner - lf34088290

Here are the diagrams and repair parts for Official Frigidaire A11ME8E1 room air conditioner - lf34088290, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Rear Grille 3015951
#17

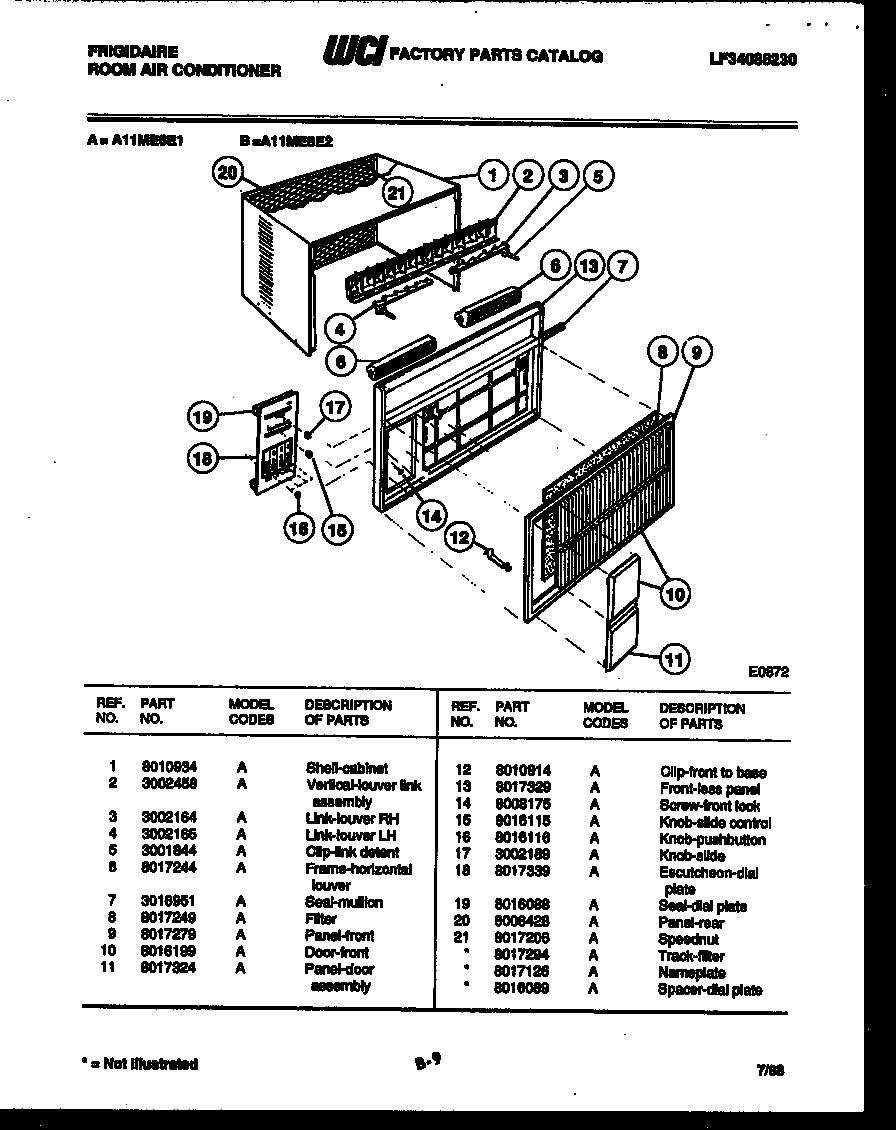

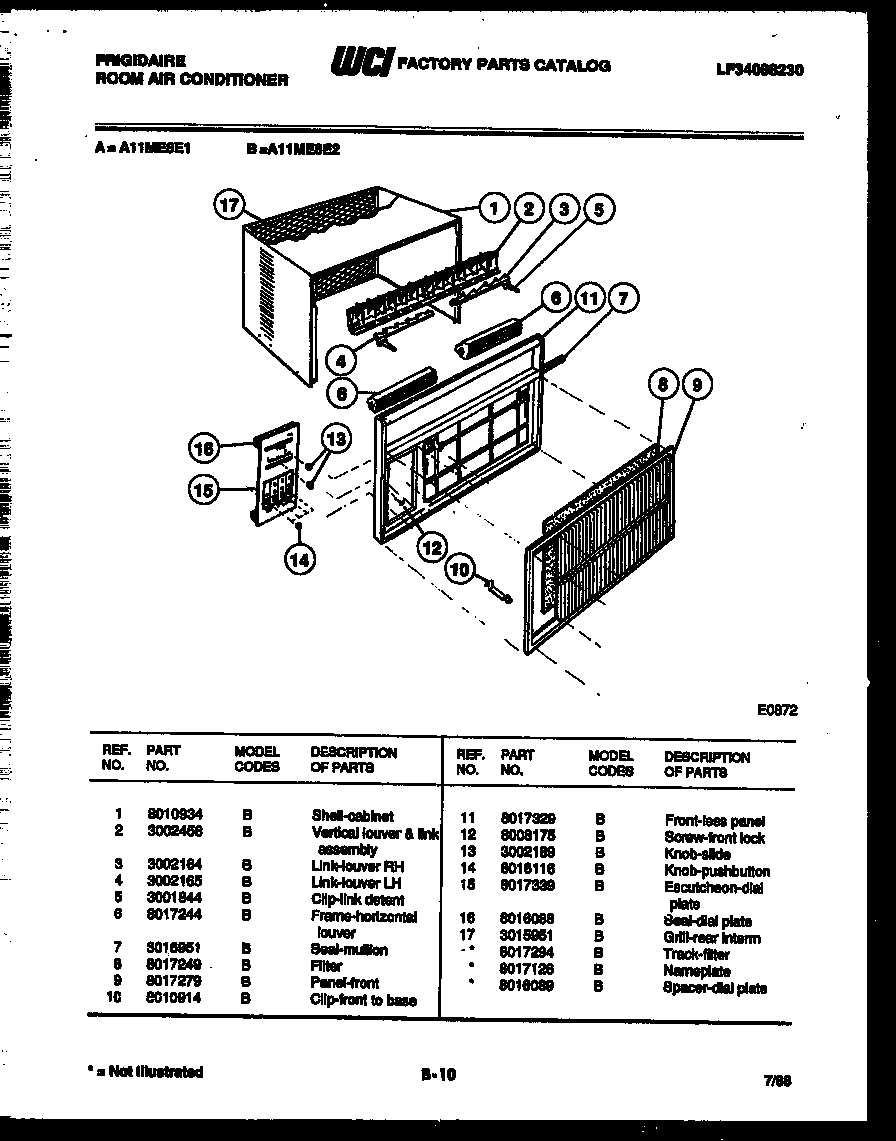

Cabinet parts diagram

Rear grille

Part #3015951

Replaced by #5308006428

?
Manufacturer substitution
This part replaces 3015951. Substitute parts can look different from the original.
$37.99
In Stock
115v Cord 3002367
#10

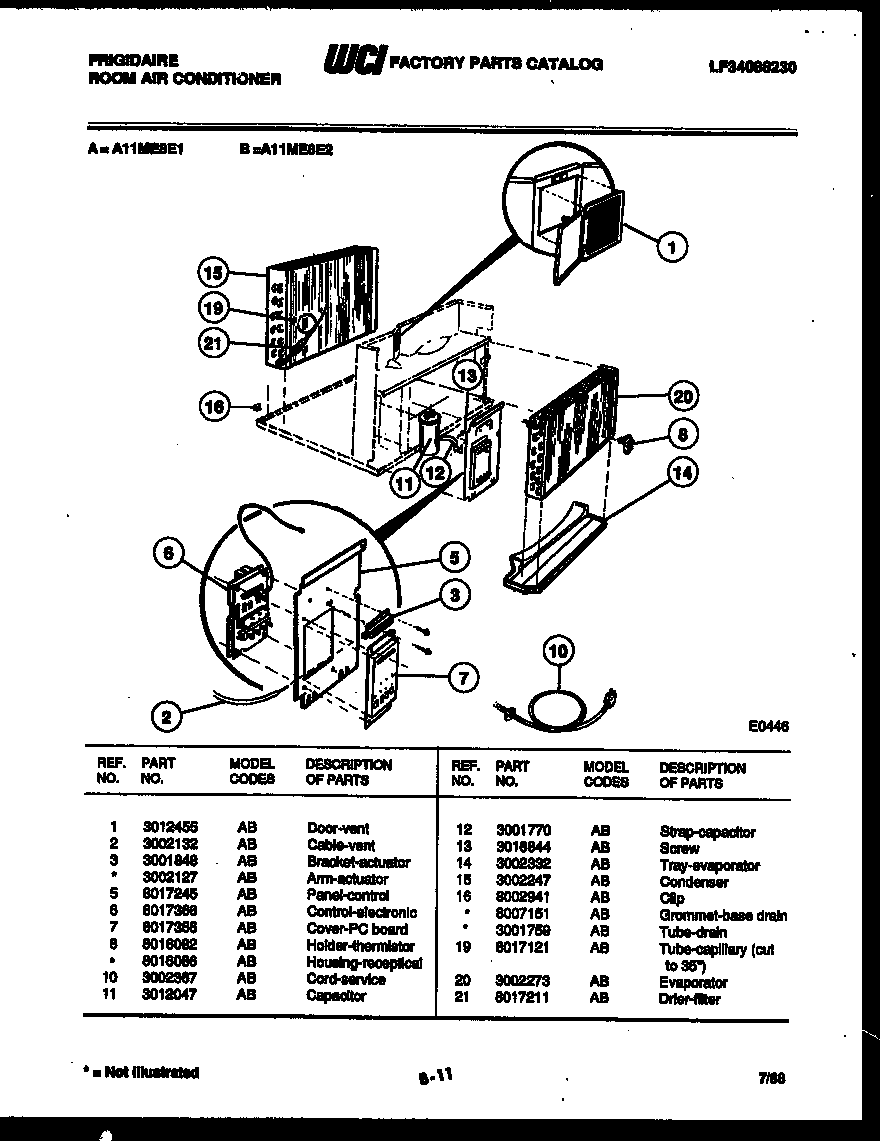

Unit parts diagram

115v cord

Part #3002367

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 3002367. Substitute parts can look different from the original.
$49.98
In Stock
Door 3012455
#1

Unit parts diagram

Door

Part #3012455

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 3012455. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Lock Nut 3002952
#3

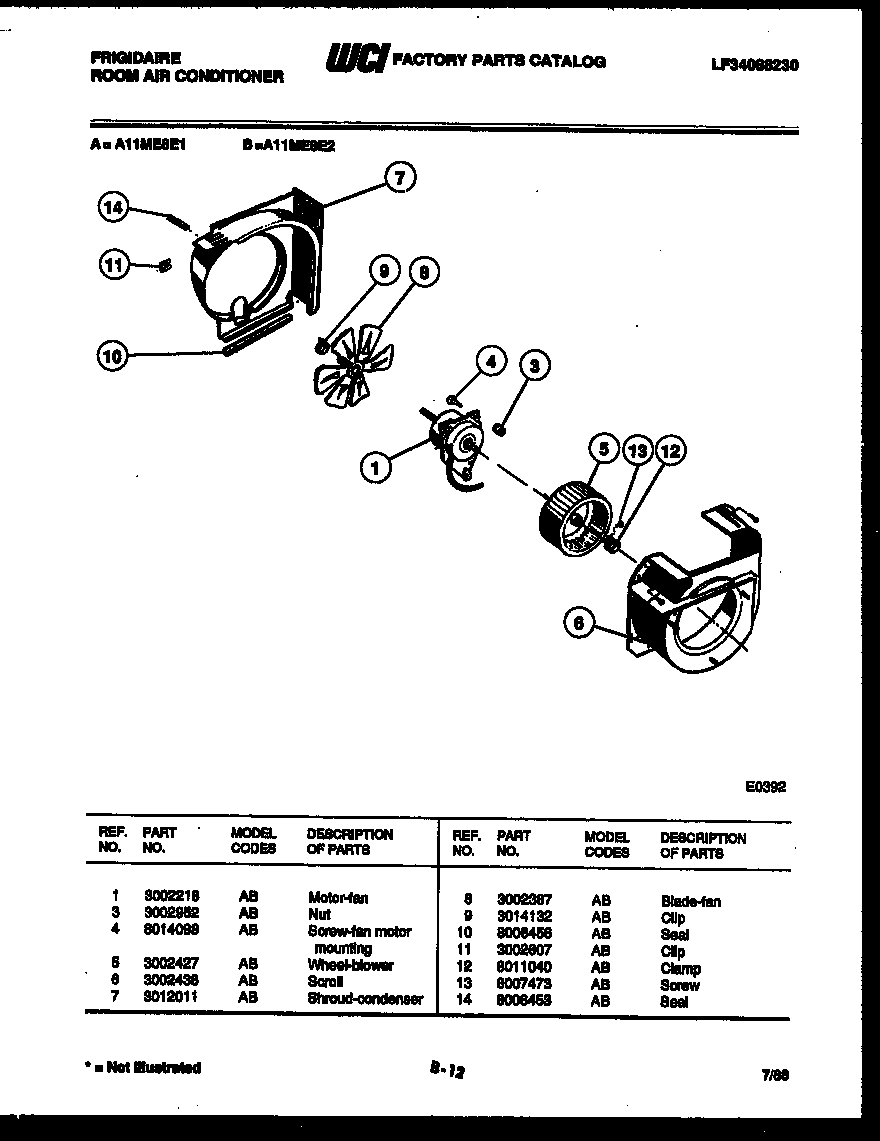

Air handling parts diagram

Lock nut

Part #3002952

Replaced by #5303002952

?
Manufacturer substitution
This part replaces 3002952. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Panel-door Assembly 8017324
#11

Cabinet parts diagram

Panel-door assembly

Part #8017324

The manufacturer no longer makes this part, and there's no substitute part

Screw 8007510
#15

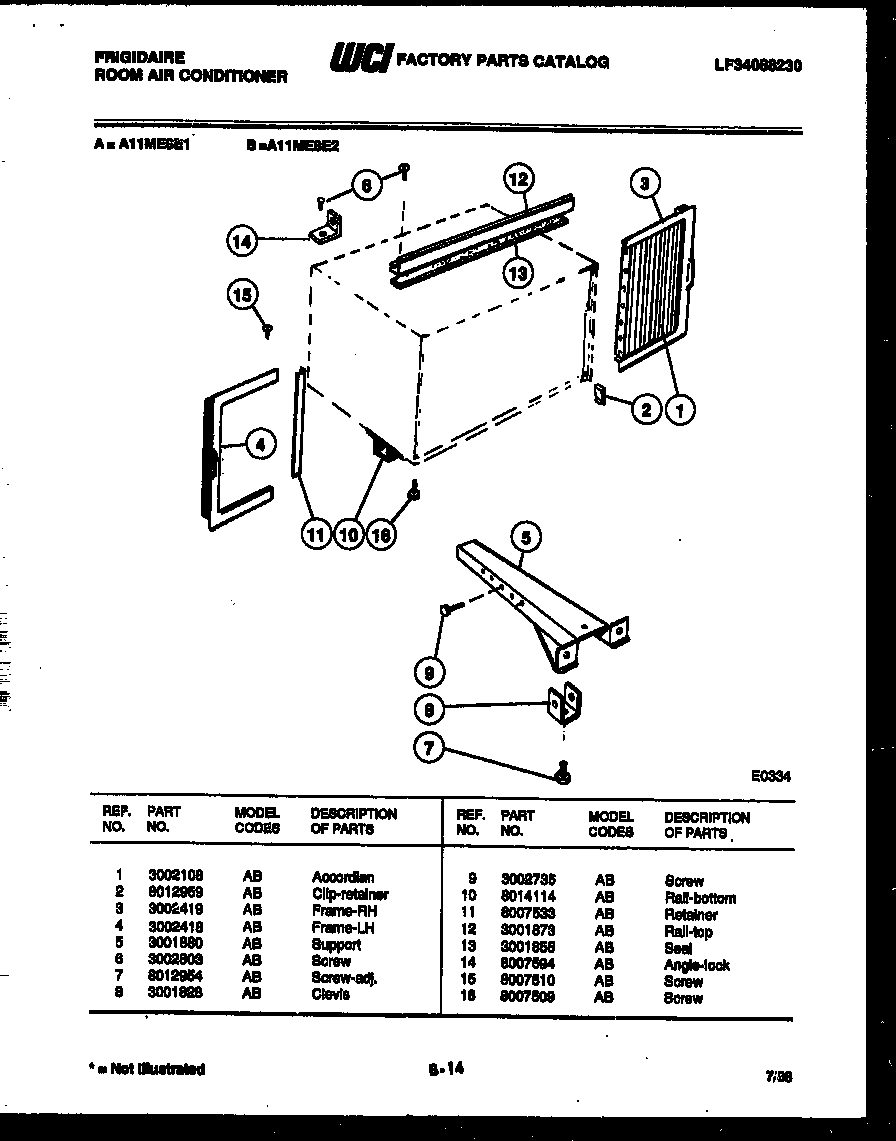

Window mounting parts diagram

Screw

Part #8007510

The manufacturer no longer makes this part, and there's no substitute part

Start Kit 8950087
#11

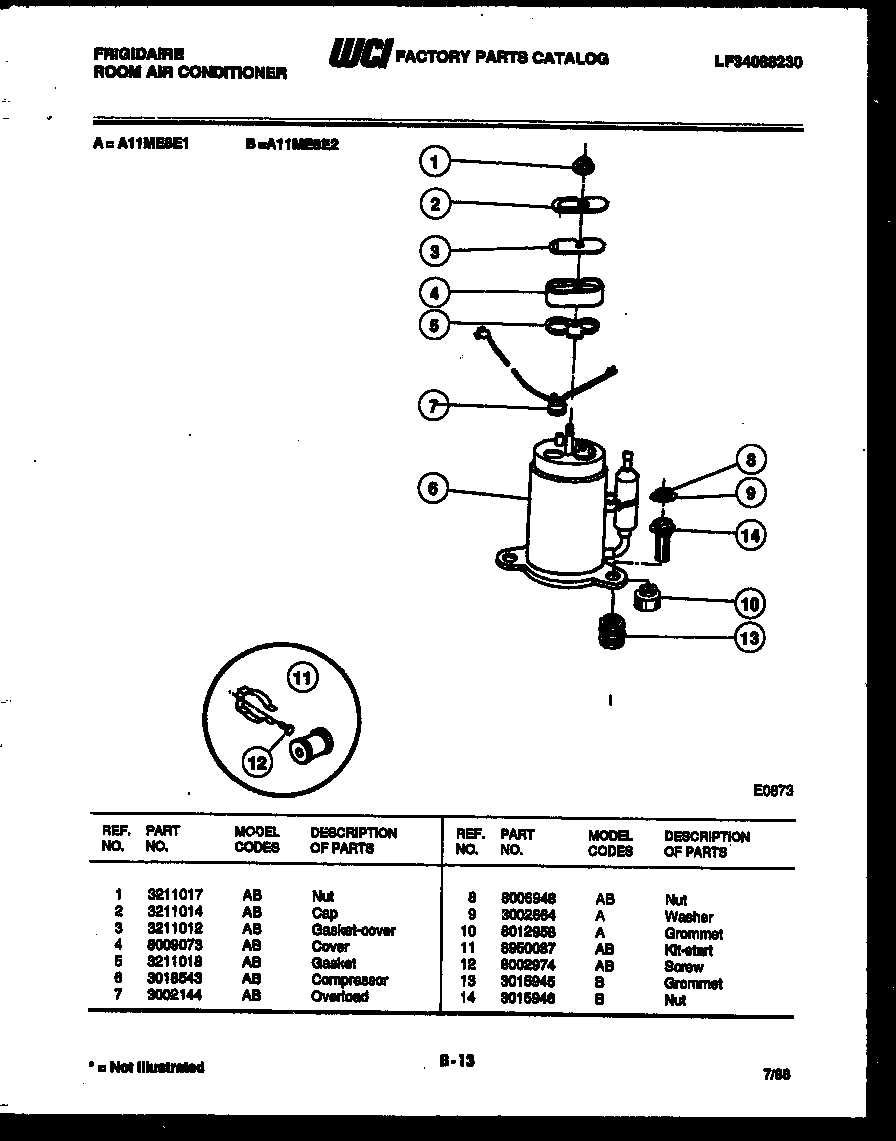

Compressor parts diagram

Start kit

Part #8950087

The manufacturer no longer makes this part, and there's no substitute part

Frame 3002419
#3

Window mounting parts diagram

Frame

Part #3002419

The manufacturer no longer makes this part, and there's no substitute part

Drier 8017211
#21

Unit parts diagram

Drier

Part #8017211

The manufacturer no longer makes this part, and there's no substitute part

Track-filter 8017294

#NI

All parts diagram

Track-filter

Part #8017294

The manufacturer no longer makes this part, and there's no substitute part
