Craftsman
Electric Leaf Blower

Model # 257796320 Official Craftsman electric blower

Here are the diagrams and repair parts for Official Craftsman 257796320 electric blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Mounting Board 3348
#23

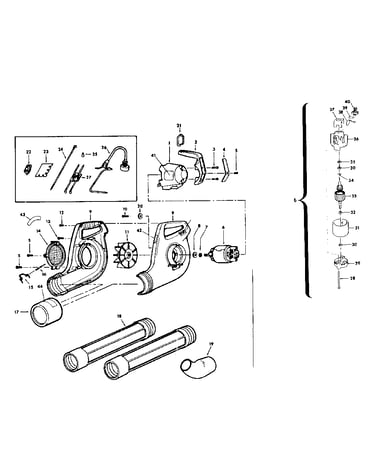

Replacement parts diagram

Mounting board

Part #3348

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Screw 1937
#5

Replacement parts diagram

Pan head screw

Part #1937

The manufacturer no longer makes this part, and there's no substitute part

Housing L.h./r.h. Q4917-2-26
#9

Replacement parts diagram

Housing l.h./r.h.

Part #Q4917-2-26

The manufacturer no longer makes this part, and there's no substitute part

Ring 2467
#34

Replacement parts diagram

Ring

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Spring 2280
#39

Replacement parts diagram

Spring

Part #2280

The manufacturer no longer makes this part, and there's no substitute part

Curved Nozzle 3734-05
#19

Replacement parts diagram

Curved nozzle

Part #3734-05

The manufacturer no longer makes this part, and there's no substitute part

Connector 561
#25

Replacement parts diagram

Connector

Part #561

The manufacturer no longer makes this part, and there's no substitute part

Cover 3196-0-28
#1

Replacement parts diagram

Cover

Part #3196-0-28

The manufacturer no longer makes this part, and there's no substitute part

Impeller Assembly 3983-0-15
#11

Replacement parts diagram

Impeller assembly

Part #3983-0-15

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 747-11
#7

Replacement parts diagram

Retaining ring

Part #747-11

The manufacturer no longer makes this part, and there's no substitute part
