Model # 2581049490 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581049490 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Shelf 10711-139
#76

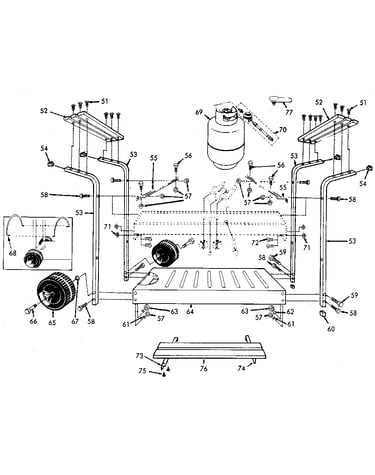

Cart diagram

Shelf

Part #10711-139

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12280
#75

Cart diagram

Screw

Part #Y-12280

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin STD560907
#17

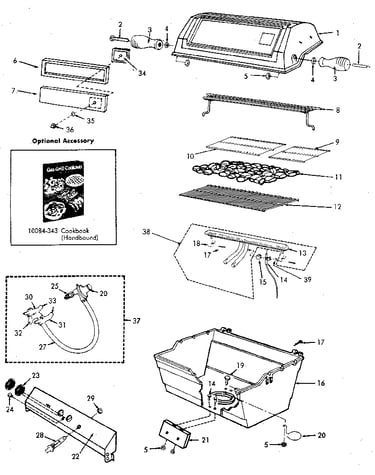

Grill and burner section diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Grill 10909-126
#16

Grill and burner section diagram

Grill

Part #10909-126

The manufacturer no longer makes this part, and there's no substitute part

Retainer 10401-25-1
#6

Grill and burner section diagram

Retainer

Part #10401-25-1

The manufacturer no longer makes this part, and there's no substitute part

Glass 10156-44
#7

Grill and burner section diagram

Glass

Part #10156-44

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut Y-12650
#29

Grill and burner section diagram

Pal nut

Part #Y-12650

The manufacturer no longer makes this part, and there's no substitute part

Knob 10472-53
#23

Grill and burner section diagram

Knob

Part #10472-53

The manufacturer no longer makes this part, and there's no substitute part

Hose 10111-44-1
#27

Grill and burner section diagram

Hose

Part #10111-44-1

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer Y-11211
#61

Cart diagram

Lock washer

Part #Y-11211

The manufacturer no longer makes this part, and there's no substitute part
