Model # 580323010 Official Craftsman 1250-watt portable alternator

Here are the diagrams and repair parts for Official Craftsman 580323010 1250-watt portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

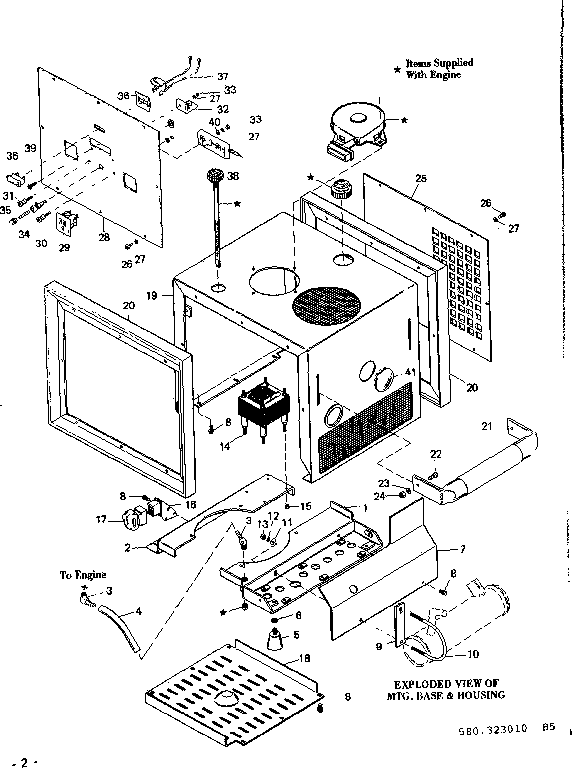

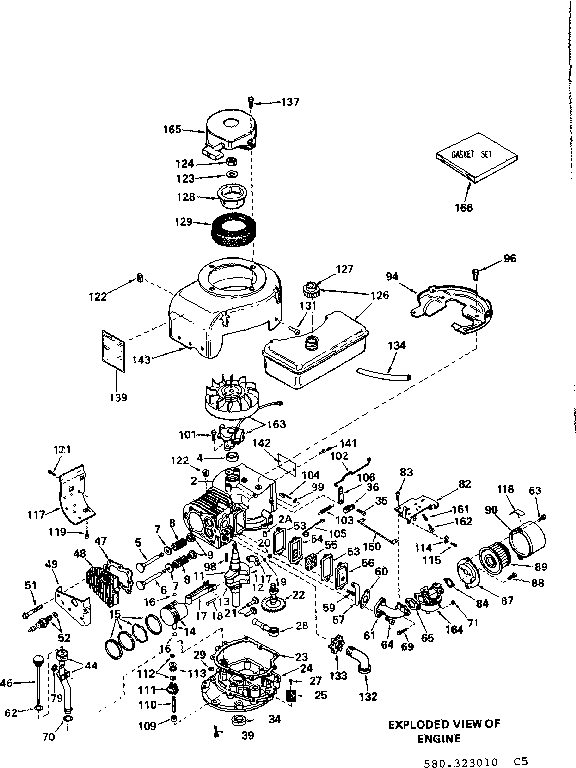

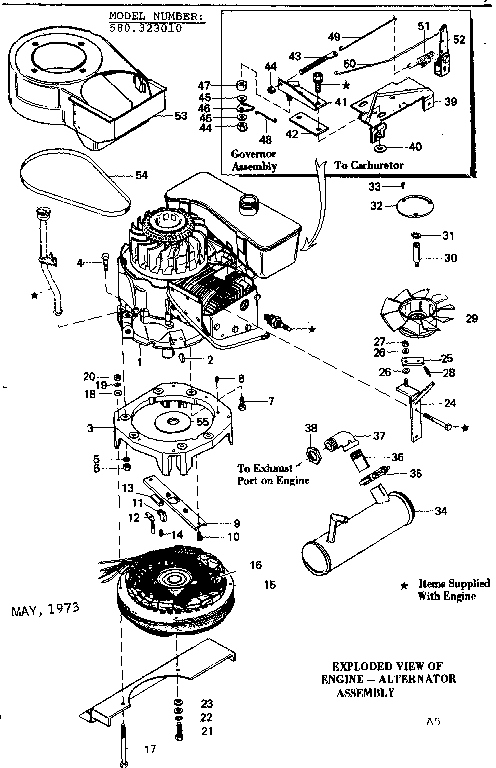

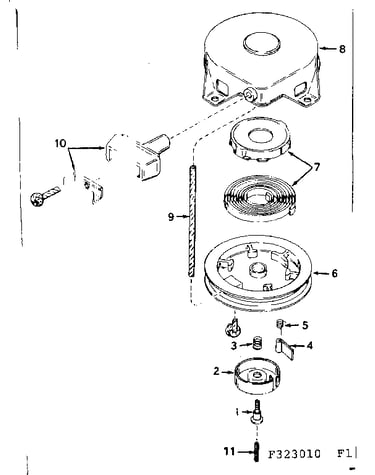

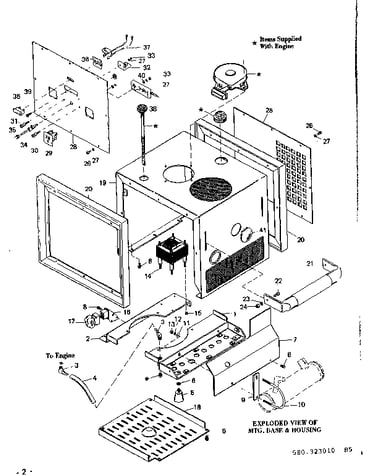

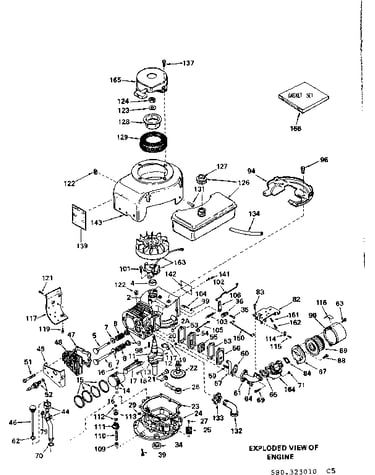

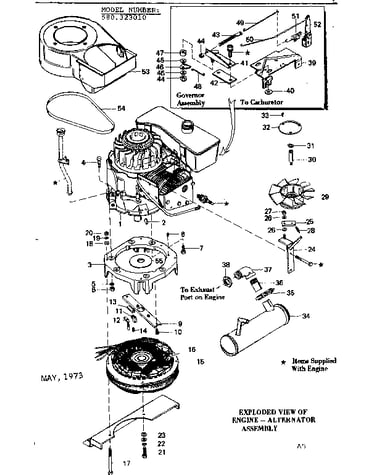

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |
Inlet Needle 631021L
#12

Carburetor diagram

Inlet needle

Part #631021L

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021L. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.50 |
10% OFF Phone Price : $10.50
In Stock
Gasket 631028L
#25

Carburetor diagram

Gasket

Part #631028L

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631028L. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.50 |
10% OFF Phone Price : $10.50
In Stock
Gasket 27110L
#21

Carburetor diagram

Gasket

Part #27110L

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110L. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 631023L
#14

Carburetor diagram

Float

Part #631023L

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023L. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Element 28424L
#55

Engine diagram

Element

Part #28424L

Replaced by #28424

?
Manufacturer substitution
This part replaces 28424L. Substitute parts can look different from the original.
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Gasket 27554L
#18

Carburetor diagram

Gasket

Part #27554L

Replaced by #27554

?
Manufacturer substitution
This part replaces 27554L. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Tube 27627L
#57

Engine diagram

Tube

Part #27627L

Replaced by #35350

?
Manufacturer substitution
This part replaces 27627L. Substitute parts can look different from the original.
This item is not returnable
$7.26
In Stock
Gear Assembly 30591L
#111

Engine diagram

Gear assembly

Part #30591L

Replaced by #30591

?
Manufacturer substitution
This part replaces 30591L. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Shaft 631615L
#1

Carburetor diagram

Shaft

Part #631615L

Replaced by #631615

?
Manufacturer substitution
This part replaces 631615L. Substitute parts can look different from the original.
This item is not returnable
$10.29 |
16% OFF Phone Price : $12.29
In Stock
Spool 30588AL
#113

Engine diagram

Spool

Part #30588AL

Replaced by #30588A

?
Manufacturer substitution
This part replaces 30588AL. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
