Whirlpool
Central Air Conditioner

Model # 3PACH21DD0 Official Whirlpool through-the-wall air conditioner

Here are the diagrams and repair parts for Official Whirlpool 3PACH21DD0 through-the-wall air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

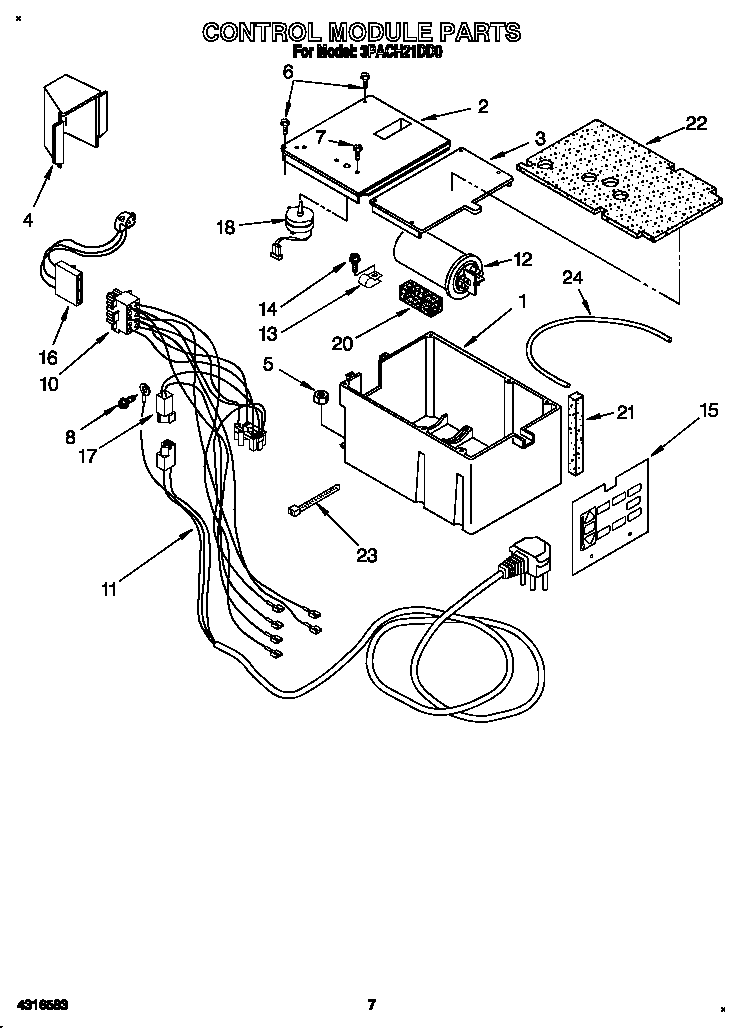

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Cement 279368
#10

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve 876764
#6A

Optional diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Valve Kit 978025
#6B

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Sealer 212643
#12

Optional diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Seal Strip 1180413
#33

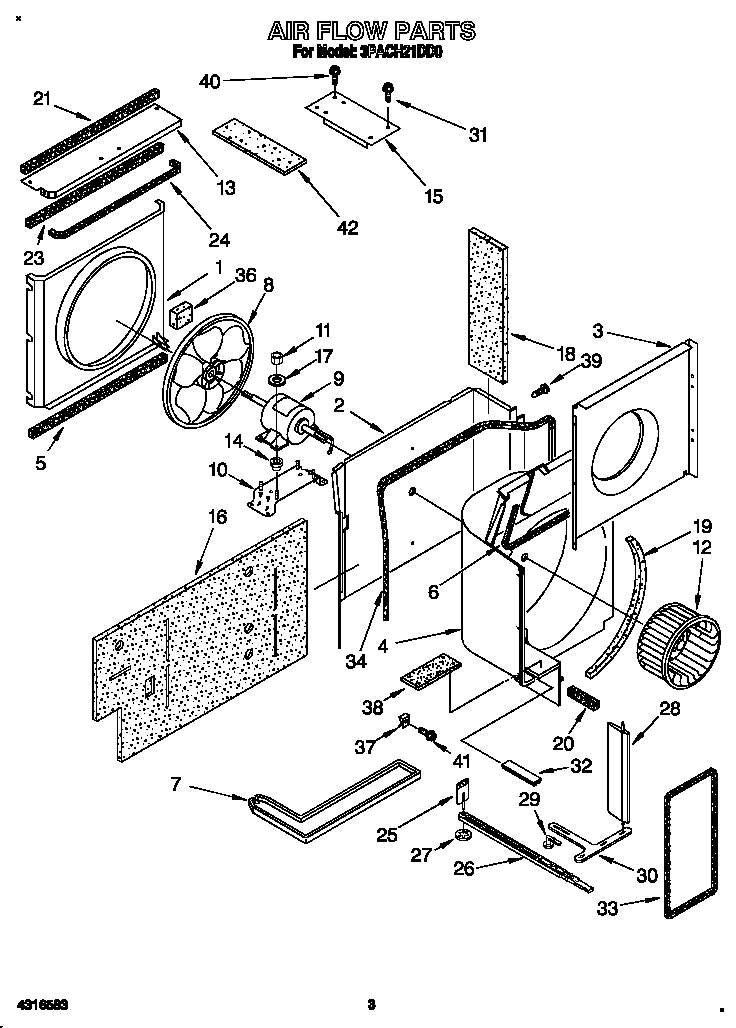

Air flow diagram

Seal strip

Part #1180413

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180413. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 1180964
#19

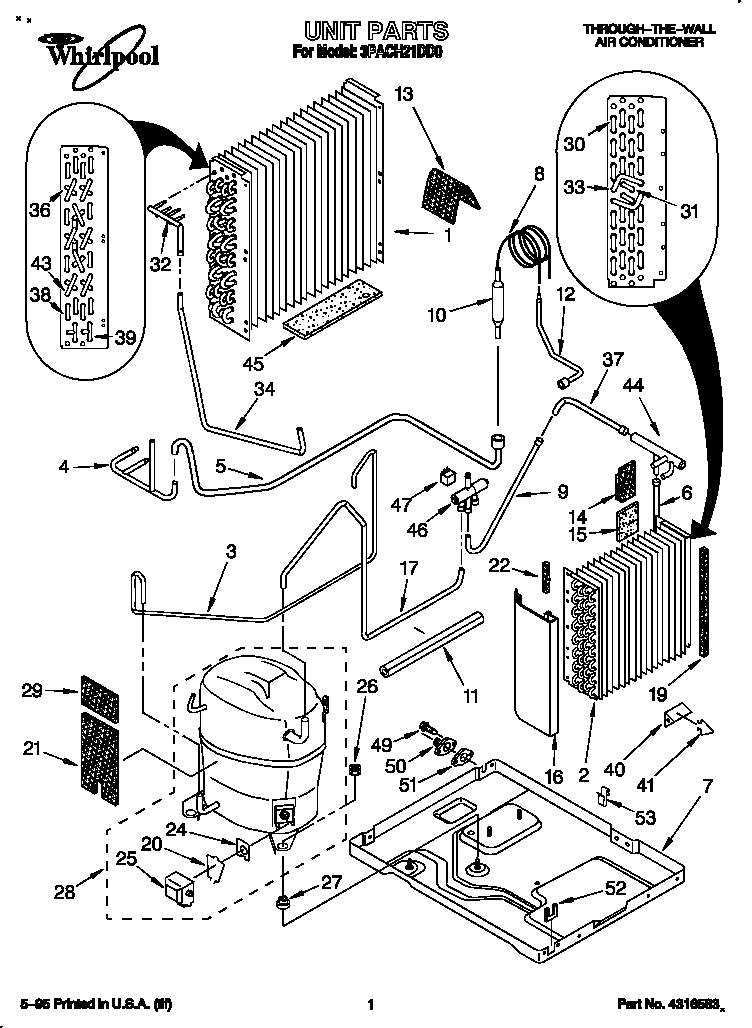

Unit diagram

Seal strip

Part #1180964

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180964. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 1180412
#6

Air flow diagram

Seal strip

Part #1180412

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180412. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 1181060
#34

Air flow diagram

Seal strip

Part #1181060

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1181060. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 1180679
#19

Air flow diagram

Seal strip

Part #1180679

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180679. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 1180460
#30A

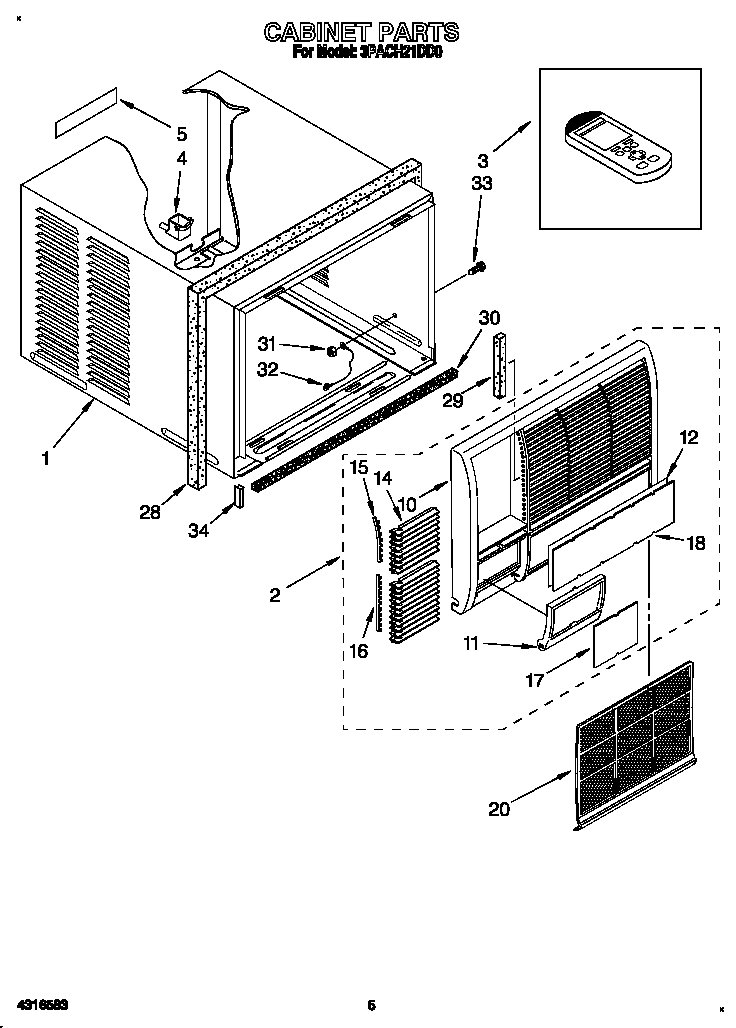

Cabinet diagram

Seal strip

Part #1180460

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180460. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
