Gibson
Room Air Conditioner

Model # AM12E4EVA Official Gibson room air conditioner - lg34088190

Here are the diagrams and repair parts for Official Gibson AM12E4EVA room air conditioner - lg34088190, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

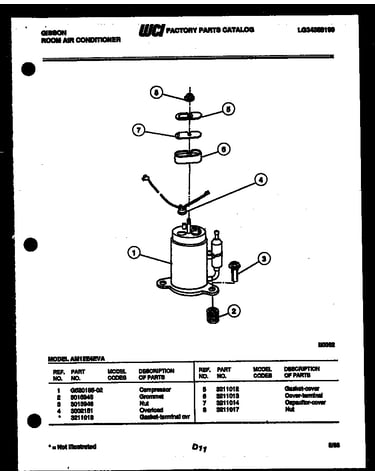

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Kelvinator Screw 3001802
#12

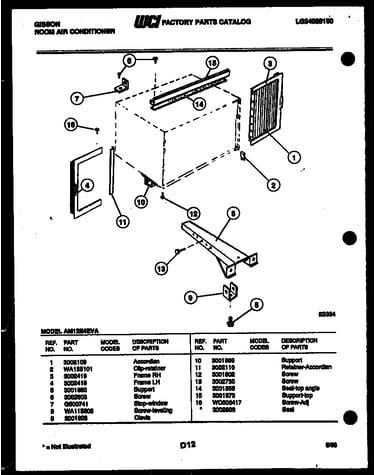

Cabinet and installation parts diagram

Kelvinator screw

Part #3001802

This item is not returnable
$2.16
In Stock
Rear Grille 3015951
#1A

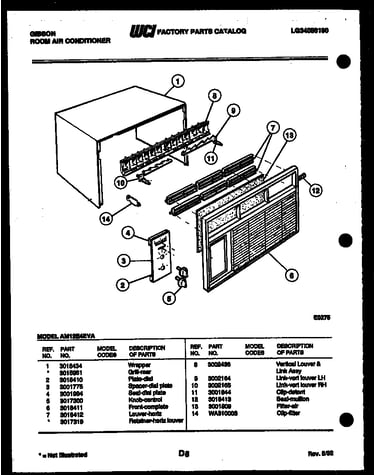

Cabinet parts diagram

Rear grille

Part #3015951

Replaced by #5308006428

?
Manufacturer substitution
This part replaces 3015951. Substitute parts can look different from the original.
$37.99
In Stock
Strainer 3002484
#2

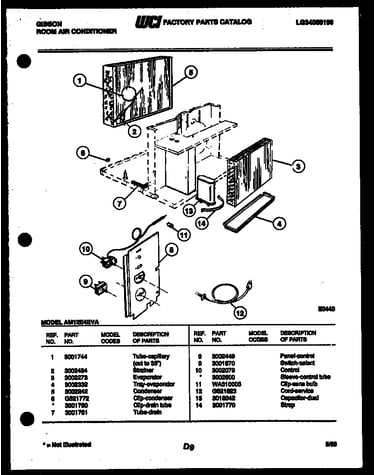

Electrical parts diagram

Strainer

Part #3002484

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3002484. Substitute parts can look different from the original.
$212.62
In Stock
Pan 3002332
#4

Electrical parts diagram

Pan

Part #3002332

The manufacturer no longer makes this part, and there's no substitute part

Seal 3018413
#12

Cabinet parts diagram

Seal

Part #3018413

The manufacturer no longer makes this part, and there's no substitute part

Retainer 3002110
#11

Cabinet and installation parts diagram

Retainer

Part #3002110

The manufacturer no longer makes this part, and there's no substitute part

Clip 3002607
#4A

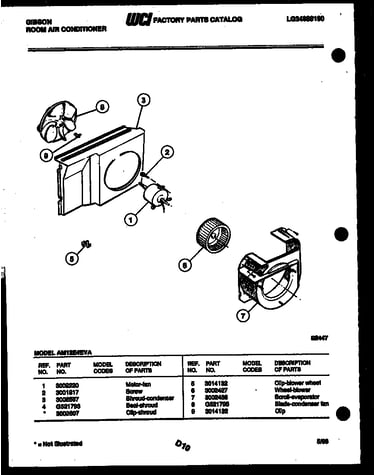

Air handling parts diagram

Clip

Part #3002607

The manufacturer no longer makes this part, and there's no substitute part

Panel 3002449
#8

Electrical parts diagram

Panel

Part #3002449

The manufacturer no longer makes this part, and there's no substitute part

Cord Electrical G521823
#12

Electrical parts diagram

Cord electrical

Part #G521823

The manufacturer no longer makes this part, and there's no substitute part

Rail 3001873
#15

Cabinet and installation parts diagram

Rail

Part #3001873

The manufacturer no longer makes this part, and there's no substitute part
