Model # NTC5050BFE1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTC5050BFE1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Trans 40 Va 1008782
#7

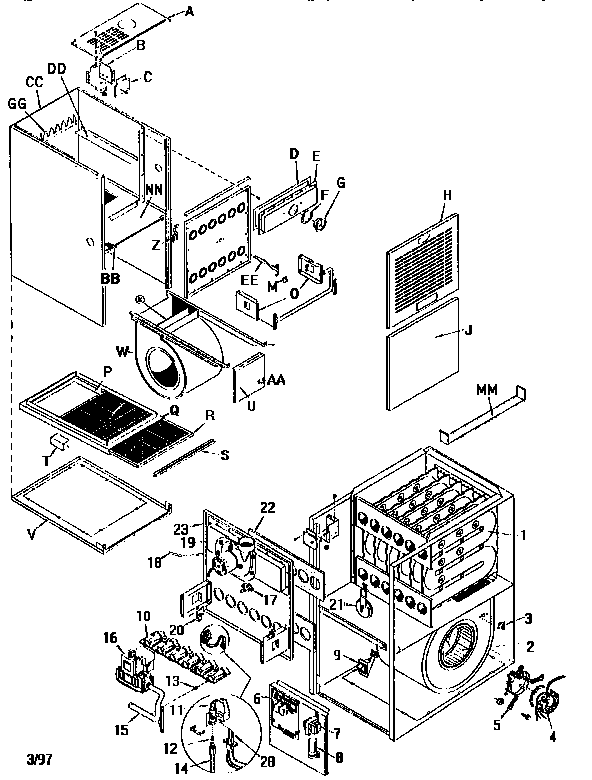

Unit parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Cap Rnrd 1094954
#8

Unit parts diagram

Cap rnrd

Part #1094954

Replaced by #12005

?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Valve 1009093
#16

Unit parts diagram

Valve

Part #1009093

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009093. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Limit Switch 1005549
#20

Unit parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Baffle 707010031
#DD

Unit parts diagram

Baffle

Part #707010031

$49.47
In Stock
Rail Galv Bl 57059
#BB

Unit parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Tubing 64930
#14

Unit parts diagram

Tubing

Part #64930

$77.80
In Stock
Arcoaire Gskt Htx Bnr 2480904
#22

Unit parts diagram

Arcoaire gskt htx bnr

Part #2480904

This item is not returnable
$3.37
In Stock
Clamp Capctr 1095020
#AA

Unit parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Furnace Burner 1009178
#10

Unit parts diagram

Furnace burner

Part #1009178

$109.11
In Stock
