Craftsman
Lawn Tractor Attachment

Model # 917337231 Official Craftsman high wheel kit

Here are the diagrams and repair parts for Official Craftsman 917337231 high wheel kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Wave Washer 57143
#3

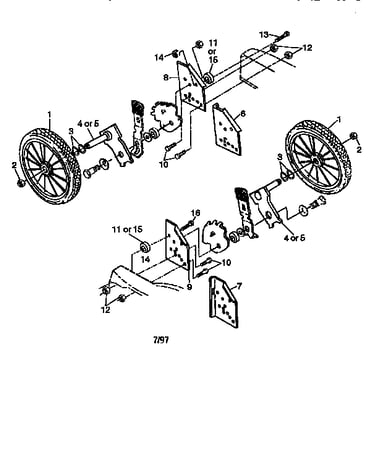

High wheel kit diagram

Wave washer

Part #57143

Replaced by #532428450

?
Manufacturer substitution
This part replaces 57143. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 751592
#12

High wheel kit diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 83923
#2

High wheel kit diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Bracket, Right 700166X417
#6

High wheel kit diagram

Bracket, right

Part #700166X417

The manufacturer no longer makes this part, and there's no substitute part

Sheet.inst.3 144598
#17

High wheel kit diagram

Sheet.inst.3

Part #144598

The manufacturer no longer makes this part, and there's no substitute part

Nut 63124
#14

High wheel kit diagram

Nut

Part #63124

The manufacturer no longer makes this part, and there's no substitute part

Axle Arm 750913X004
#4

High wheel kit diagram

Axle arm

Part #750913X004

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Left 700168X417
#7

High wheel kit diagram

Bracket, left

Part #700168X417

The manufacturer no longer makes this part, and there's no substitute part

Screw 50884
#13

High wheel kit diagram

Screw

Part #50884

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support 700172X417
#9

High wheel kit diagram

Bracket support

Part #700172X417

The manufacturer no longer makes this part, and there's no substitute part
