DeWalt
Miter Saw

Model # DW708TY1 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt DW708TY1 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

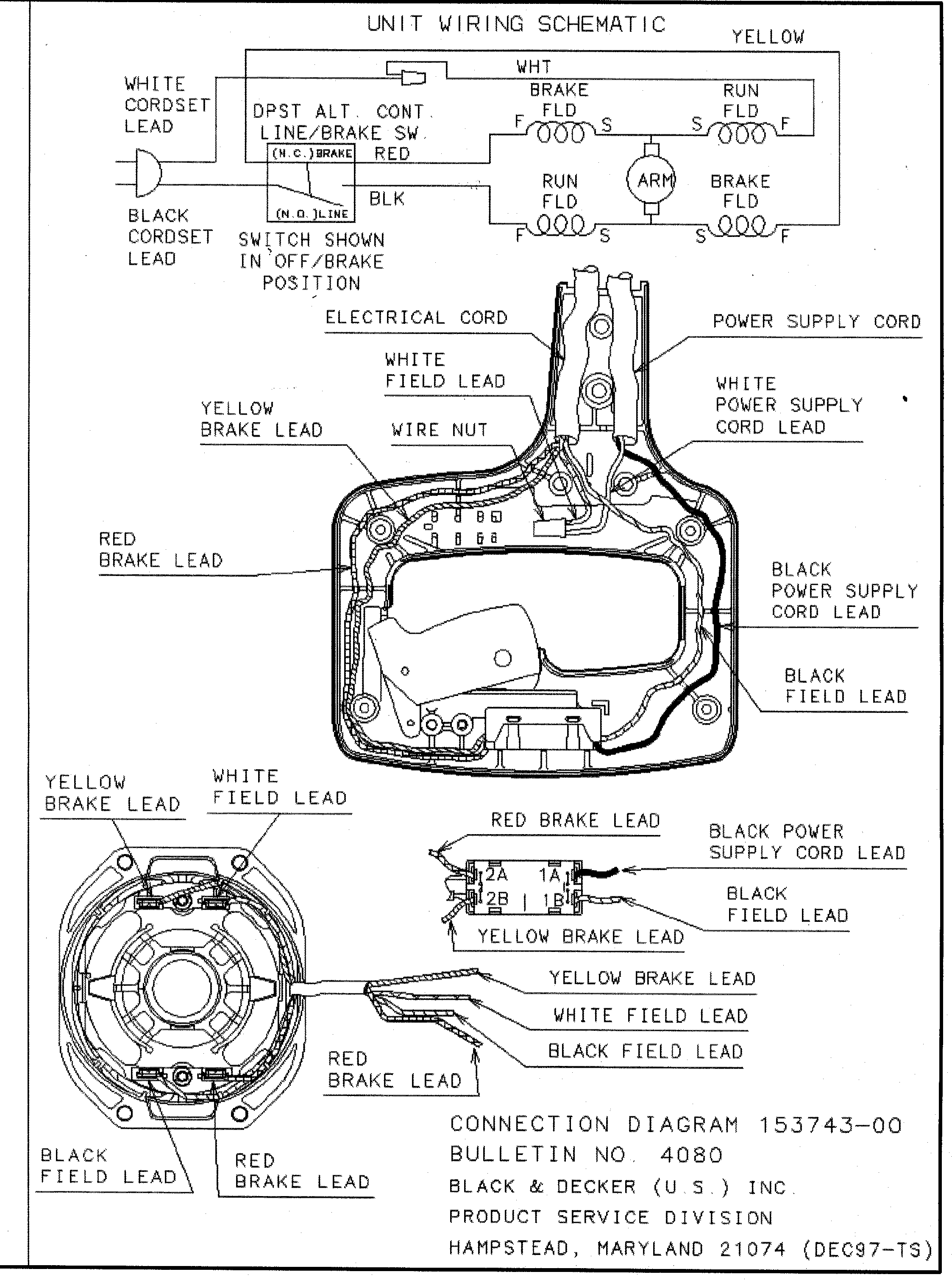

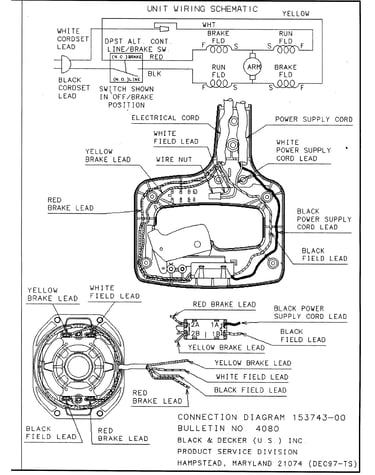

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Wiper 153590-00
#124

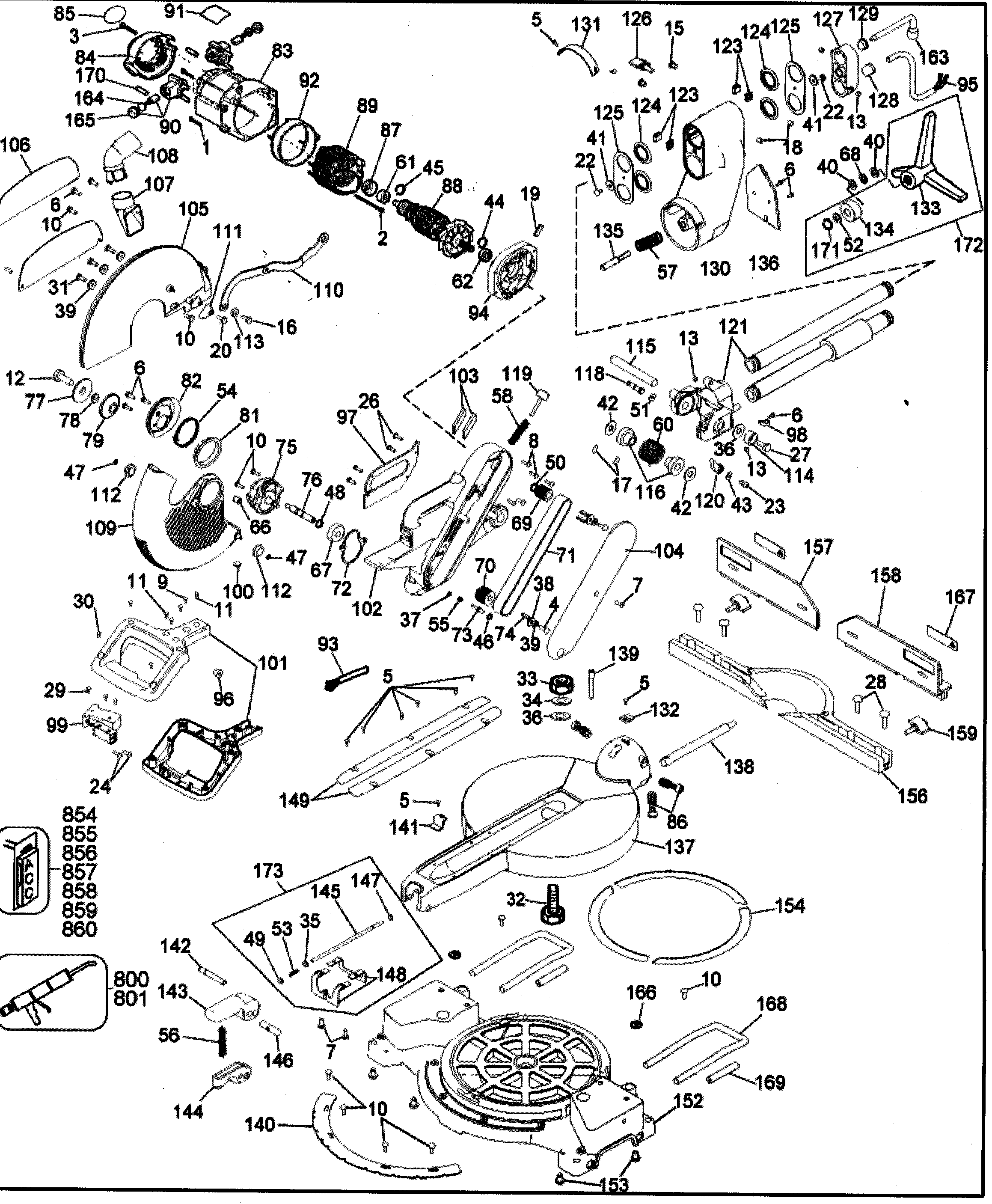

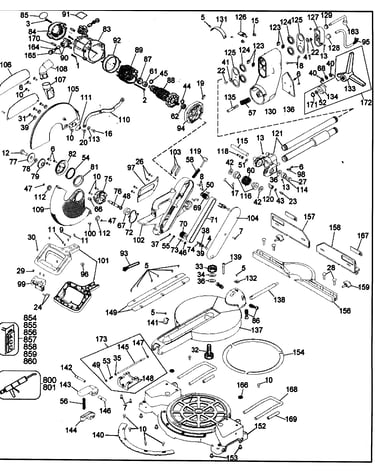

Saw diagram

Wiper

Part #153590-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 153596-01
#60

Saw diagram

Spring

Part #153596-01

The manufacturer no longer makes this part, and there's no substitute part

12" Blade DW3126
#854

Saw diagram

12" blade

Part #DW3126

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Retainer Ring 144803-00
#44

Saw diagram

Power tool retainer ring

Part #144803-00

The manufacturer no longer makes this part, and there's no substitute part

Pin 153640-00
#139

Saw diagram

Pin

Part #153640-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 153792-00
#34

Saw diagram

Washer

Part #153792-00

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 150075-00
#17

Saw diagram

Set screw

Part #150075-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bumper 145318-00
#111

Saw diagram

Craftsman bumper

Part #145318-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Drive Pulley Key 153638-00
#74

Saw diagram

Miter saw drive pulley key

Part #153638-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, 5 X 16-mm 330045-14
#7

Saw diagram

Power tool screw, 5 x 16-mm

Part #330045-14

The manufacturer no longer makes this part, and there's no substitute part
