Model # H35-45495M Official Tecumseh 4-cycle engine

Here are the diagrams and repair parts for Official Tecumseh H35-45495M 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

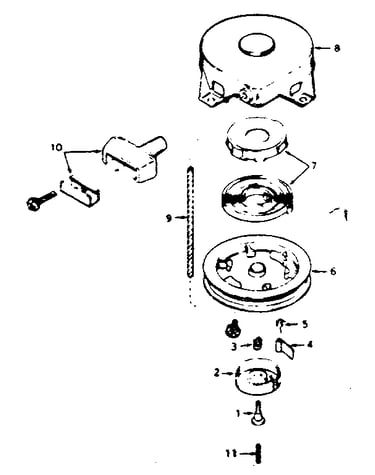

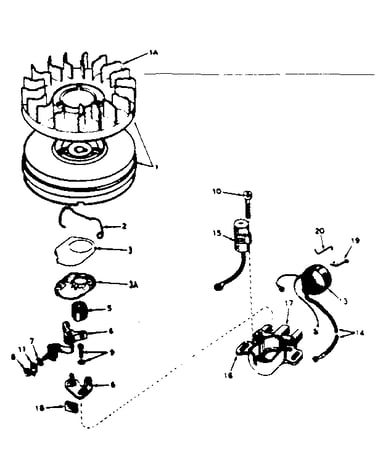

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Gasket 27110
#21

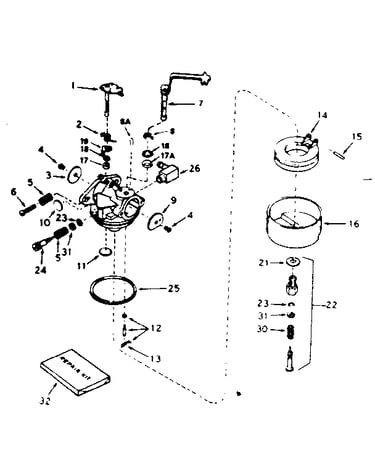

Carburetor no. 631921 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#25

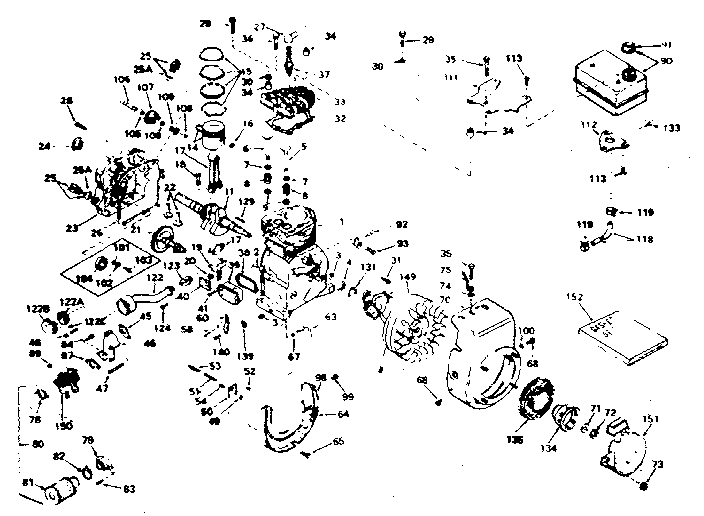

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Float Bowl 631867
#16

Carburetor no. 631921 diagram

Float bowl

Part #631867

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 631279A
#2

Carburetor no. 631921 diagram

Spring retainer

Part #631279A

The manufacturer no longer makes this part, and there's no substitute part

Gas Tank 33120
#90

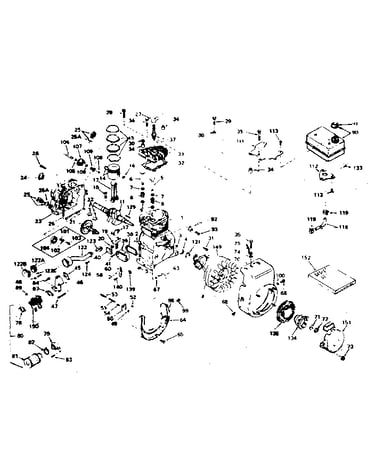

Basic engine diagram

Gas tank

Part #33120

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#139

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Link 31858
#58

Basic engine diagram

Link

Part #31858

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8A

Carburetor no. 631921 diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Plug 631027
#11

Carburetor no. 631921 diagram

Plug

Part #631027

The manufacturer no longer makes this part, and there's no substitute part
