Model # HREX04981 Official HealthRider rc150 exercise cycle

Here are the diagrams and repair parts for Official HealthRider HREX04981 rc150 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Proform Screw,abhwhs 013450
#21

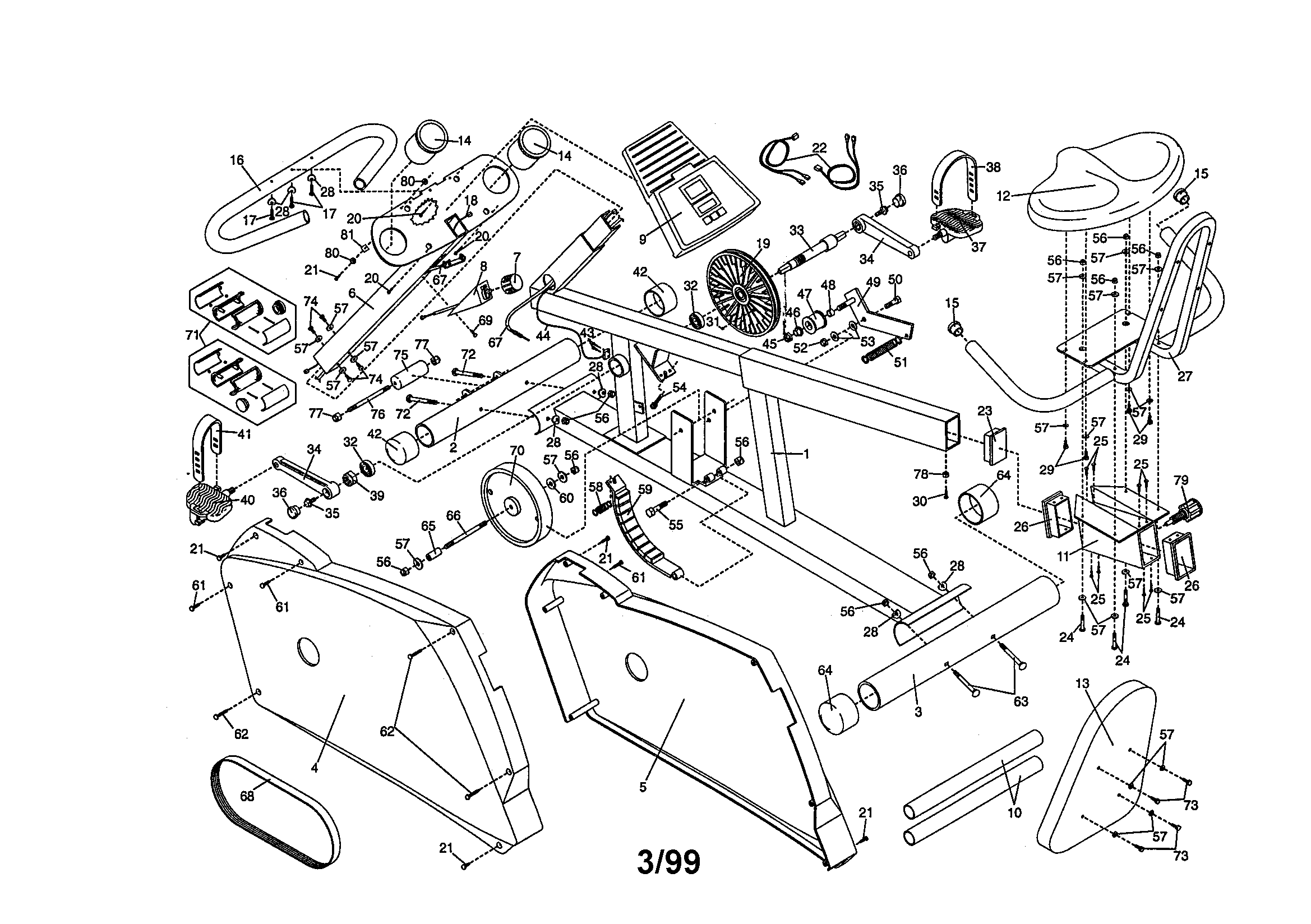

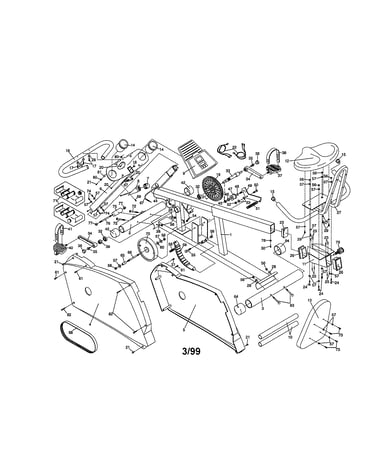

Unit parts diagram

Proform screw,abhwhs

Part #013450

This item is not returnable
$2.16
In Stock
Screw,abphfh 129851
#20

Unit parts diagram

Screw,abphfh

Part #129851

This item is not returnable
$2.16
In Stock
Image Side Cvr Scr 128263
#62

Unit parts diagram

Image side cvr scr

Part #128263

This item is not returnable
$2.16
In Stock
Black & Decker Motor Tension Bolt, 3/8 X 1-in 145006
#50

Unit parts diagram

Black & decker motor tension bolt, 3/8 x 1-in

Part #145006

This item is not returnable
$2.16
In Stock
Warning Decal 148332

#NI

All parts diagram

Warning decal

Part #148332

This item is not returnable
$3.49
In Stock
Tcd,knob/cbl 153758
#8

Unit parts diagram

Tcd,knob/cbl

Part #153758

$33.99
In Stock
Magnet,rnd,1 107094
#31

Unit parts diagram

Magnet,rnd,1

Part #107094

This item is not returnable
$2.16
In Stock
Stblzr,frt 153753
#2

Unit parts diagram

Stblzr,frt

Part #153753

$15.49
In Stock
Image Screw,abphfh 139968
#30

Unit parts diagram

Image screw,abphfh

Part #139968

This item is not returnable
$2.16
In Stock
Healthrider Om,hrex04981 153060

#NI

All parts diagram

Healthrider om,hrex04981

Part #153060

This item is not returnable
$2.99
In Stock
