Countertop Microwave

Model # R-5A97 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-5A97 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

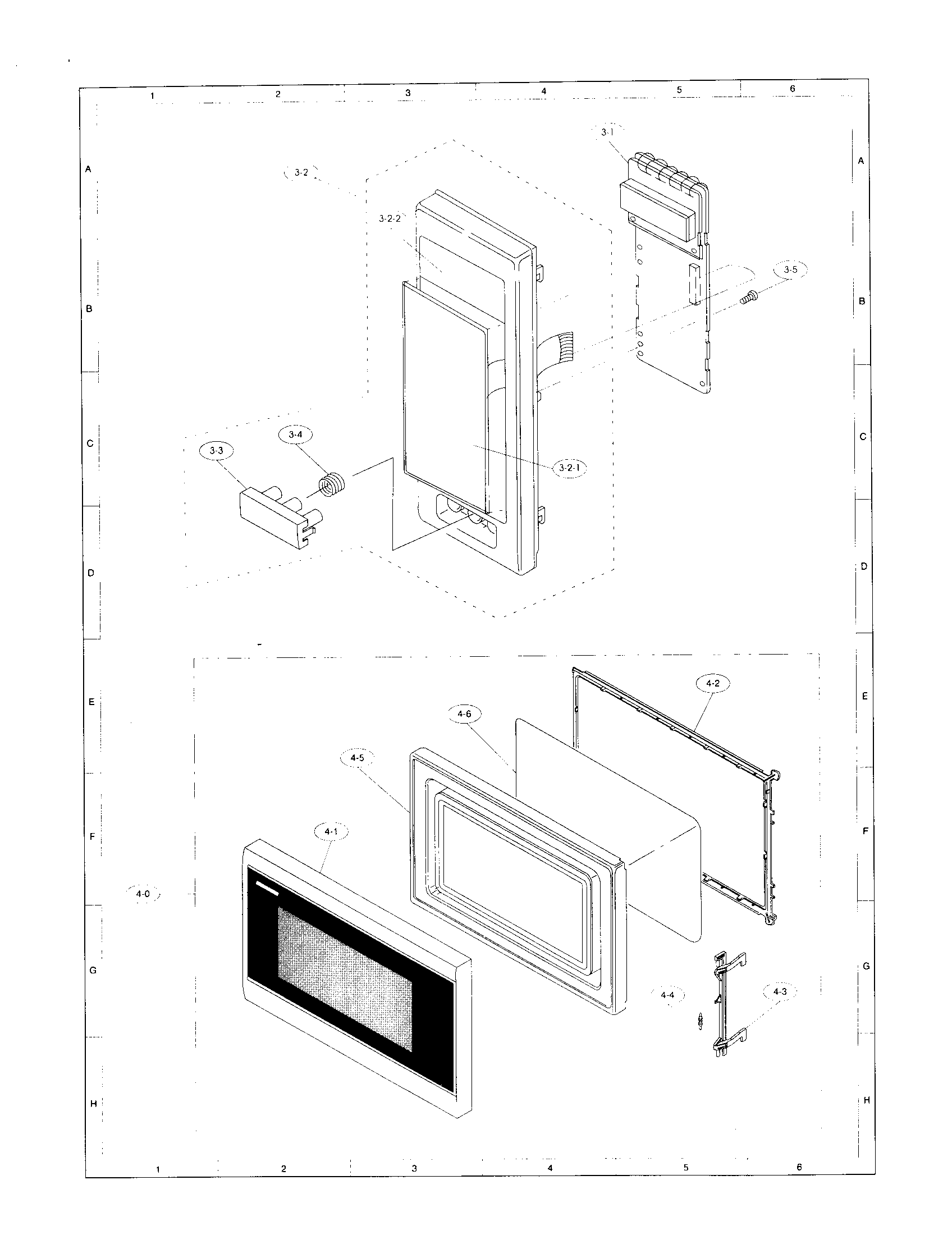

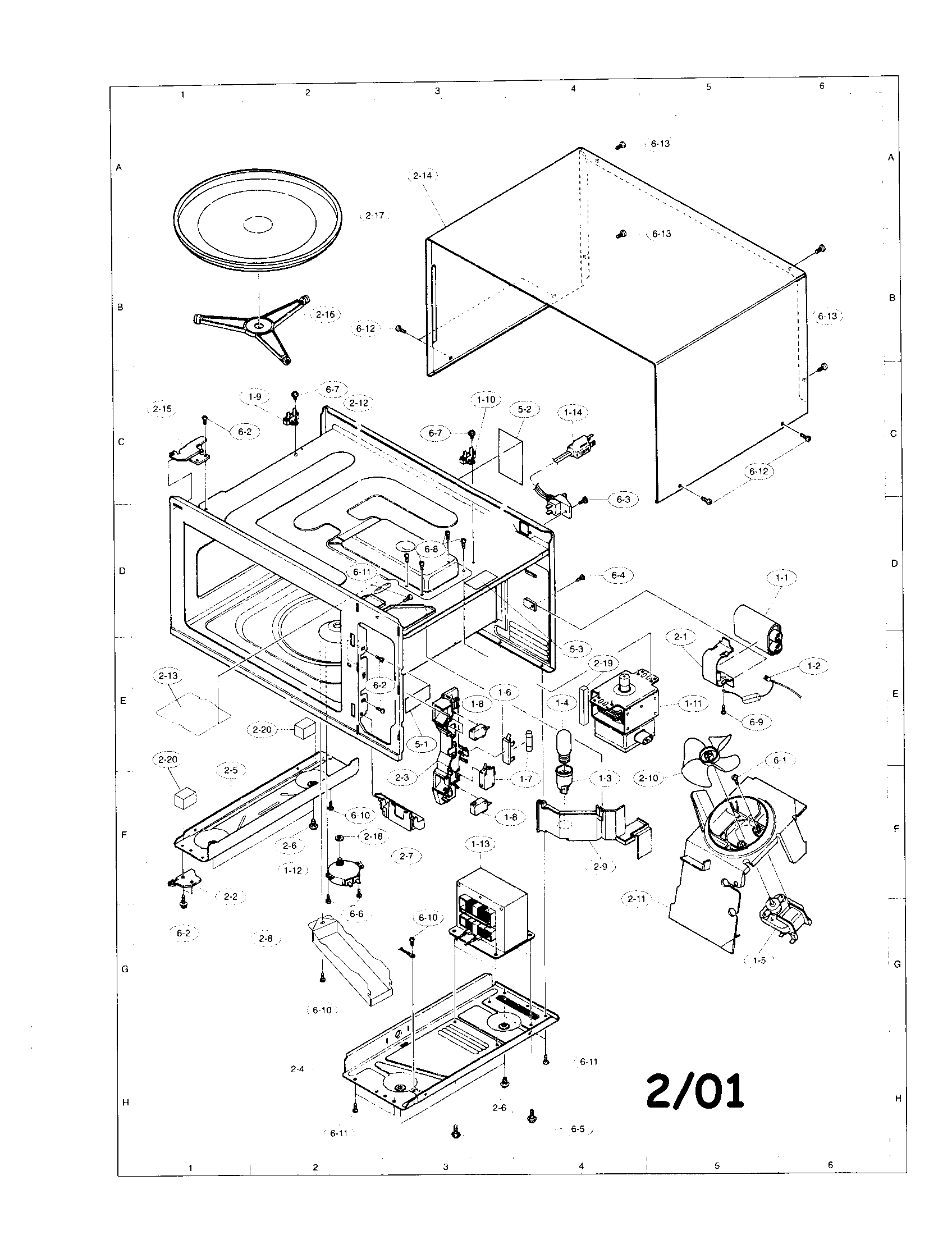

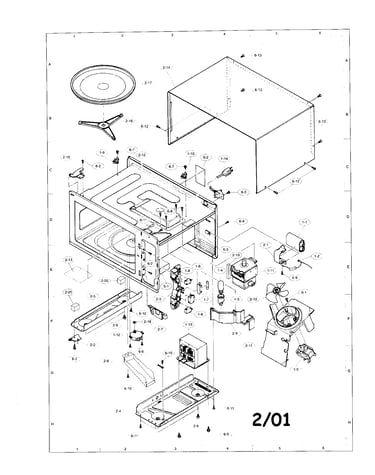

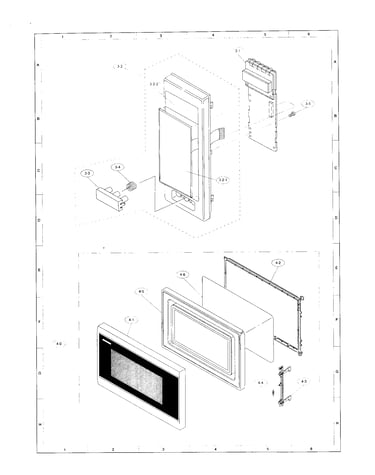

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

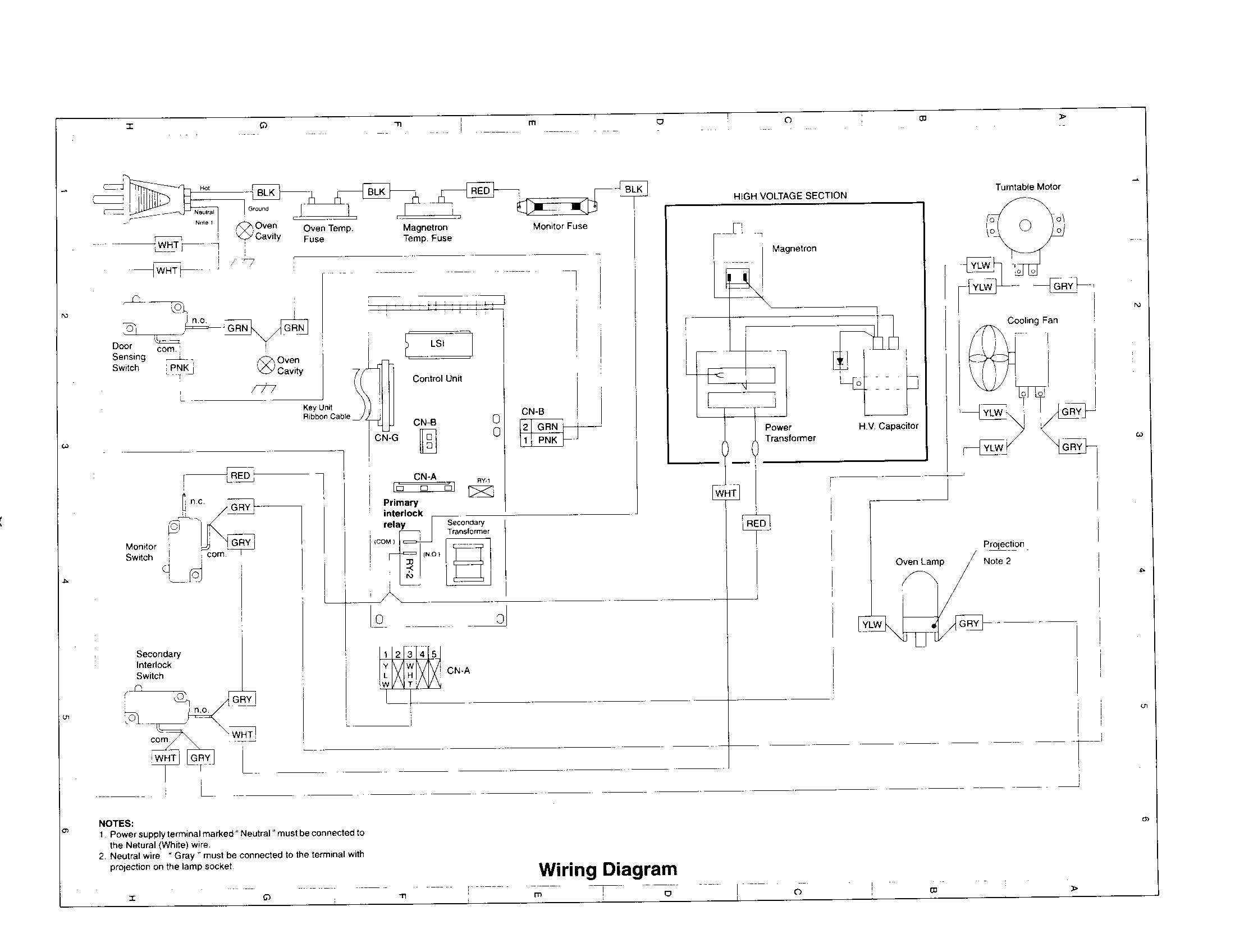

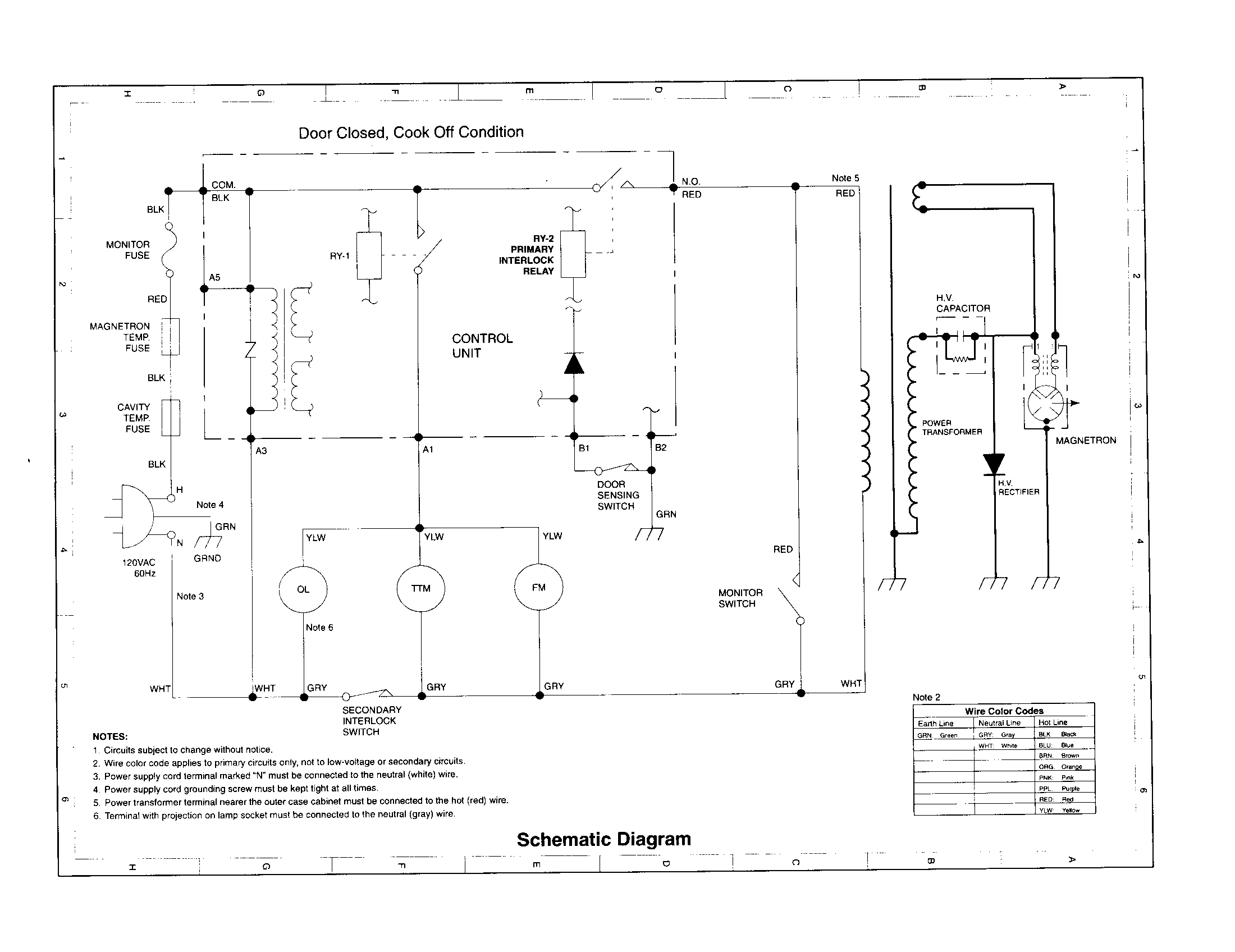

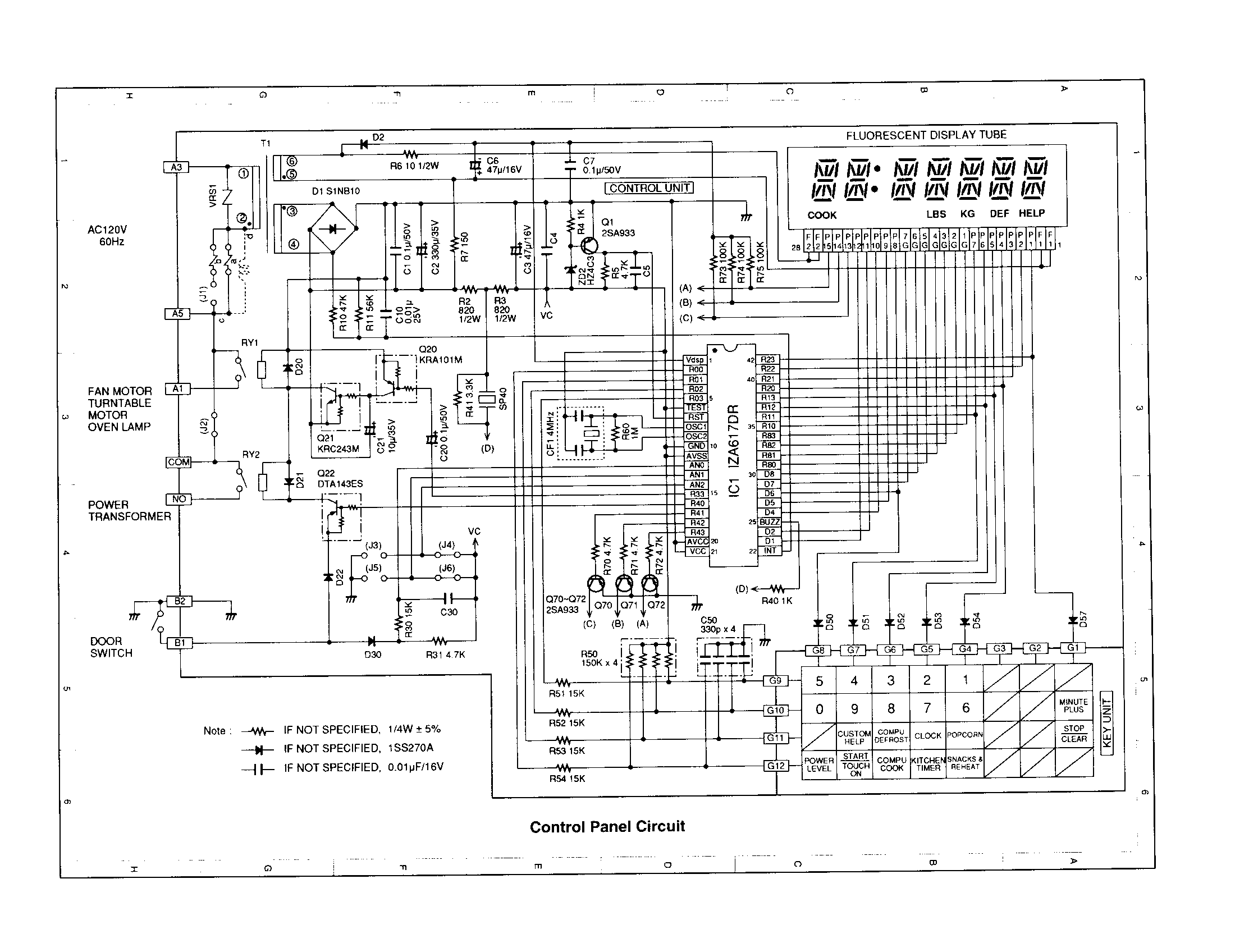

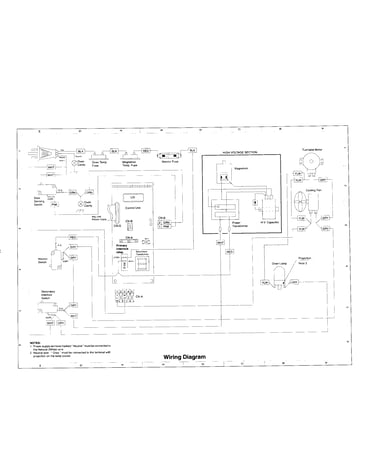

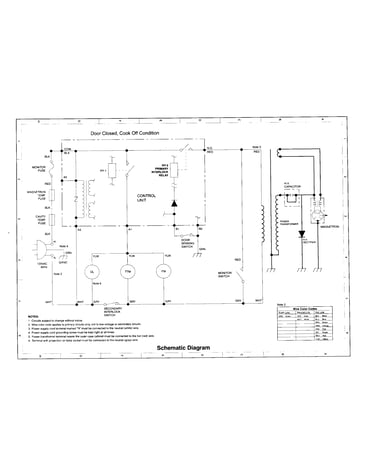

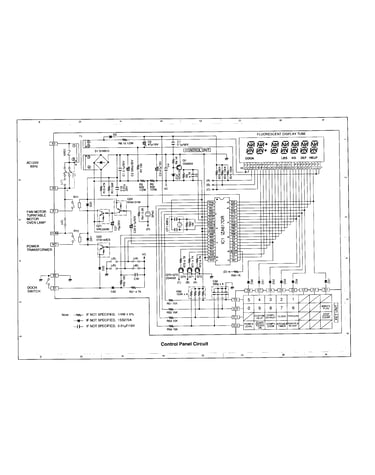

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Switch QSW-MA110WRE0

#1-08

All parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-14

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Door CDORFB097MRK0

#4-00

All parts diagram

Door

Part #CDORFB097MRK0

The manufacturer no longer makes this part, and there's no substitute part

Resistor VRD-B12EF472J

#NI

All parts diagram

Resistor

Part #VRD-B12EF472J

The manufacturer no longer makes this part, and there's no substitute part

Transistor VS2SA933S//-3

#NI

All parts diagram

Transistor

Part #VS2SA933S//-3

The manufacturer no longer makes this part, and there's no substitute part

Latch PHOK-A057WRF0

#2-03

All parts diagram

Latch

Part #PHOK-A057WRF0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCEAB31CW476M

#NI

All parts diagram

Capacitor

Part #VCEAB31CW476M

The manufacturer no longer makes this part, and there's no substitute part

Foot GLEGPB003MRF0

#2-06

All parts diagram

Foot

Part #GLEGPB003MRF0

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket QSOCLB006MRE0

#1-03

All parts diagram

Lamp socket

Part #QSOCLB006MRE0

The manufacturer no longer makes this part, and there's no substitute part

Zener Hz4c VHEHZ4C3///-1

#NI

All parts diagram

Zener hz4c

Part #VHEHZ4C3///-1

The manufacturer no longer makes this part, and there's no substitute part
