Eureka
Upright Vacuum

Model # 4034A Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 4034A vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Pedal Spring 53097
#19

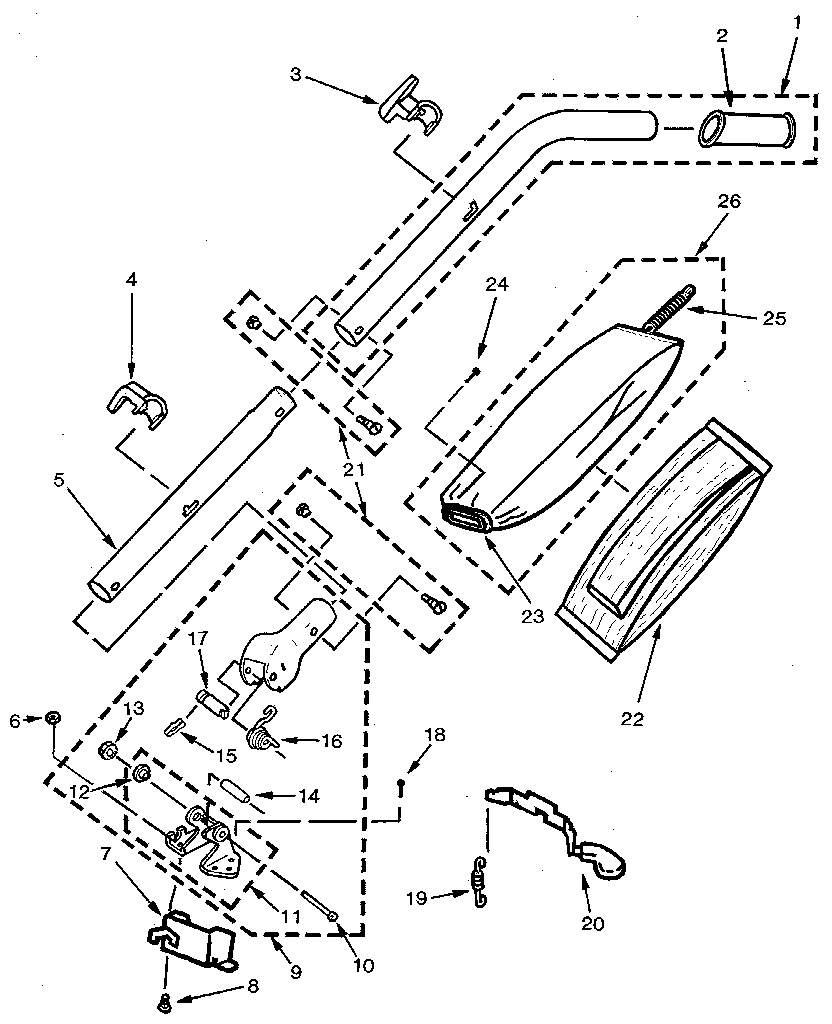

Handle and bag housing diagram

Pedal spring

Part #53097

The manufacturer no longer makes this part, and there's no substitute part

Shaft 25944
#22

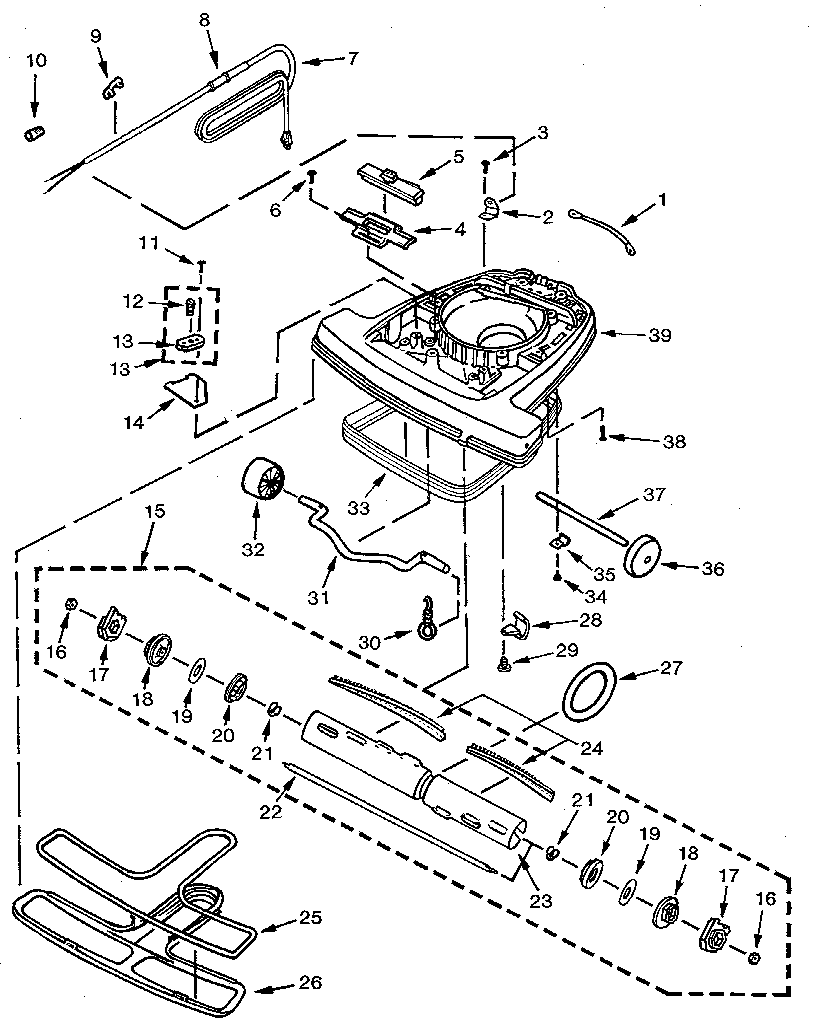

Agitator diagram

Shaft

Part #25944

The manufacturer no longer makes this part, and there's no substitute part

Washer 53222-3
#12

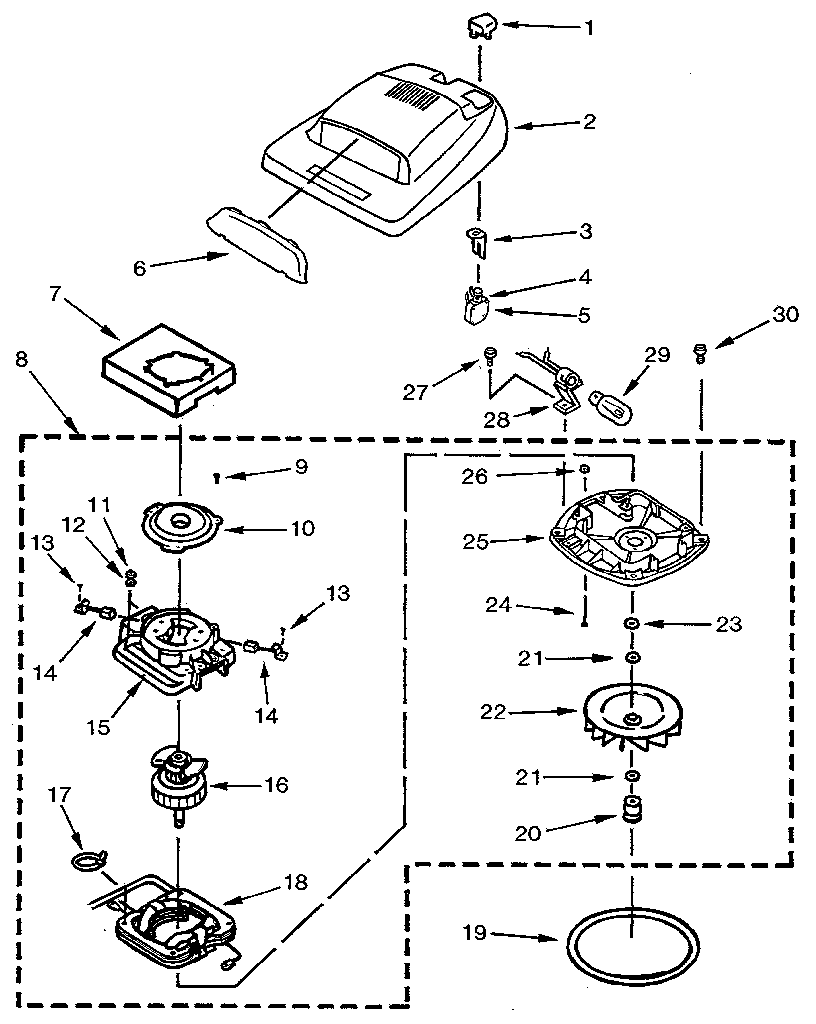

Nozzle and motor assembly diagram

Washer

Part #53222-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 53147
#6

Agitator diagram

Screw

Part #53147

The manufacturer no longer makes this part, and there's no substitute part

Spacer 53099
#14

Handle and bag housing diagram

Spacer

Part #53099

The manufacturer no longer makes this part, and there's no substitute part

Sock Shield 37157
#7

Handle and bag housing diagram

Sock shield

Part #37157

The manufacturer no longer makes this part, and there's no substitute part

Axle 35947A
#31

Agitator diagram

Axle

Part #35947A

The manufacturer no longer makes this part, and there's no substitute part

Bolt 10pk 53145
#8

Handle and bag housing diagram

Bolt 10pk

Part #53145

The manufacturer no longer makes this part, and there's no substitute part

Wheel Cover 36263
#14

Agitator diagram

Wheel cover

Part #36263

The manufacturer no longer makes this part, and there's no substitute part

Garter Spring 48410

#NI

All parts diagram

Garter spring

Part #48410

The manufacturer no longer makes this part, and there's no substitute part
