Model # SDR-S50PK Official Panasonic camcorder

Here are the diagrams and repair parts for Official Panasonic SDR-S50PK camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Microphone LSEQ0874
#49

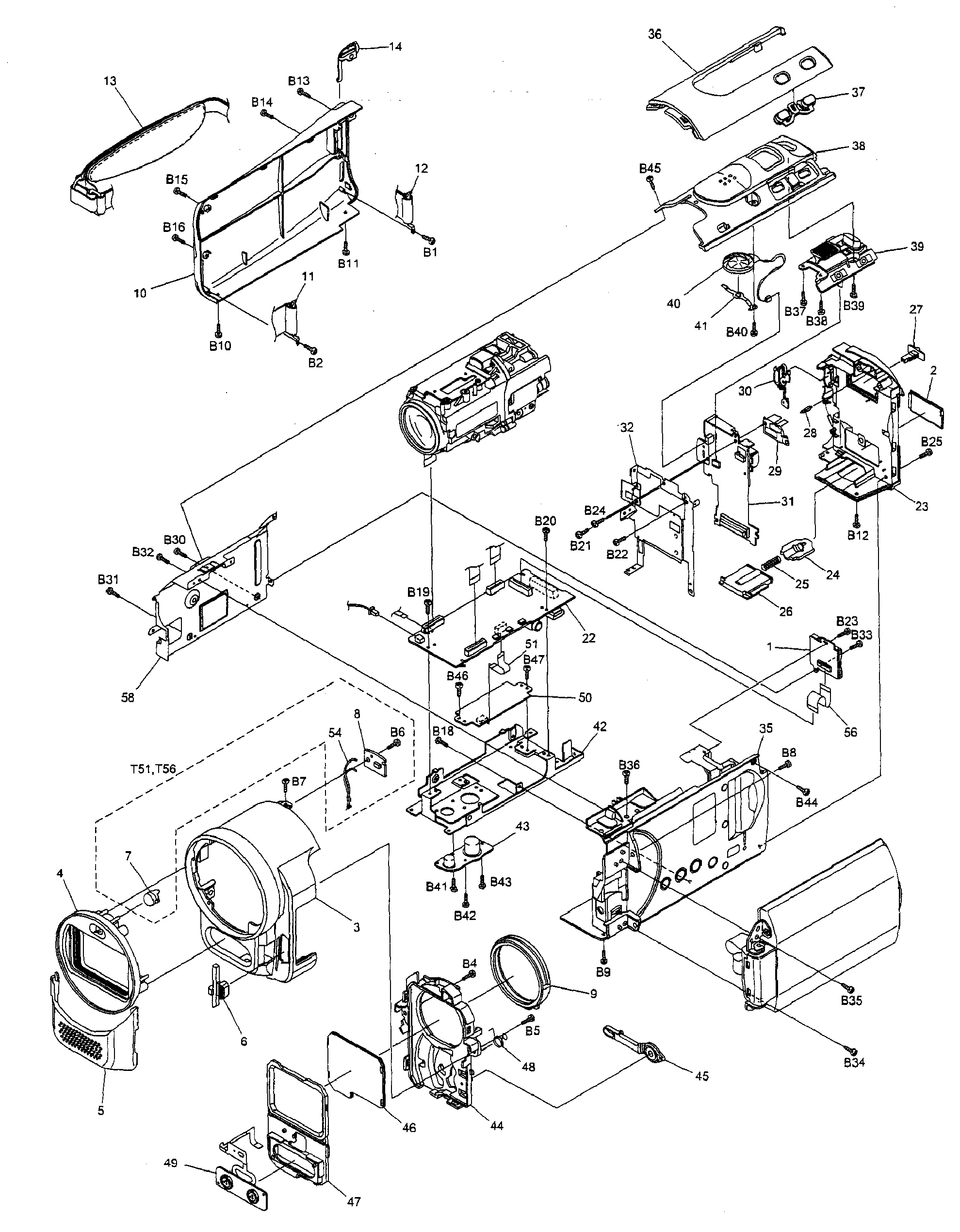

Frame assy diagram

Microphone

Part #LSEQ0874

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit L2ES00000019
#NI

Frame assy diagram

Integrated circuit

Part #L2ES00000019

The manufacturer no longer makes this part, and there's no substitute part

Pcb VEP26326A
#20

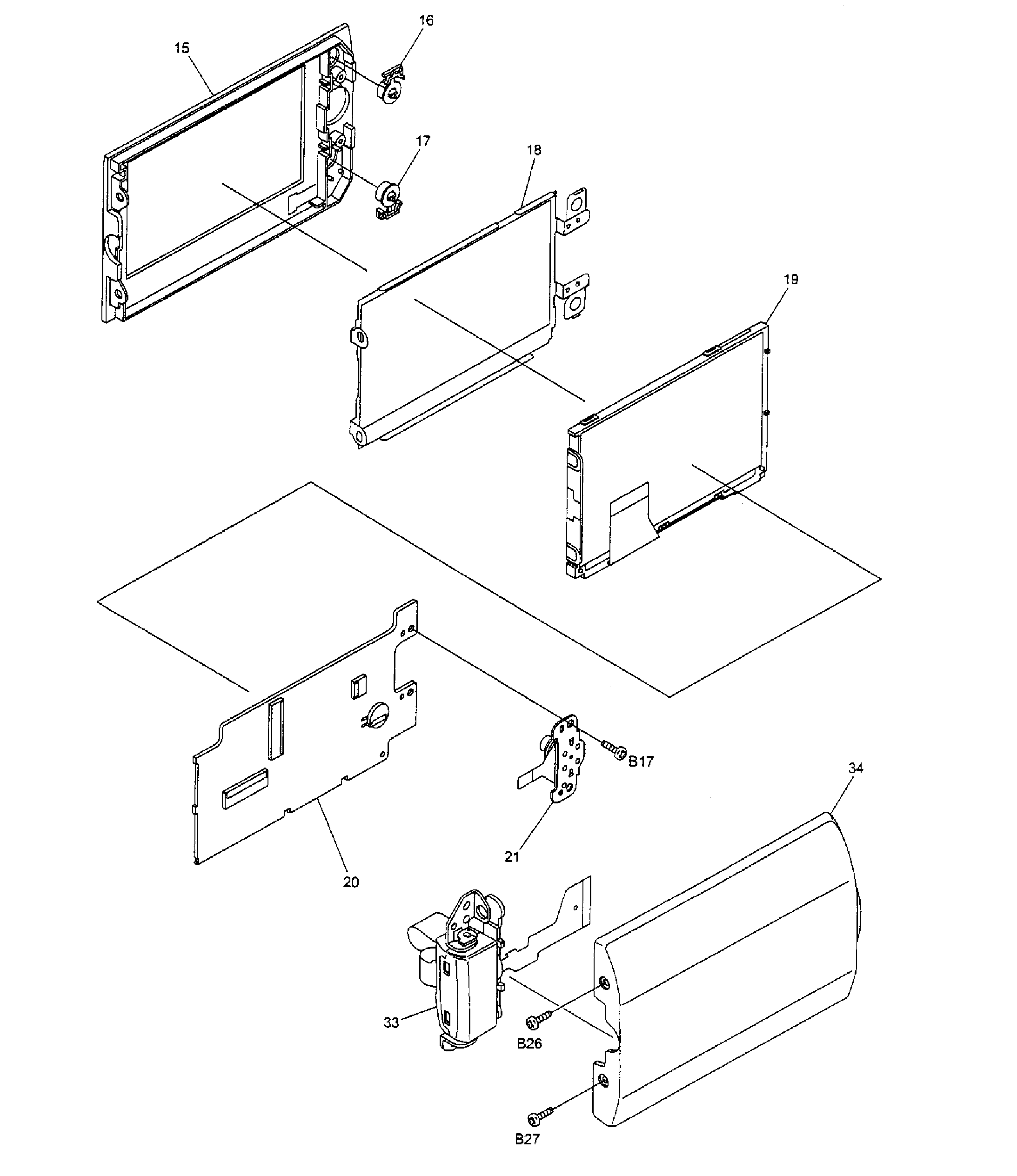

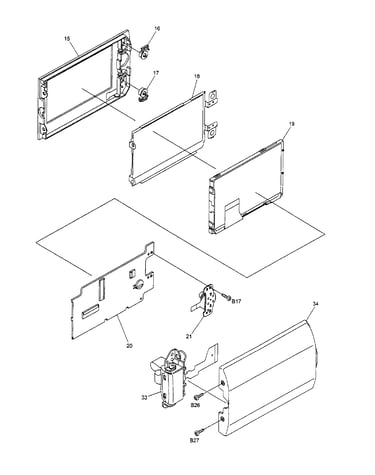

Lcd assy diagram

Pcb

Part #VEP26326A

The manufacturer no longer makes this part, and there's no substitute part

Auto Iris LSEM0118
#4013

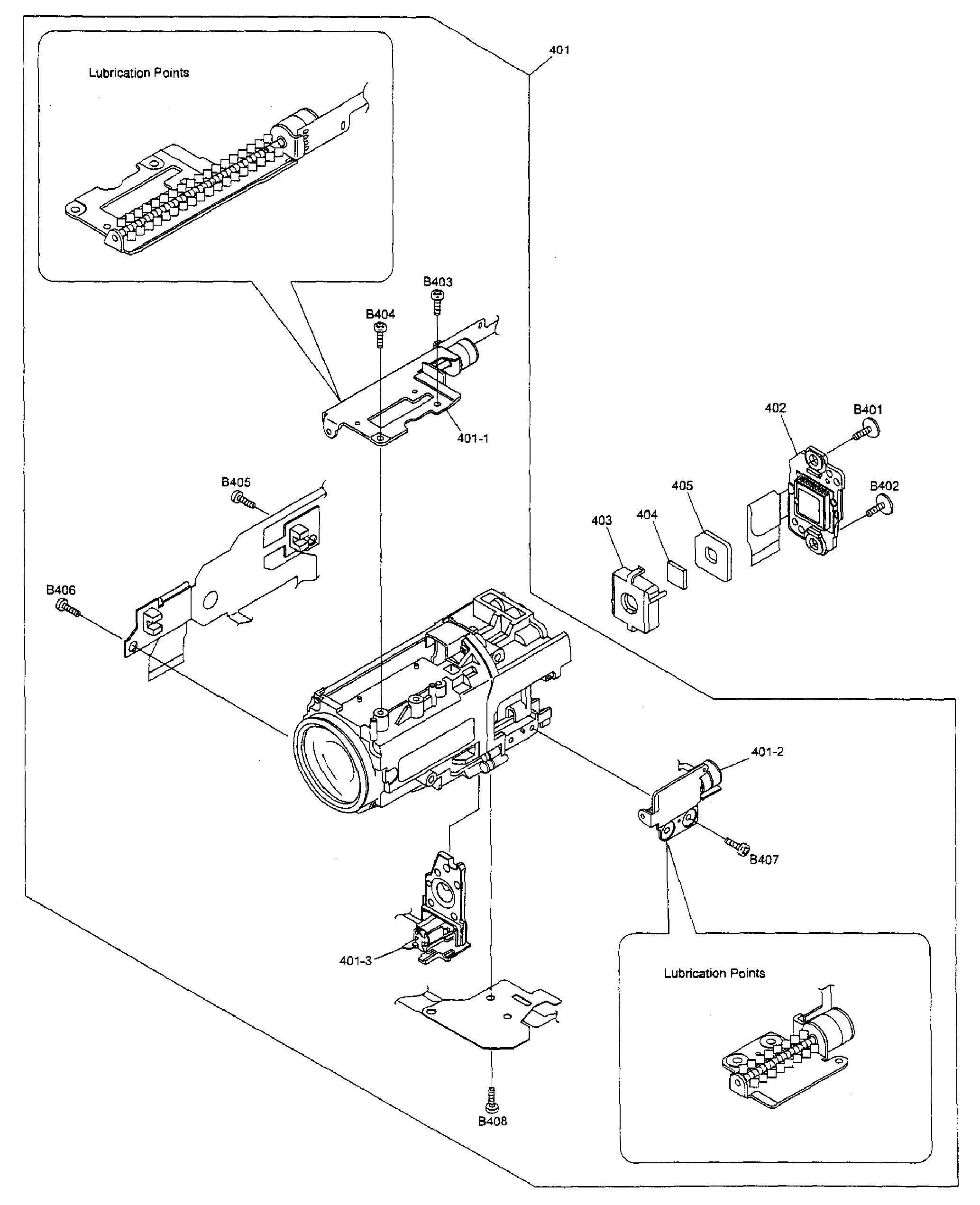

Lens assy diagram

Auto iris

Part #LSEM0118

The manufacturer no longer makes this part, and there's no substitute part

Holder LSMD1117
#26

Frame assy diagram

Holder

Part #LSMD1117

The manufacturer no longer makes this part, and there's no substitute part

Cover LSGF0561
#47

Frame assy diagram

Cover

Part #LSGF0561

The manufacturer no longer makes this part, and there's no substitute part

Arm,shut LSML0386
#45

Frame assy diagram

Arm,shut

Part #LSML0386

The manufacturer no longer makes this part, and there's no substitute part

Case Lcd LSSC1107
#18

Lcd assy diagram

Case lcd

Part #LSSC1107

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker L0AA01A00049
#40

Frame assy diagram

Camcorder speaker

Part #L0AA01A00049

The manufacturer no longer makes this part, and there's no substitute part

Panel LSKF0749
#46

Frame assy diagram

Panel

Part #LSKF0749

The manufacturer no longer makes this part, and there's no substitute part
