Amana
Countertop Microwave

Model # F1331E-P1323104M Official Amana microwave

Here are the diagrams and repair parts for Official Amana F1331E-P1323104M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

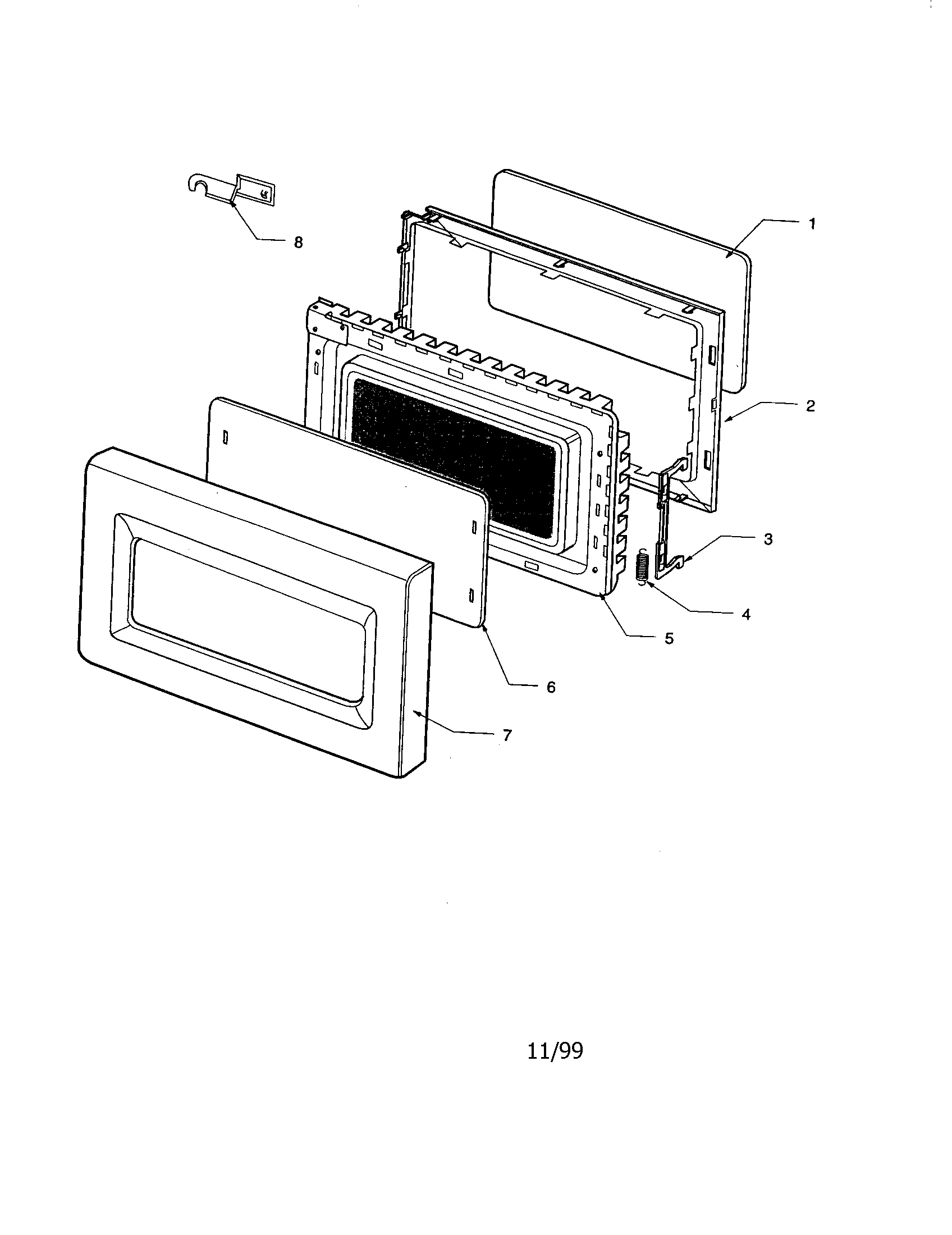

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Capacitor R9900304
#15

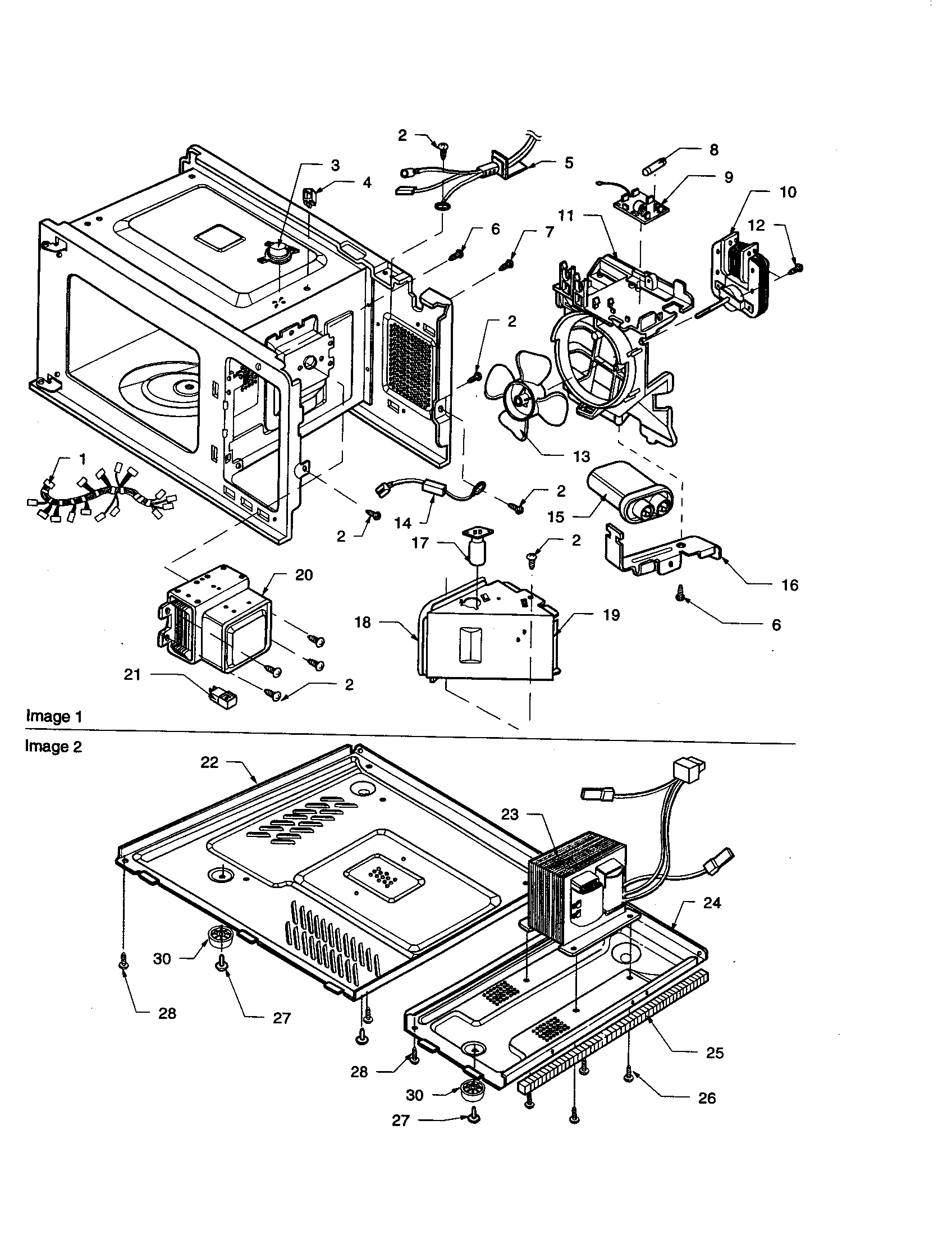

Interior and base plate diagram

Capacitor

Part #R9900304

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces R9900304. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Spring R9800320
#3

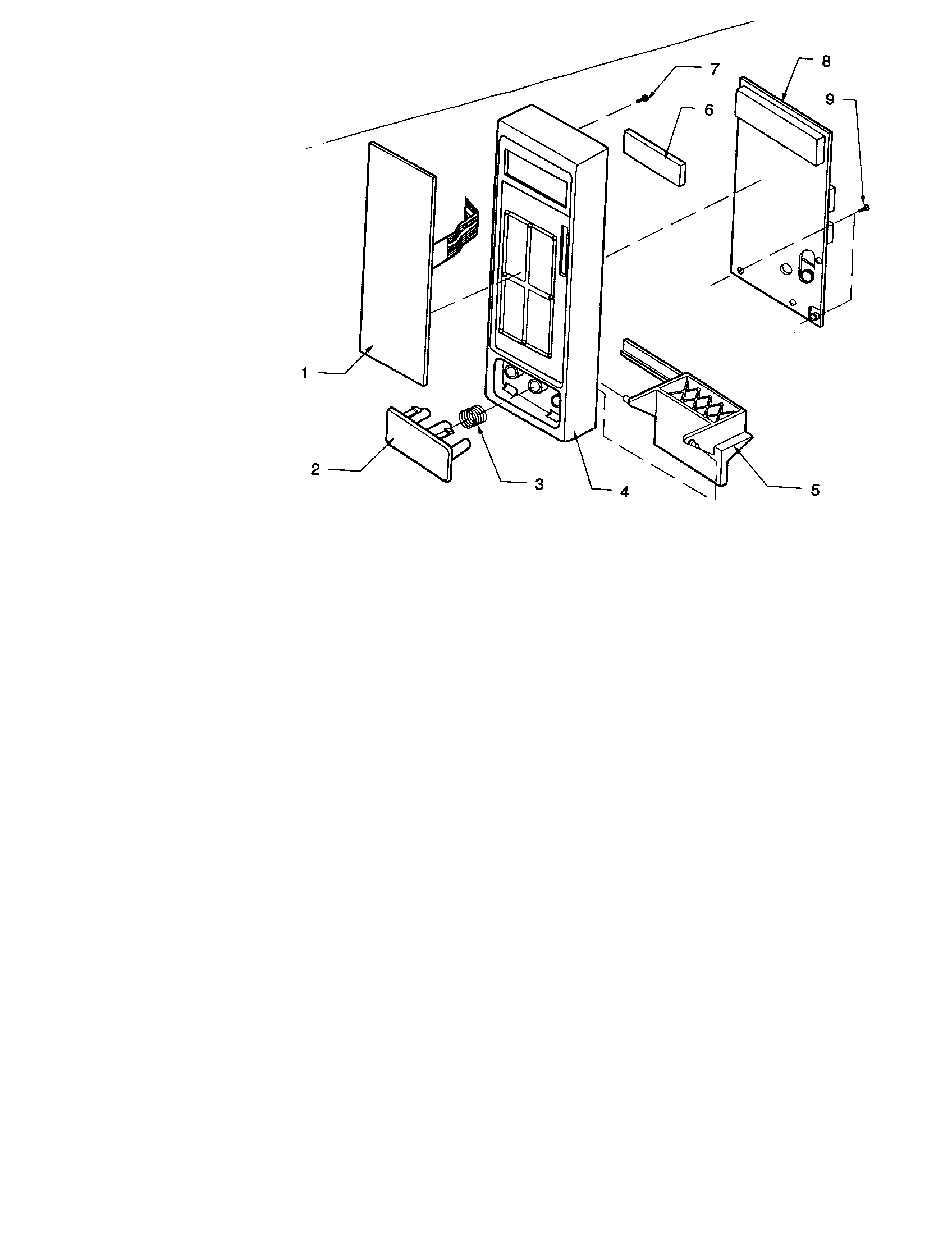

Control panel diagram

Spring

Part #R9800320

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces R9800320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Diode R9800486
#14

Interior and base plate diagram

Diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Dioide R9900303
#14A

Interior and base plate diagram

Dioide

Part #R9900303

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9900303. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Rivet R9800452
#16

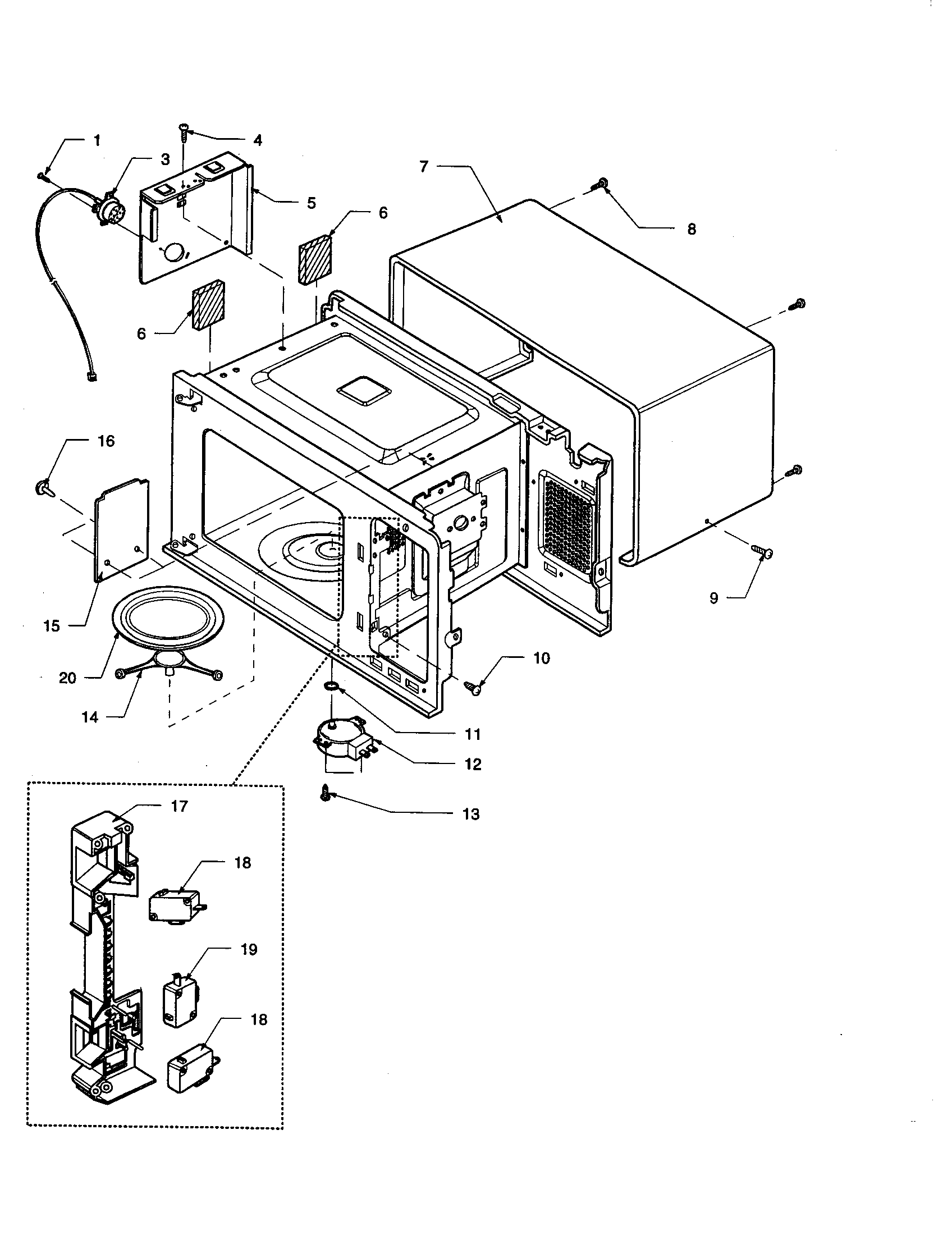

Oven cavity/latch assembly diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Tray R9800389
#20

Oven cavity/latch assembly diagram

Tray

Part #R9800389

Replaced by #WPW10267856

?
Manufacturer substitution
This part replaces R9800389. Substitute parts can look different from the original.
$43.49 |
12% OFF Phone Price : $49.49
In Stock
Magnetron R9900378
#20A

Interior and base plate diagram

Magnetron

Part #R9900378

The manufacturer no longer makes this part, and there's no substitute part

Filter R9800442
#21

Interior and base plate diagram

Filter

Part #R9800442

Replaced by #4359624

?
Manufacturer substitution
This part replaces R9800442. Substitute parts can look different from the original.
$17.87
In Stock
Screw R0654038
Screw

Part #R0654038

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654038. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Capacitor [high Voltage] (mvh250e, Mvh250w, Mvh250l, Mvh350e, Mvh350w, Mvh350l, Mvh350ss, Mvh250c, Mvh350c) R9900305
#15A

Interior and base plate diagram

Capacitor [high voltage] (mvh250e, mvh250w, mvh250l, mvh350e, mvh350w, mvh350l, mvh350ss, mvh250c, mvh350c)

Part #R9900305

The manufacturer no longer makes this part, and there's no substitute part
