Model # S1127--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S1127- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Vacuum Diffuser 34366001
#28

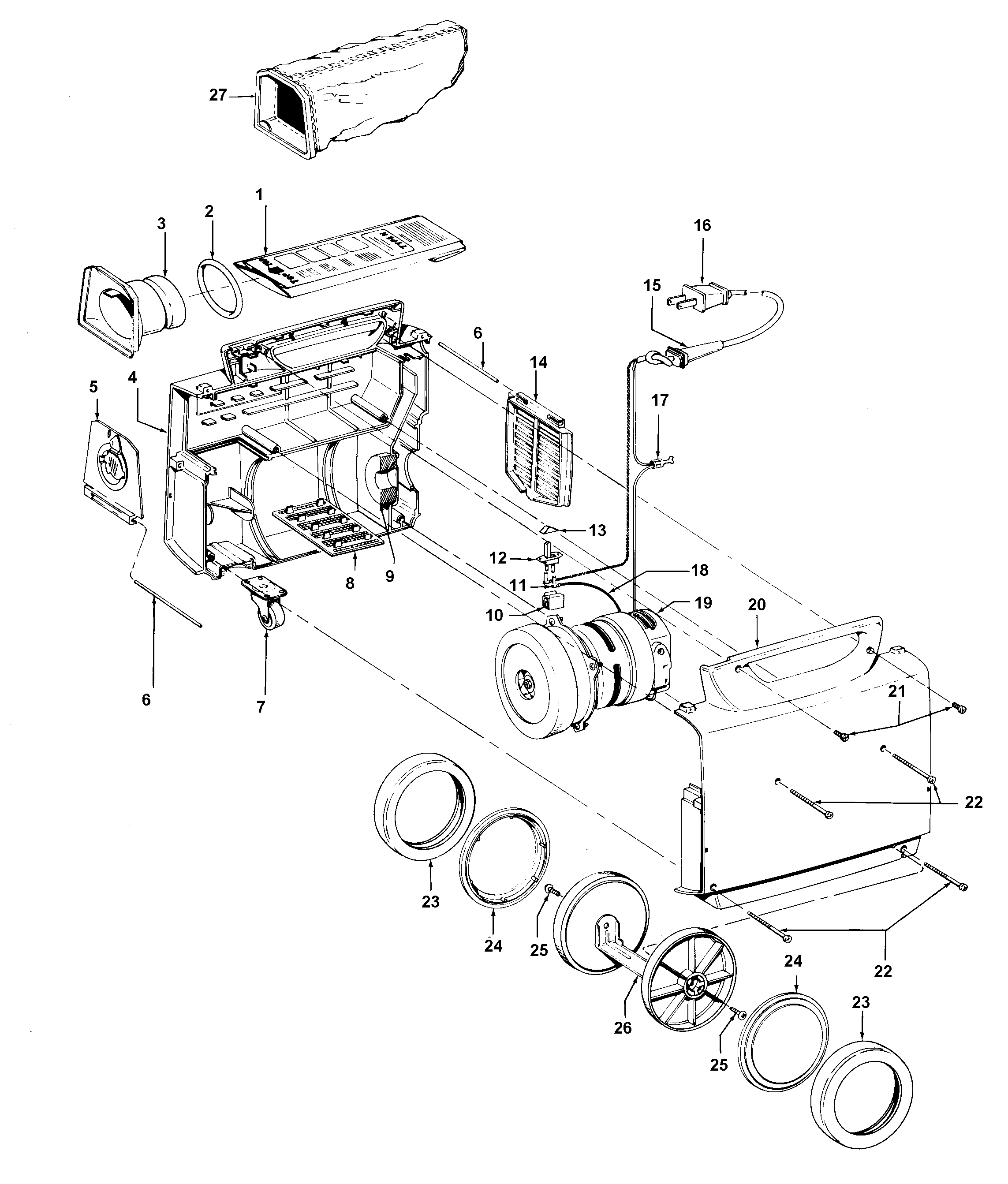

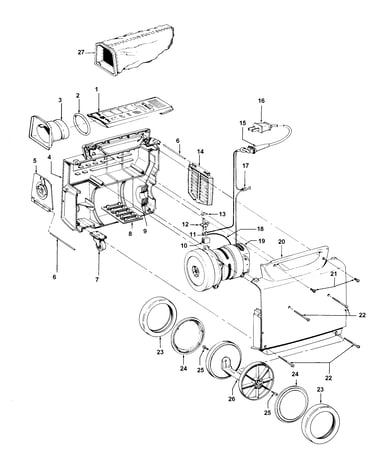

Mainhousing diagram

Vacuum diffuser

Part #34366001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 162083JM
#8

Mainhousing diagram

Vacuum filter, 1-pack

Part #162083JM

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 28177006
#12

Mainhousing diagram

Vacuum switch

Part #28177006

The manufacturer no longer makes this part, and there's no substitute part

Screw 21429406
#21

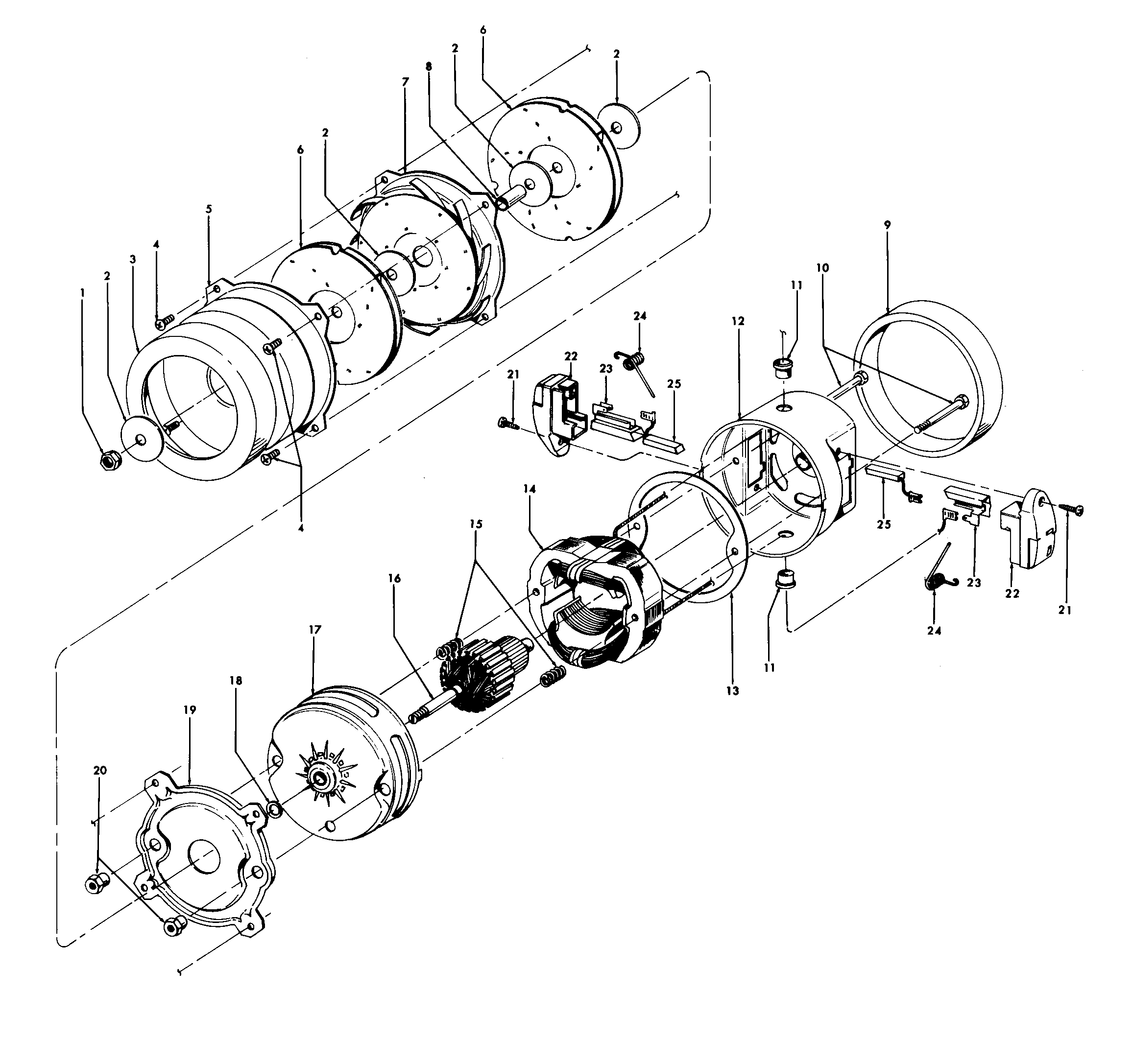

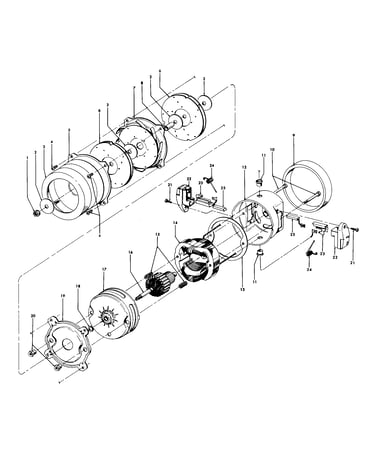

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Roller 38521018
#24

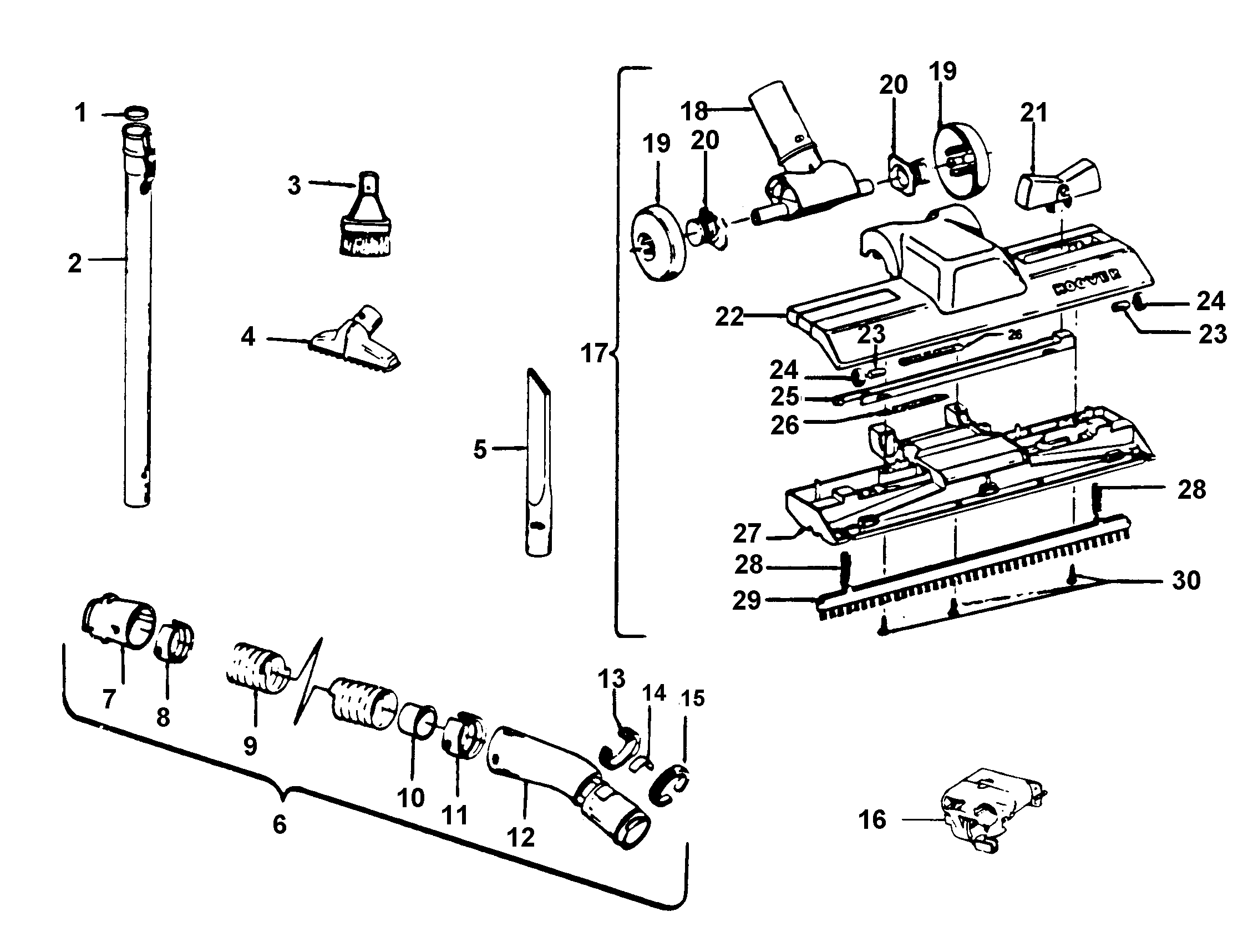

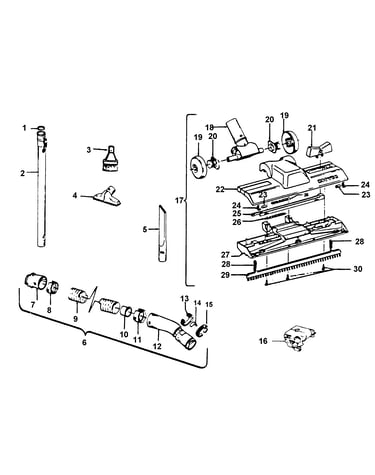

Hose, cleaningtools diagram

Vacuum floor nozzle roller

Part #38521018

The manufacturer no longer makes this part, and there's no substitute part

Pressure Pad 33712005
#9

Mainhousing diagram

Pressure pad

Part #33712005

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 31328002
#3

Motor assembly diagram

Motor mount

Part #31328002

The manufacturer no longer makes this part, and there's no substitute part

Gasket Motor 31178007
#9

Motor assembly diagram

Gasket motor

Part #31178007

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#1

Motor assembly diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Armature 44765171
#16

Motor assembly diagram

Armature

Part #44765171

The manufacturer no longer makes this part, and there's no substitute part
