Kenmore
Electric Grill

Model # 6681847 Official Kenmore electric grill

Here are the diagrams and repair parts for Official Kenmore 6681847 electric grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

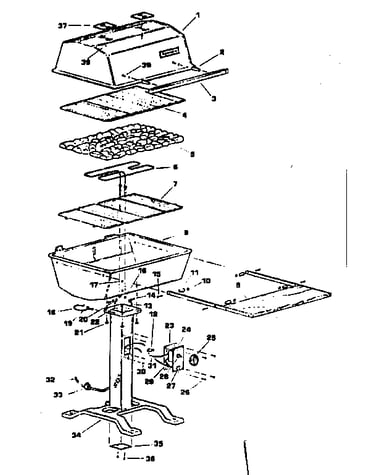

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Twist-on Wire Connector 201608
#12

Replacement parts diagram

Twist-on wire connector

Part #201608

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 201608. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Drp Cup Hldr 201708
#18

Replacement parts diagram

Drp cup hldr

Part #201708

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 201512
#14

Replacement parts diagram

Machine screw

Part #201512

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 201505
#17

Replacement parts diagram

Hex nut

Part #201505

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 201504
#21

Replacement parts diagram

Machine screw

Part #201504

The manufacturer no longer makes this part, and there's no substitute part

S M Screw 201513
#19

Replacement parts diagram

S m screw

Part #201513

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut 201509
#28

Replacement parts diagram

Pal nut

Part #201509

The manufacturer no longer makes this part, and there's no substitute part

Space Hndl 201713
Space hndl

Part #201713

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Ele 201514
#16

Replacement parts diagram

Hex nut ele

Part #201514

The manufacturer no longer makes this part, and there's no substitute part

Control Plate 201715
#24

Replacement parts diagram

Control plate

Part #201715

The manufacturer no longer makes this part, and there's no substitute part
