Harman Kardon
DVD Player

Model # DVD50 Official Harman Kardon dvd player

Here are the diagrams and repair parts for Official Harman Kardon DVD50 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Harman Kardon Remote 6711R1Z017D
#NI

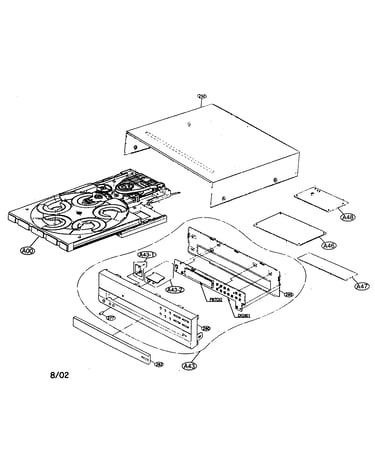

Cabinet parts diagram

Harman kardon remote

Part #6711R1Z017D

The manufacturer no longer makes this part, and there's no substitute part

Tray 3390R-0008A
#26

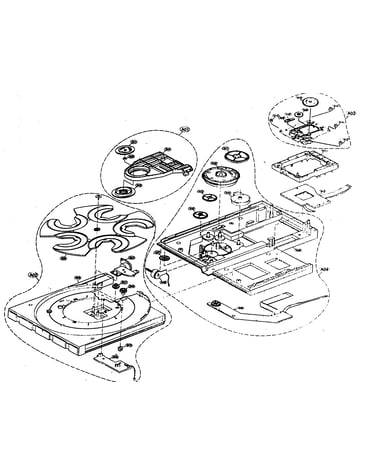

Cd tray diagram

Tray

Part #3390R-0008A

The manufacturer no longer makes this part, and there's no substitute part

Gear 4470R-0073A
#20

Cd tray diagram

Gear

Part #4470R-0073A

The manufacturer no longer makes this part, and there's no substitute part

Gear 4470R-0074A
#21

Cd tray diagram

Gear

Part #4470R-0074A

The manufacturer no longer makes this part, and there's no substitute part

Gear 4470R-0067A
#32

Cd tray diagram

Gear

Part #4470R-0067A

The manufacturer no longer makes this part, and there's no substitute part

Photo-coup 657-063A
#NI

Cabinet parts diagram

Photo-coup

Part #657-063A

The manufacturer no longer makes this part, and there's no substitute part

Diode 0DD160000DA
#NI

Cabinet parts diagram

Diode

Part #0DD160000DA

The manufacturer no longer makes this part, and there's no substitute part

Gear 4470R-0071A
#35

Cd tray diagram

Gear

Part #4470R-0071A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 0IMMRFA001A
#NI

Cabinet parts diagram

Integrated circuit

Part #0IMMRFA001A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 0IKE781200B
#NI

Cabinet parts diagram

Integrated circuit

Part #0IKE781200B

The manufacturer no longer makes this part, and there's no substitute part
