Model # AH064J7T1 Official White-Westinghouse room air conditioner - l290888

Here are the diagrams and repair parts for Official White-Westinghouse AH064J7T1 room air conditioner - l290888, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Door 2627D77H01
#3

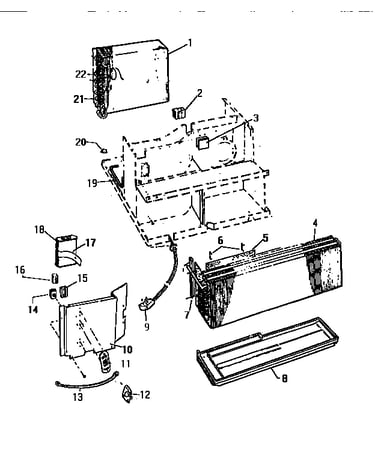

Control parts diagram

Door

Part #2627D77H01

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 2627D77H01. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw 684B691H05
#4

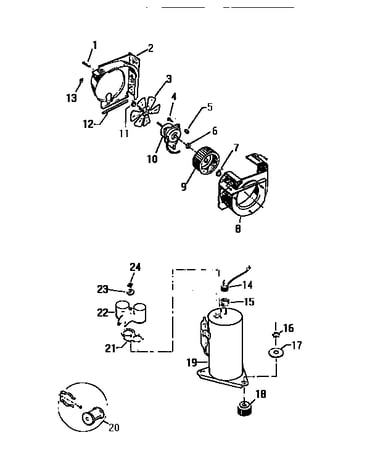

Compressor & components diagram

Screw

Part #684B691H05

The manufacturer no longer makes this part, and there's no substitute part

Nut 684B618H04
#3

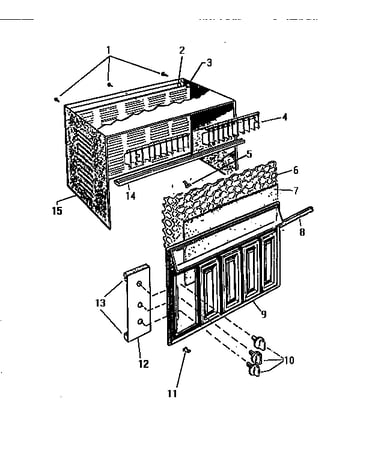

Cabinet, front, wrapper diagram

Nut

Part #684B618H04

The manufacturer no longer makes this part, and there's no substitute part

Screw C402702
#1

Cabinet, front, wrapper diagram

Screw

Part #C402702

The manufacturer no longer makes this part, and there's no substitute part

Retainer C344480
#6

Control parts diagram

Retainer

Part #C344480

The manufacturer no longer makes this part, and there's no substitute part

Switch Sel A262108
#16

Control parts diagram

Switch sel

Part #A262108

The manufacturer no longer makes this part, and there's no substitute part

Seal C298081
Seal

Part #C298081

The manufacturer no longer makes this part, and there's no substitute part

Clip Condenser C344542
#13

Compressor & components diagram

Clip condenser

Part #C344542

The manufacturer no longer makes this part, and there's no substitute part

Louver 187C390H02
#4A

Cabinet, front, wrapper diagram

Louver

Part #187C390H02

The manufacturer no longer makes this part, and there's no substitute part

Gasket A315302
#21

Compressor & components diagram

Gasket

Part #A315302

The manufacturer no longer makes this part, and there's no substitute part
