Model # RS200 Official Ryobi 5" random orbital sander

Here are the diagrams and repair parts for Official Ryobi RS200 5" random orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Br Tube 999186001
#10

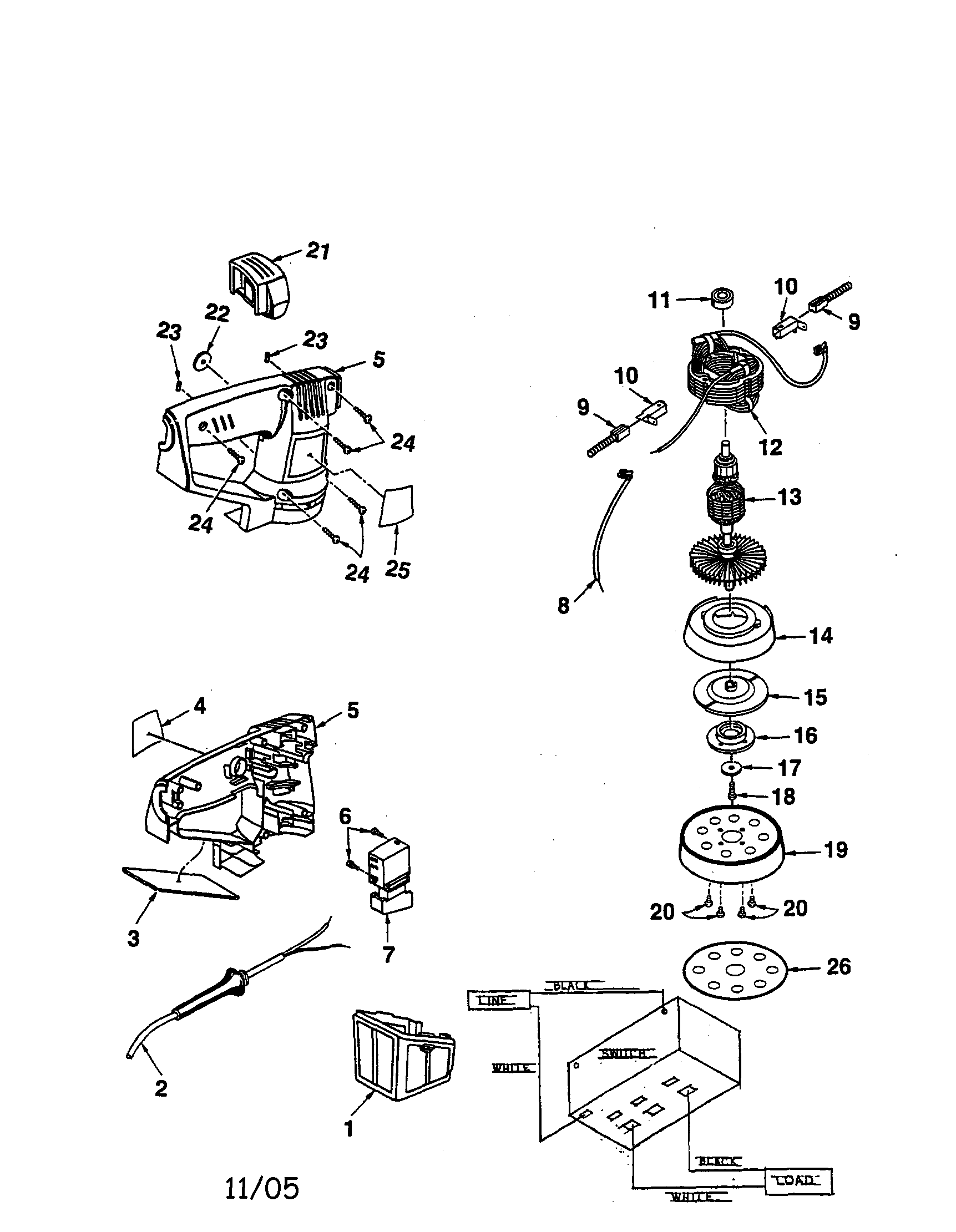

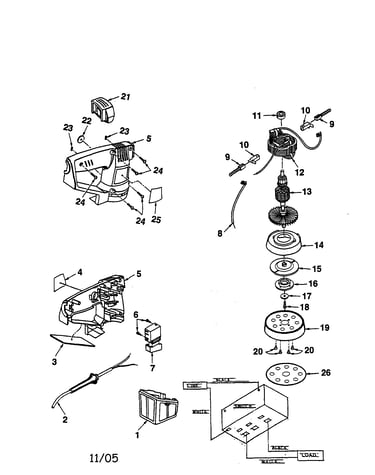

5" random orbit sander diagram

Br tube

Part #999186001

The manufacturer no longer makes this part, and there's no substitute part

Sandpaper 973889000
#26

5" random orbit sander diagram

Sandpaper

Part #973889000

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 973712001
#4

5" random orbit sander diagram

Logo plate

Part #973712001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 970113001
#5

5" random orbit sander diagram

Housing assembly

Part #970113001

The manufacturer no longer makes this part, and there's no substitute part

Front Knob 969645001
#21

5" random orbit sander diagram

Front knob

Part #969645001

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 969274009
#2

5" random orbit sander diagram

Ac cord

Part #969274009

The manufacturer no longer makes this part, and there's no substitute part

Armature (incl. No. 11) 968306119
#13

5" random orbit sander diagram

Armature (incl. no. 11)

Part #968306119

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 973711001
#25

5" random orbit sander diagram

Data plate

Part #973711001

The manufacturer no longer makes this part, and there's no substitute part

Screw 998586001
#20

5" random orbit sander diagram

Screw

Part #998586001

The manufacturer no longer makes this part, and there's no substitute part

Dust Box 973827001
#1

5" random orbit sander diagram

Dust box

Part #973827001

The manufacturer no longer makes this part, and there's no substitute part
