Model # DW307MK Official DeWalt reciprocating saw

Here are the diagrams and repair parts for Official DeWalt DW307MK reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

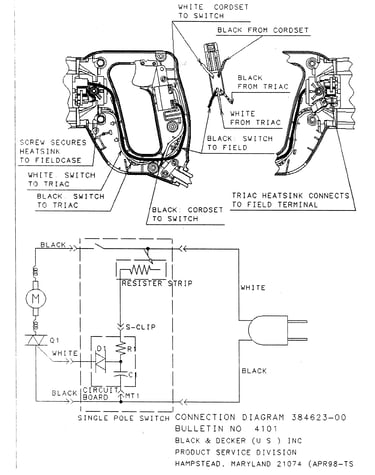

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Power Tool Bearing 330003-09
#49

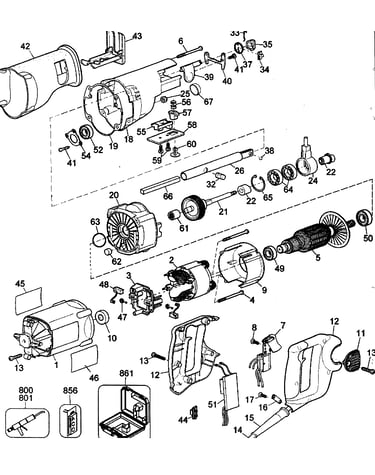

Saw diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Button 384405-00
#60

Saw diagram

Button

Part #384405-00

The manufacturer no longer makes this part, and there's no substitute part

Wrist Pin 382187-00
#32

Saw diagram

Wrist pin

Part #382187-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket 383752-00
#19

Saw diagram

Gasket

Part #383752-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 383387-00
#47

Saw diagram

Brush spring

Part #383387-00

The manufacturer no longer makes this part, and there's no substitute part

Oiler 387262-00
#66

Saw diagram

Oiler

Part #387262-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Sleeve 137382-00
#10

Saw diagram

Black & decker sleeve

Part #137382-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Nut 397893-00
#25A

Saw diagram

Black & decker nut

Part #397893-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker M4x50 Plst 330019-18
#4

Saw diagram

Black & decker m4x50 plst

Part #330019-18

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Armature 383392-03
#5

Saw diagram

Dewalt armature

Part #383392-03

The manufacturer no longer makes this part, and there's no substitute part
