Kenmore
Countertop Microwave

Model # 72163999303 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163999303 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

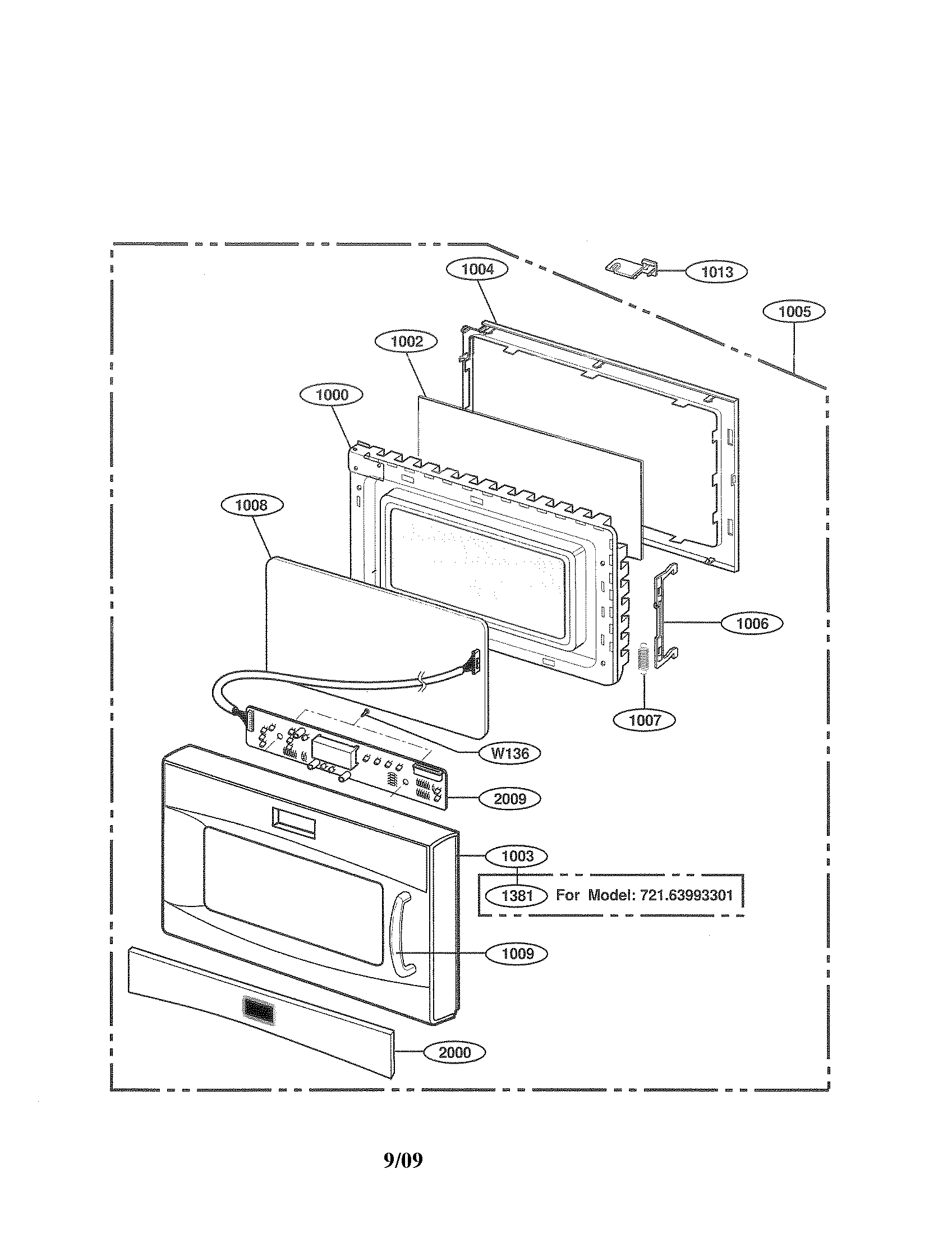

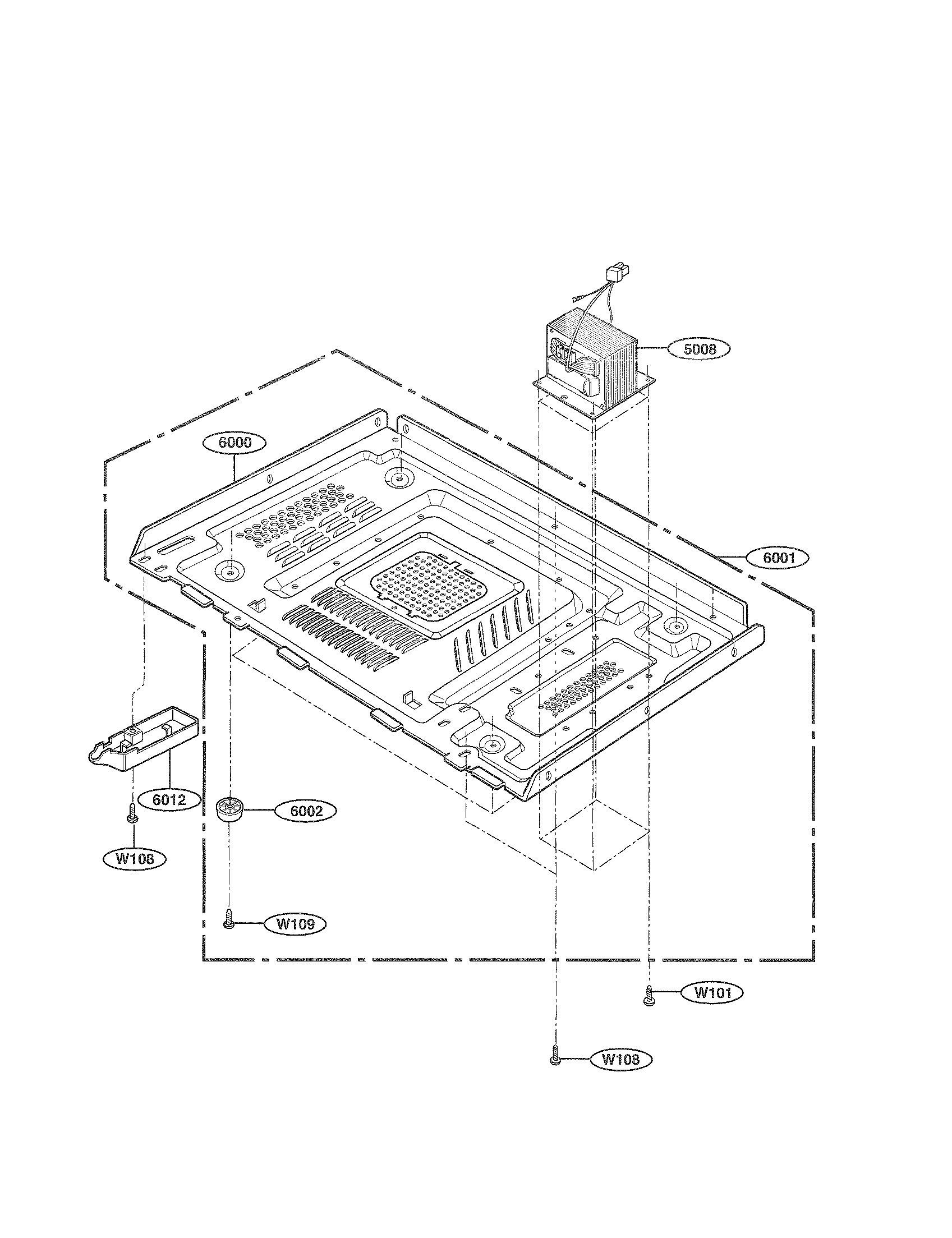

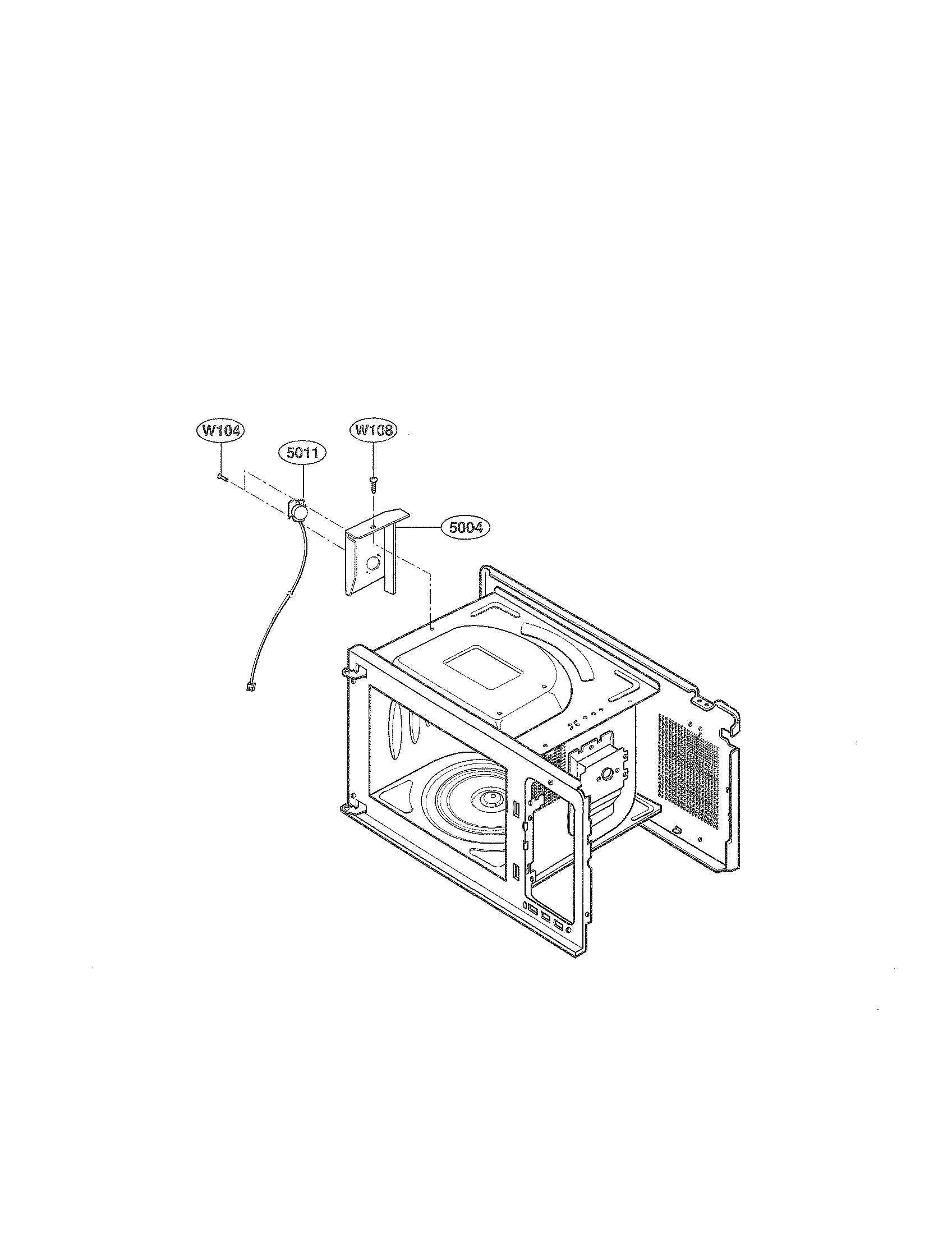

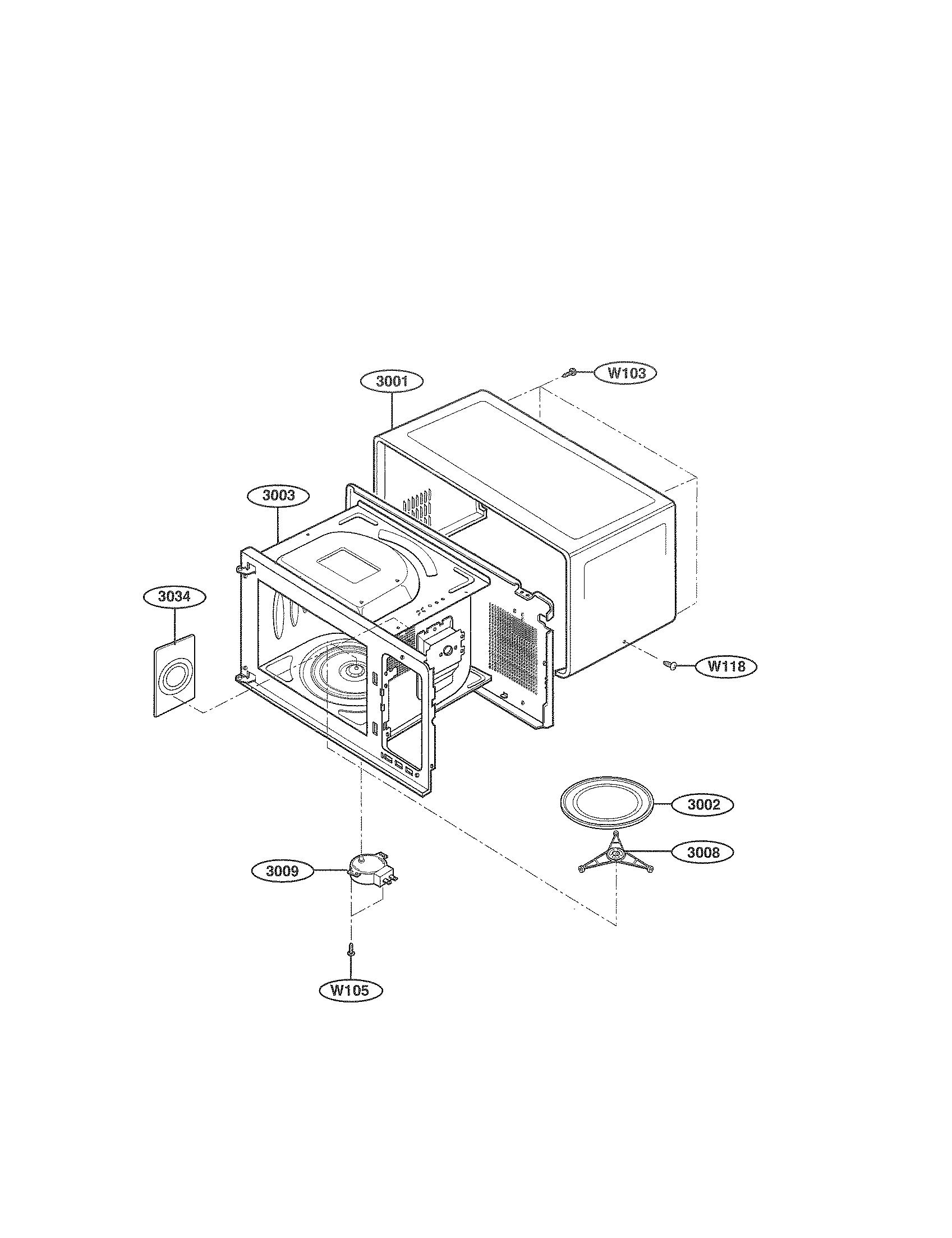

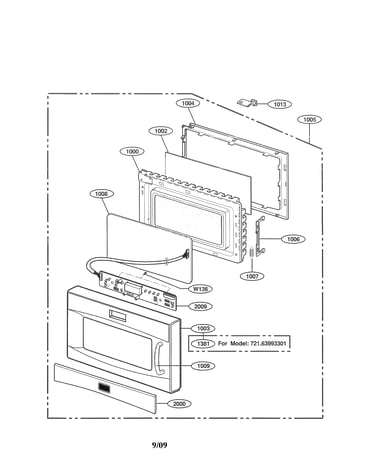

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Microwave Fuse 3B74133Q
#5001

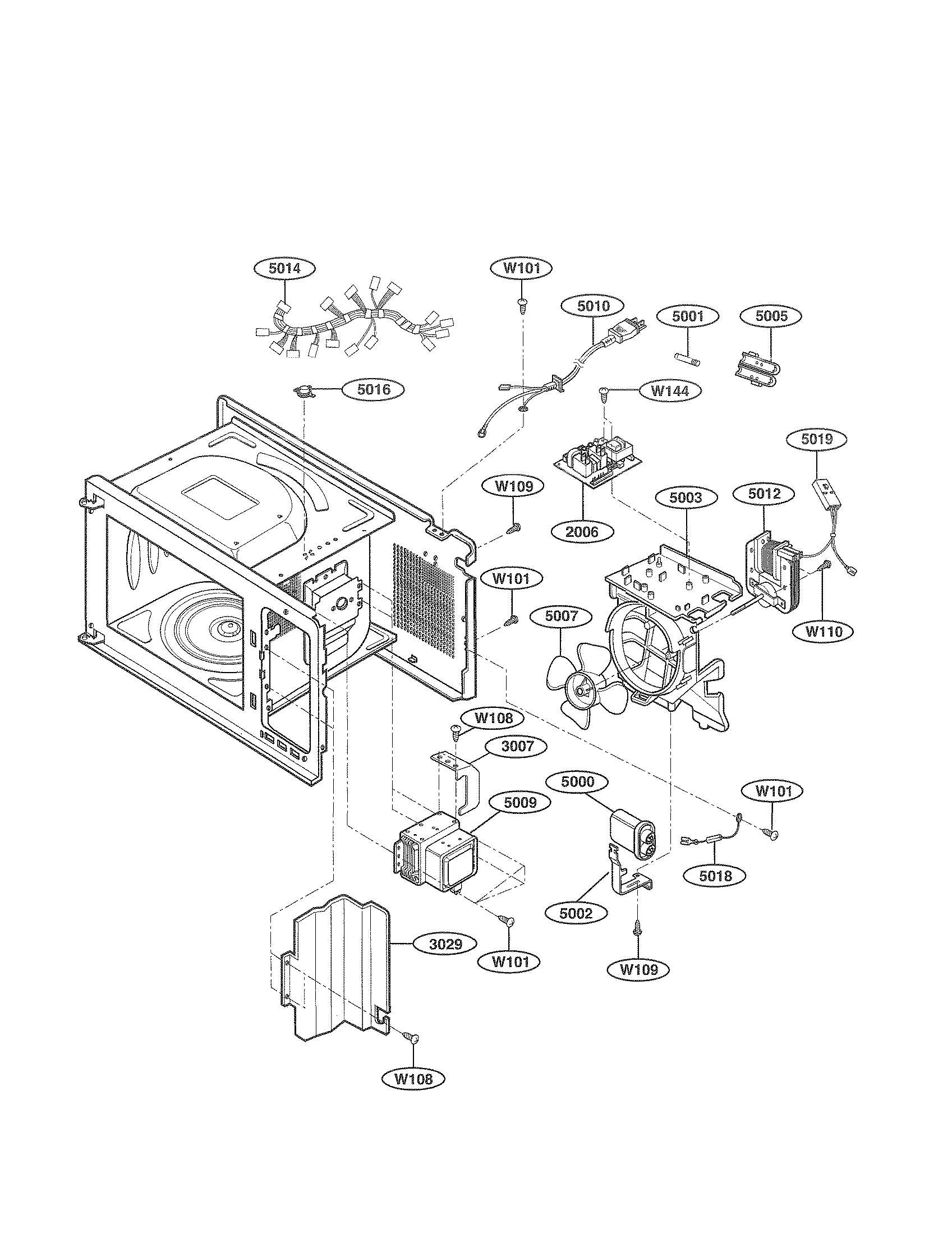

Oven interior parts diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

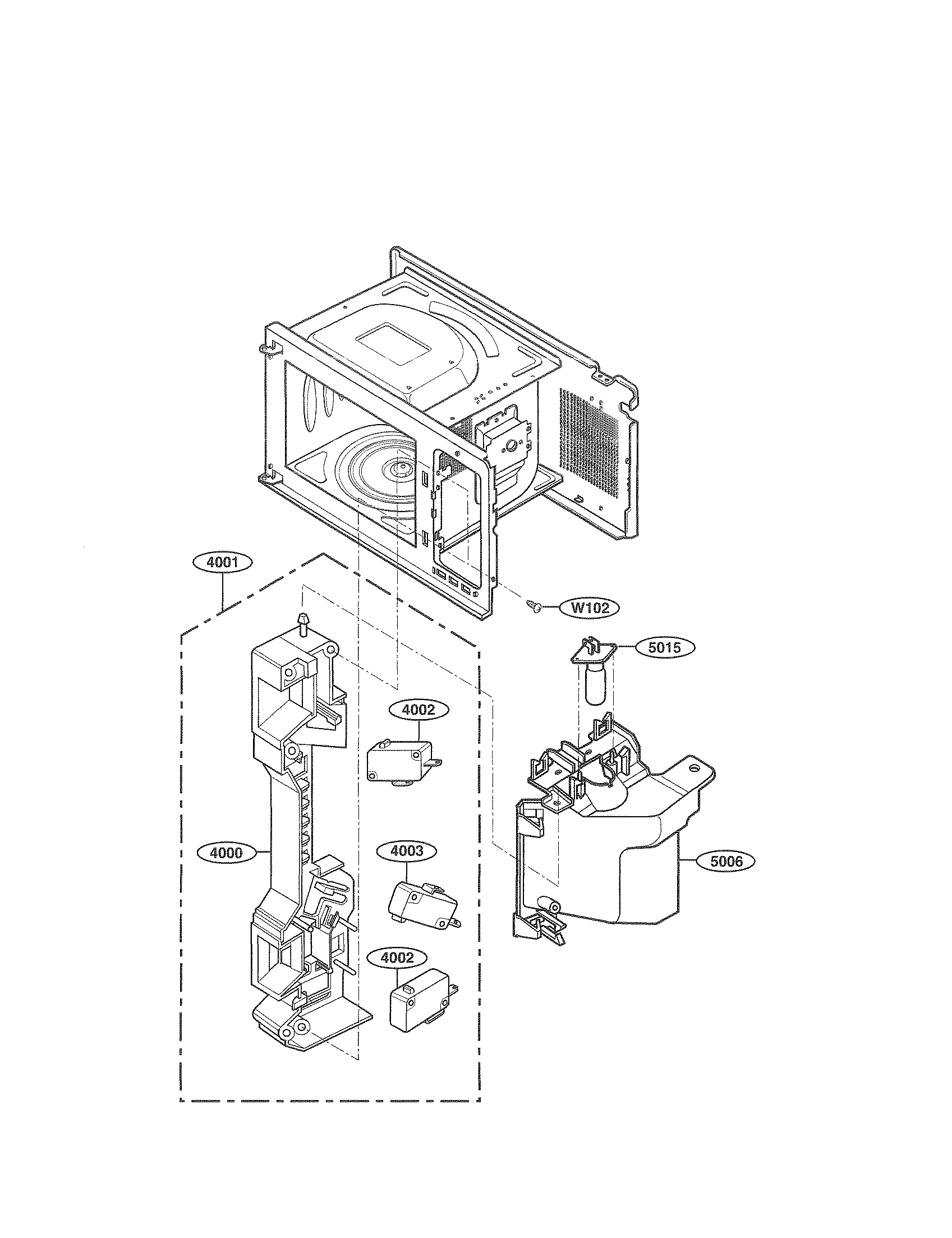

Latch board parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27
16% OFF Phone Price : $12.27
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

Latch board parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47
13% OFF Phone Price : $7.47
In Stock
Microwave High-voltage Capacitor Strap 4810W4C003B
#5002

Oven interior parts diagram

Microwave high-voltage capacitor strap

Part #4810W4C003B

This item is not returnable
In Stock
Scoop 5024W1A001B
#8030

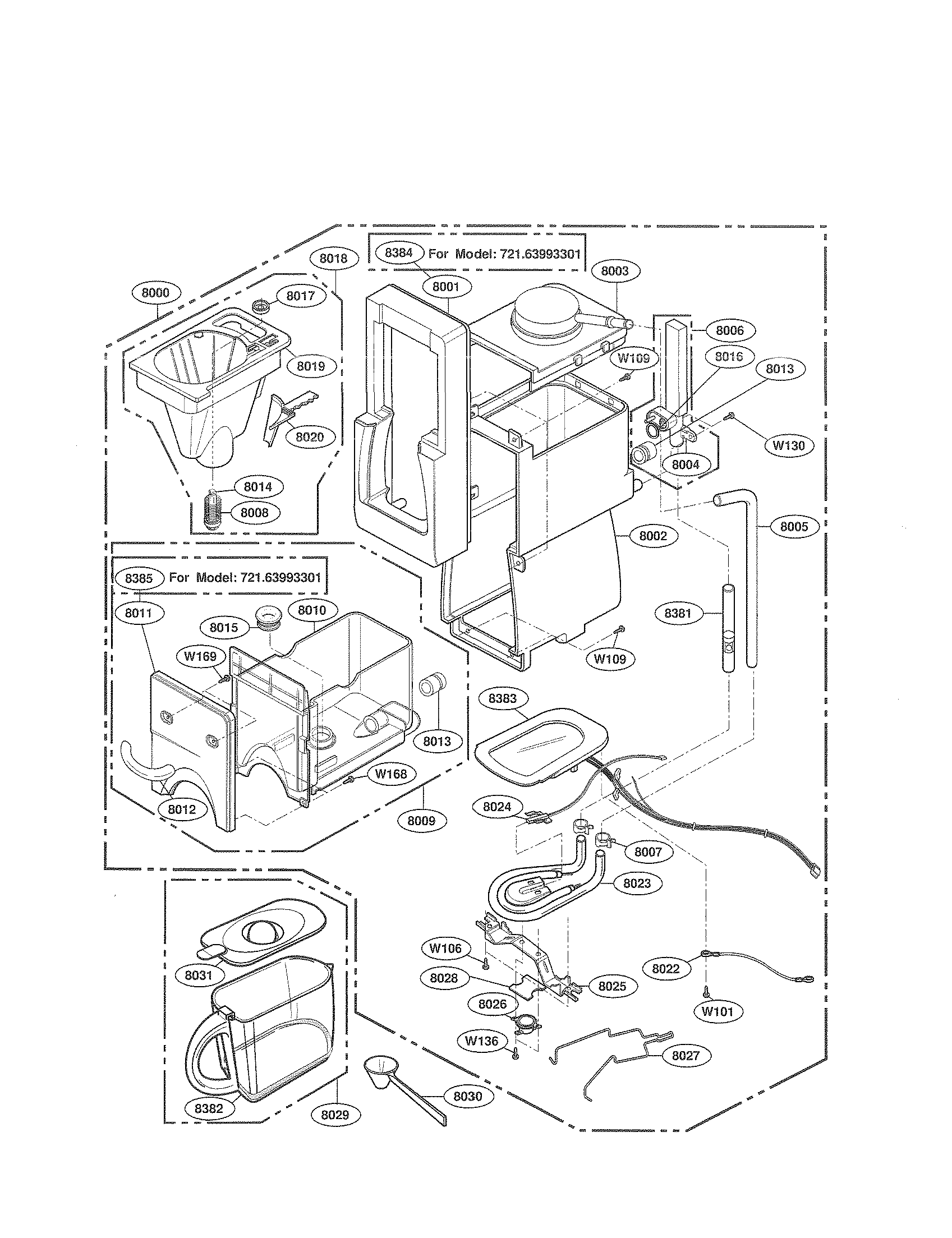

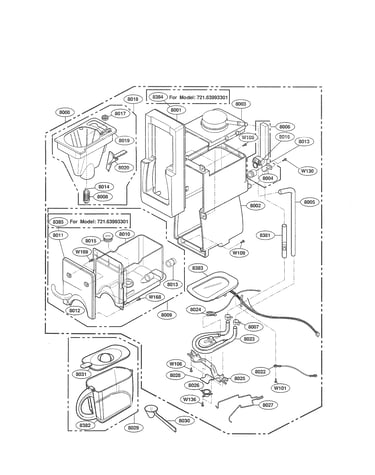

Coffee maker parts diagram

Scoop

Part #5024W1A001B

In Stock
Control Panel 3720W0C177E
#8001

Coffee maker parts diagram

Control panel

Part #3720W0C177E

In Stock
Cover 3550W1A231E
#8031

Coffee maker parts diagram

Cover

Part #3550W1A231E

In Stock
Pipe 5200W1A004B
#8004

Coffee maker parts diagram

Pipe

Part #5200W1A004B

In Stock
Screw 1EBF0402494
#W208

Oven interior parts diagram

Screw

Part #1EBF0402494

In Stock
