Model # 83129638 Official Lifestyler treadmill
Here are the diagrams and repair parts for Official Lifestyler 83129638 treadmill, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

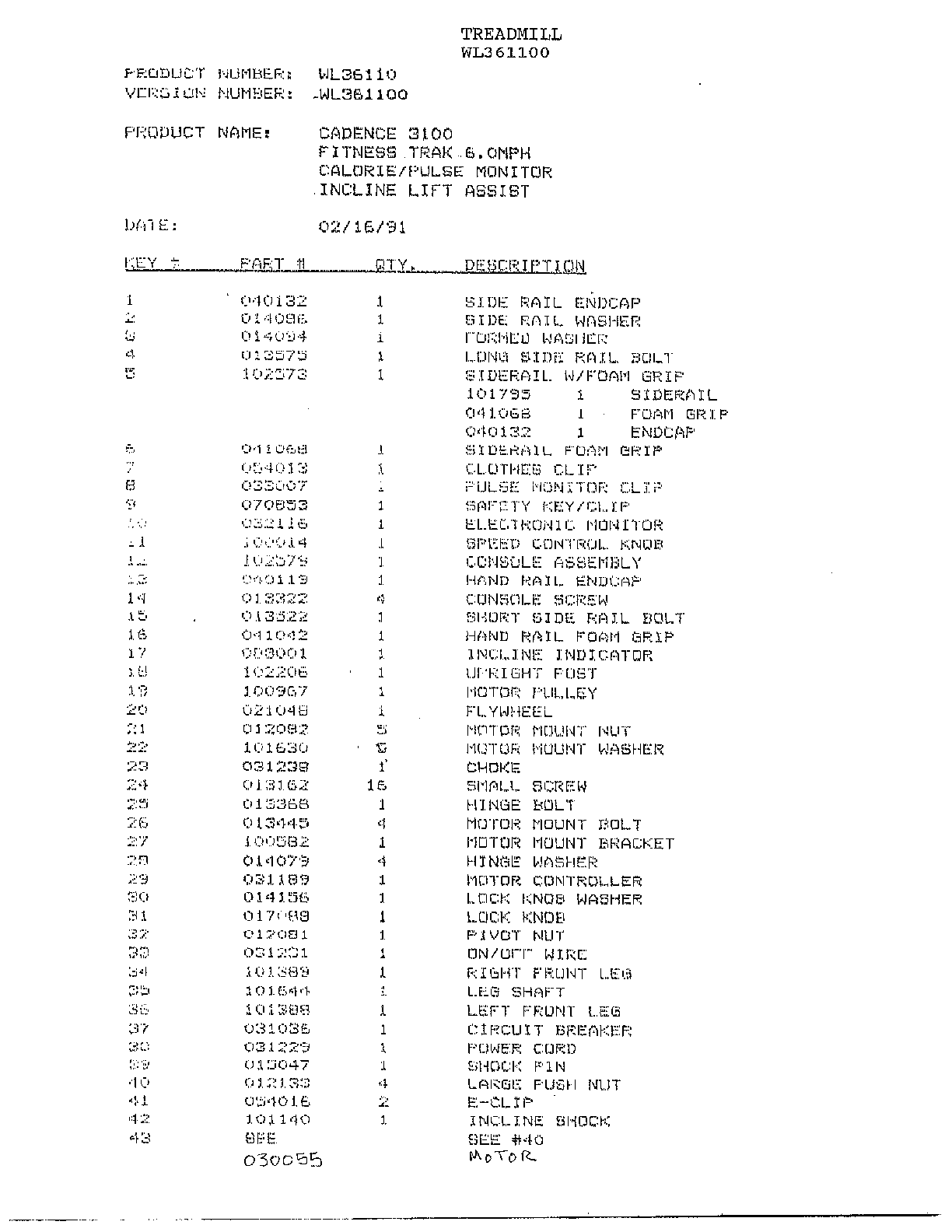

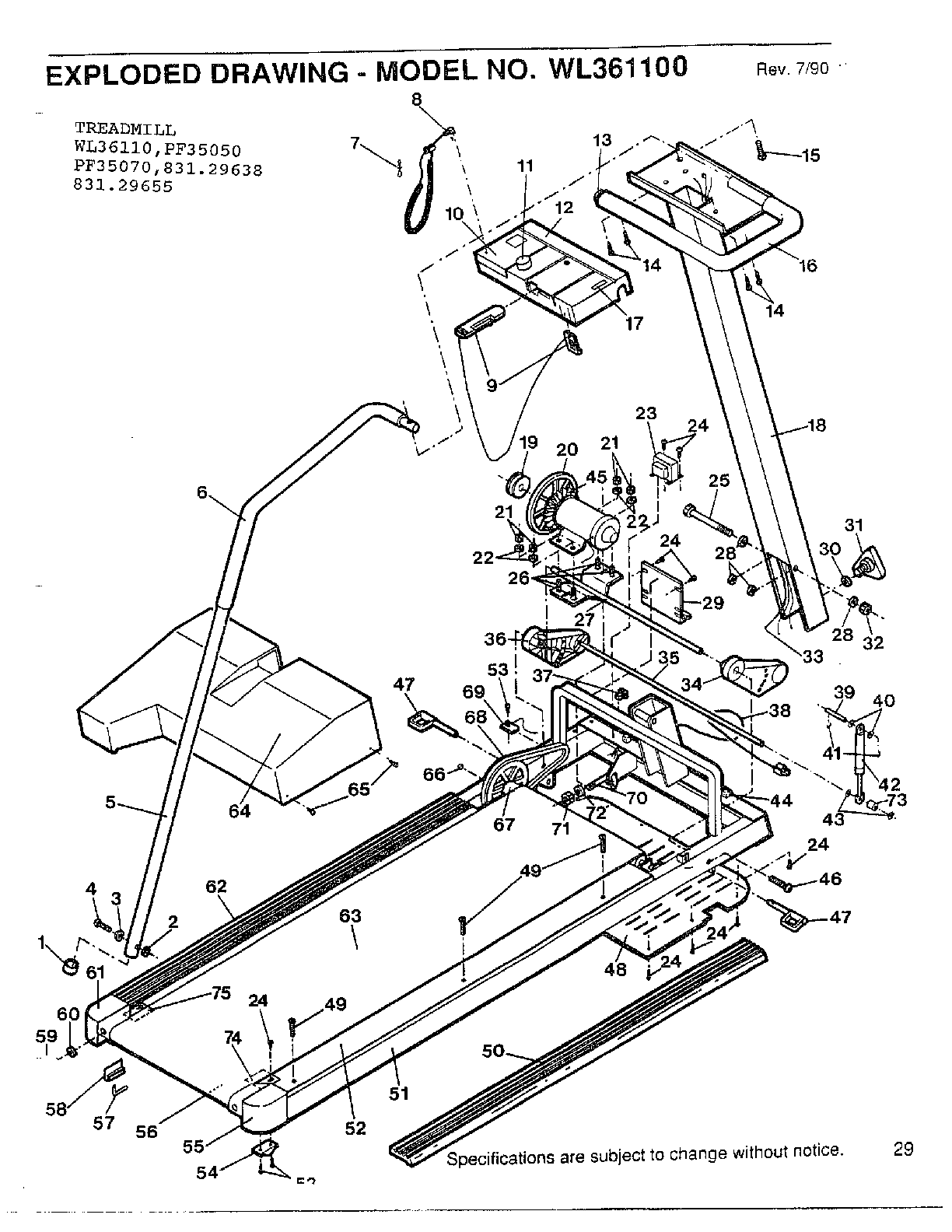

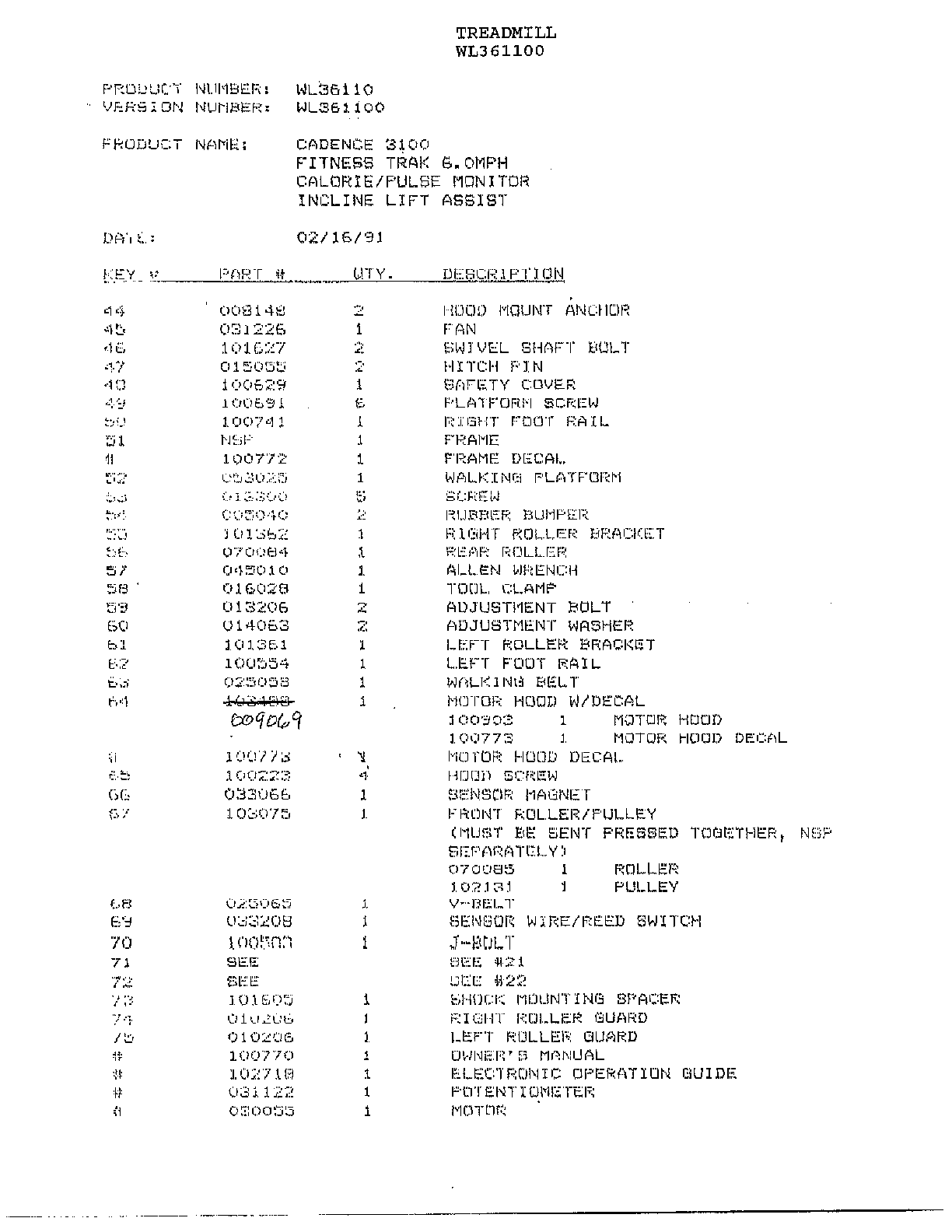

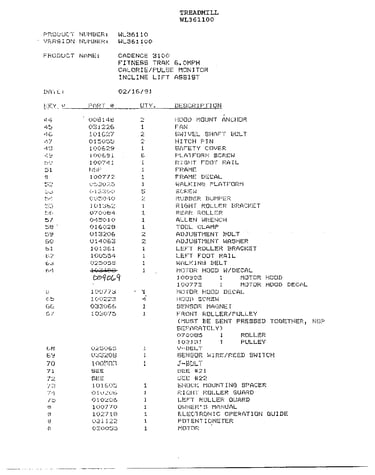

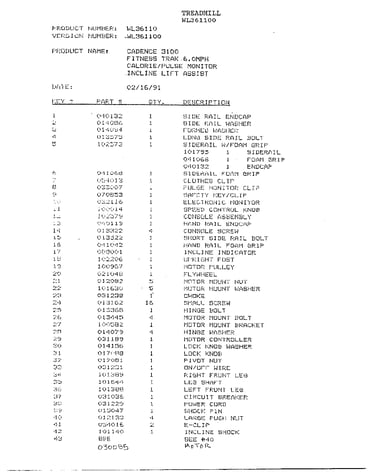

Model diagram and schematic
SEARCH WITHIN THIS MODEL
Symptoms for treadmills
Choose a symptom to see related treadmill repairs.
Main causes: no power, bad power cord, tripped or faulty overload switch, bad power switch, wiring failure, bad motor co…
Main causes: rear roller out of alignment, damaged walking belt, bad roller…
Main causes: missing safety key, bad control console, wiring failure, faulty motor control board, bad drive motor…
Main causes: faulty sensors, wiring failure, bad control console…
Main causes: bad control console, wiring failure, bad motor control board…
Main causes: damaged walking belt, improper belt tension, lack of belt lubricant, bad drive motor…
Main causes: damaged walking belt, improper belt tension, bad roller bearing…
Repair guides for treadmills
These step-by-step repair guides will help you safely fix what’s broken on your treadmill.
How to replace a treadmill motor controller
Your treadmill motor won't run with a defective motor controller. Replace the motor controller if it doesn't operate the…
How to replace a treadmill walking belt
A worn walking belt will begin to slow down during use. If your treadmill walking belt is worn out, replace it using the…
How to replace a treadmill drive motor
A defective drive motor won't run when activated by the motor controller. Replace the treadmill drive motor if it doesn'…
