Model # 629756880 Official Kenmore gas wall furnace

Here are the diagrams and repair parts for Official Kenmore 629756880 gas wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

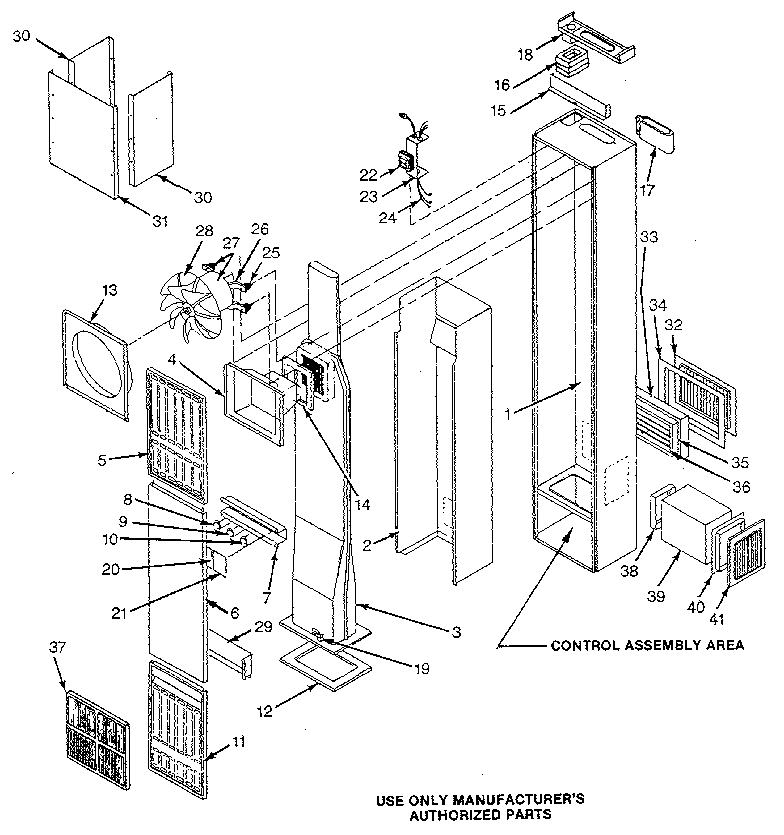

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Base Gasket P026500

#12

All parts diagram

Base gasket

Part #P026500

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Burner P179900

#48D

All parts diagram

Furnace pilot burner

Part #P179900

The manufacturer no longer makes this part, and there's no substitute part

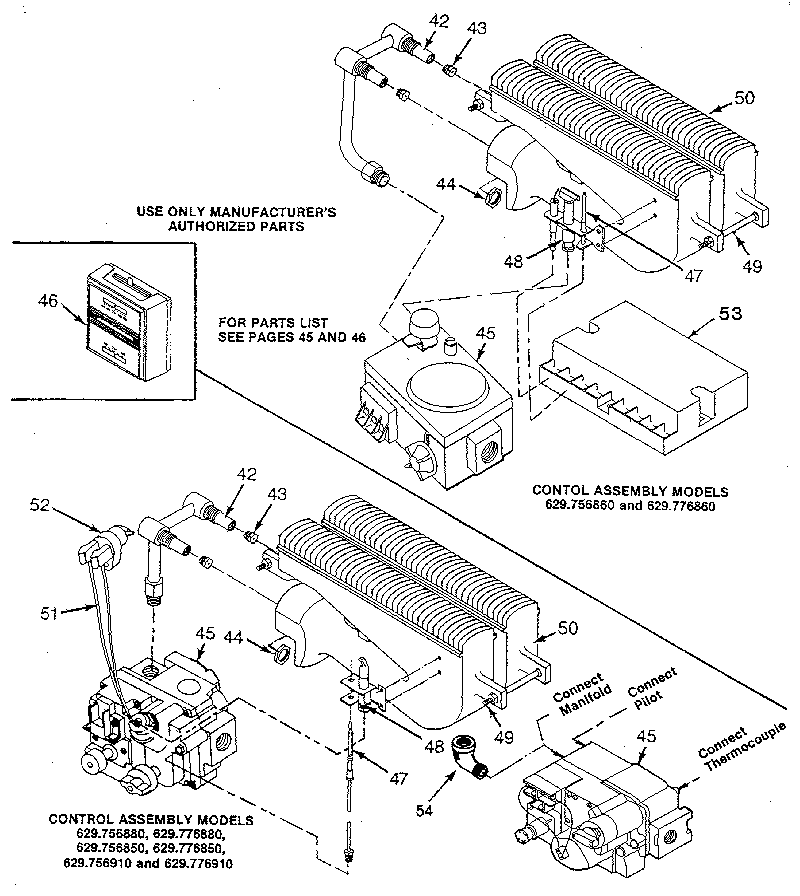

Liner Assembly 11B46

#2A

All parts diagram

Liner assembly

Part #11B46

The manufacturer no longer makes this part, and there's no substitute part

Select Switch P296201

#9C

All parts diagram

Select switch

Part #P296201

The manufacturer no longer makes this part, and there's no substitute part

Outer Casing 7C55-2

#1A

All parts diagram

Outer casing

Part #7C55-2

The manufacturer no longer makes this part, and there's no substitute part

Fan Gasket P028300

#14

All parts diagram

Fan gasket

Part #P028300

The manufacturer no longer makes this part, and there's no substitute part

Furnace Transformer P024200

#22

All parts diagram

Furnace transformer

Part #P024200

The manufacturer no longer makes this part, and there's no substitute part

Switch Box 11B05

#7

All parts diagram

Switch box

Part #11B05

The manufacturer no longer makes this part, and there's no substitute part

Comb Chamber 7C69

#3A

All parts diagram

Comb chamber

Part #7C69

The manufacturer no longer makes this part, and there's no substitute part

Burn Spacer P018100

#49

All parts diagram

Burn spacer

Part #P018100

The manufacturer no longer makes this part, and there's no substitute part
