Model # MW8300XL2 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MW8300XL2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

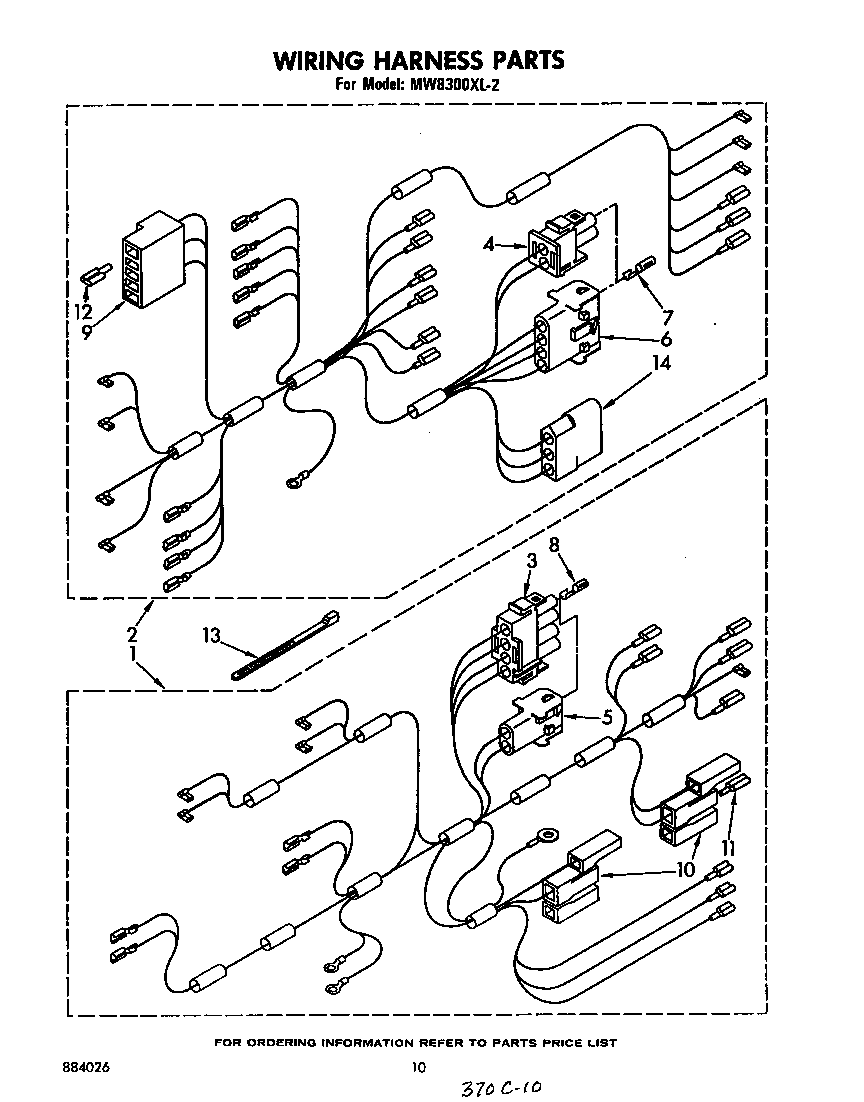

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Light Bulb 311255
#20

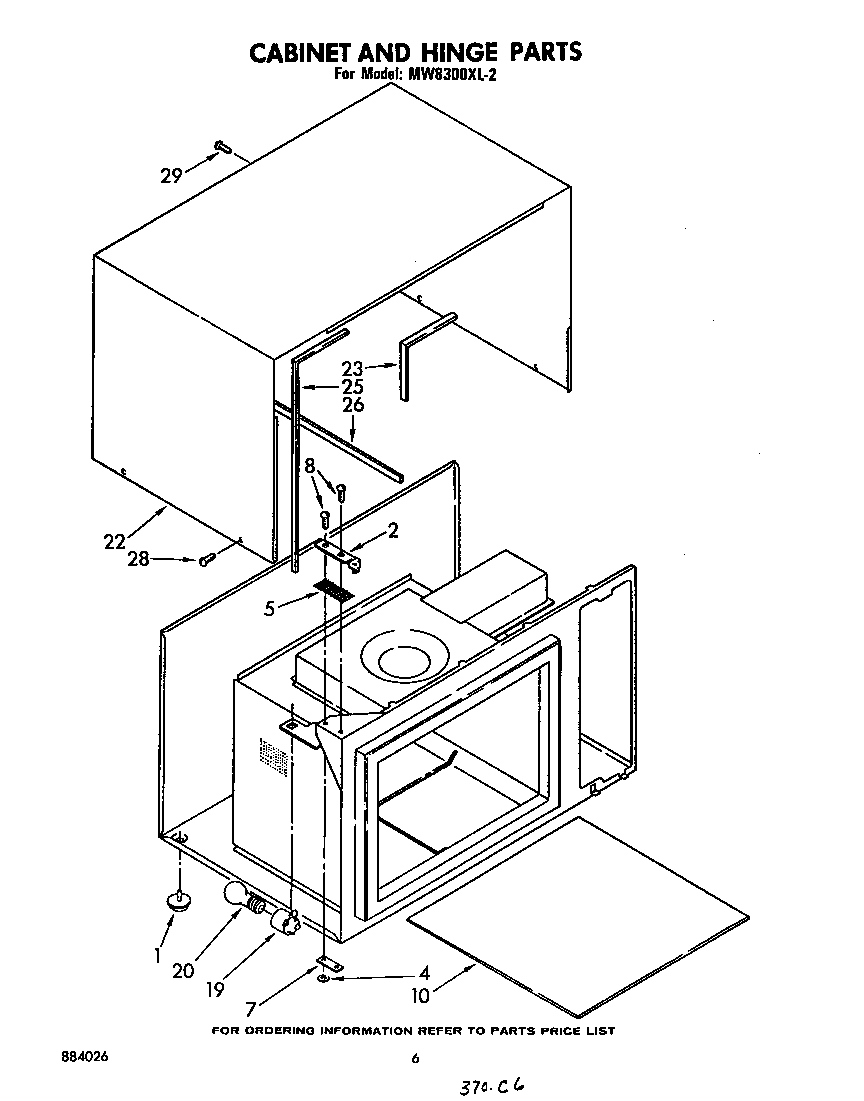

Cabinet and hinge diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Seal 311956
#24

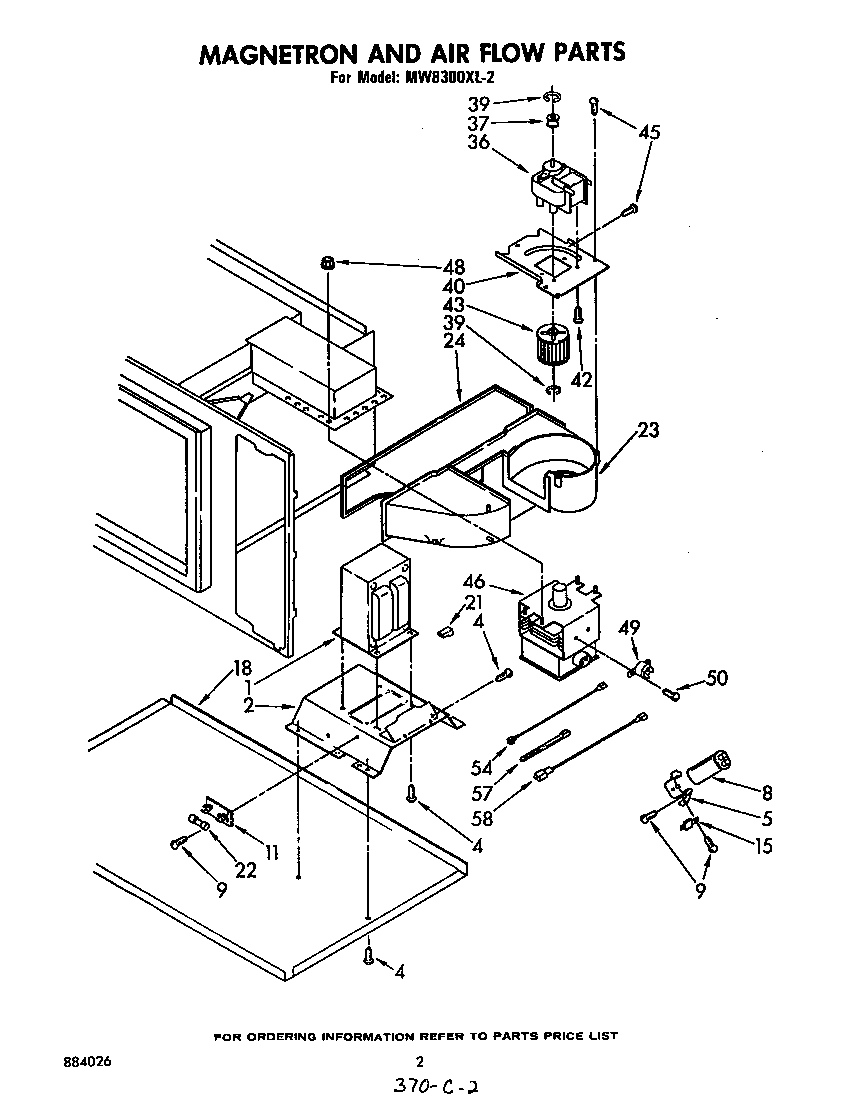

Magnetron and air flow diagram

Seal

Part #311956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 311956. Substitute parts can look different from the original.
BEST SELLER
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Magnetron 311994
#46C

Magnetron and air flow diagram

Magnetron

Part #311994

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311993
#46B

Magnetron and air flow diagram

Magnetron

Part #311993

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311992
#46A

Magnetron and air flow diagram

Magnetron

Part #311992

The manufacturer no longer makes this part, and there's no substitute part

Screw 253549
#29

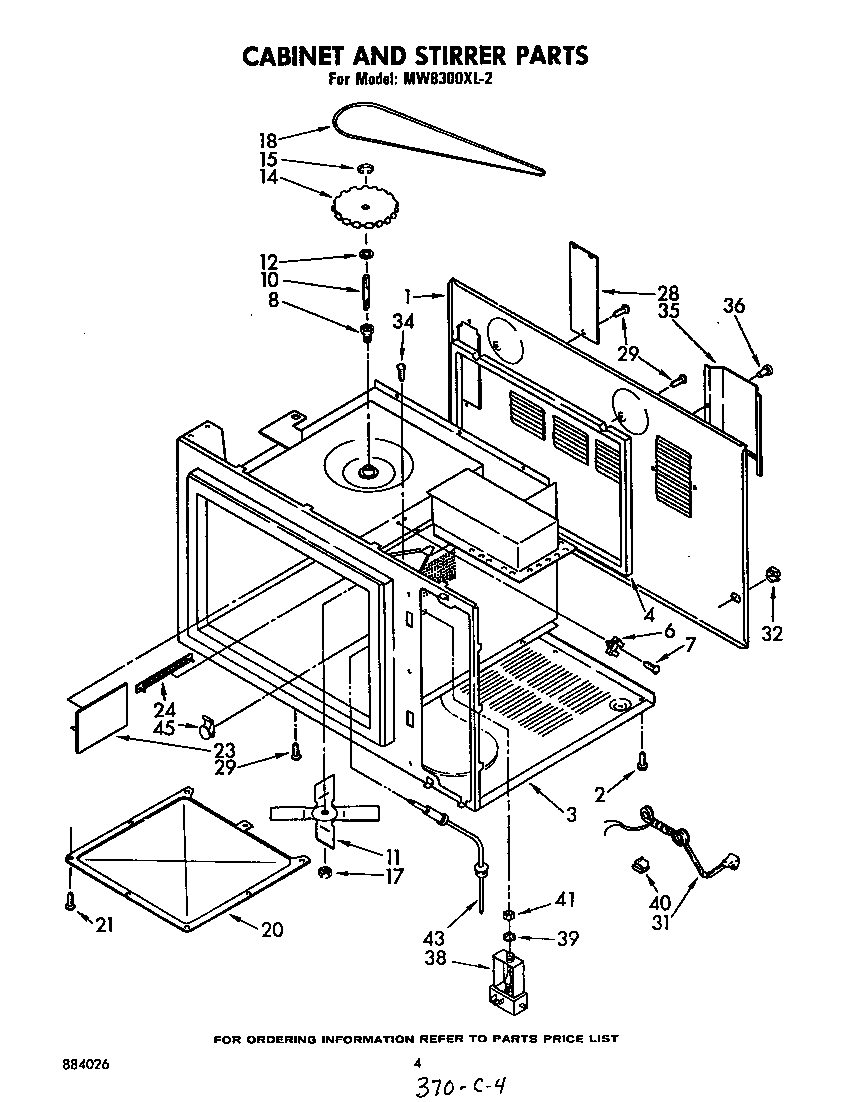

Cabinet and stirrer diagram

Screw

Part #253549

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 253549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 309965
#4

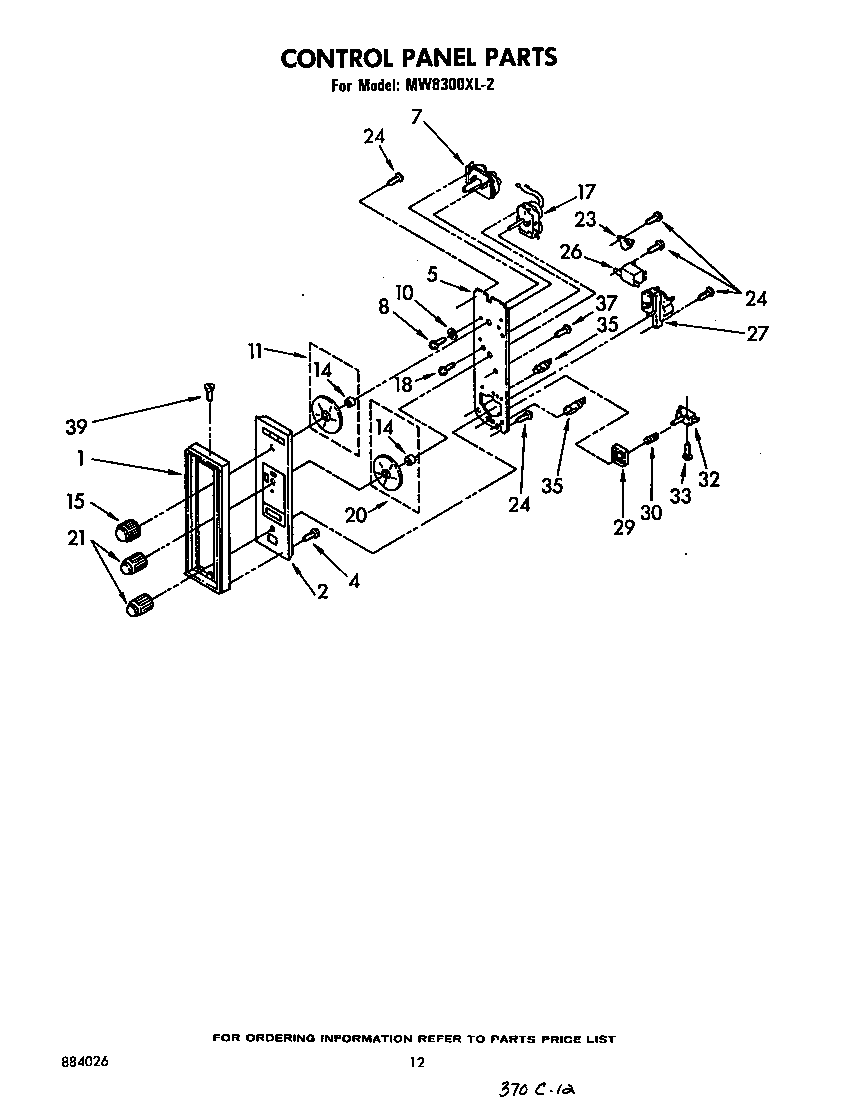

Control panel diagram

Screw

Part #309965

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 309965. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Screw 338156
#39

Control panel diagram

Screw

Part #338156

Replaced by #WP488627

?
Manufacturer substitution
This part replaces 338156. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Screw 311722
#37

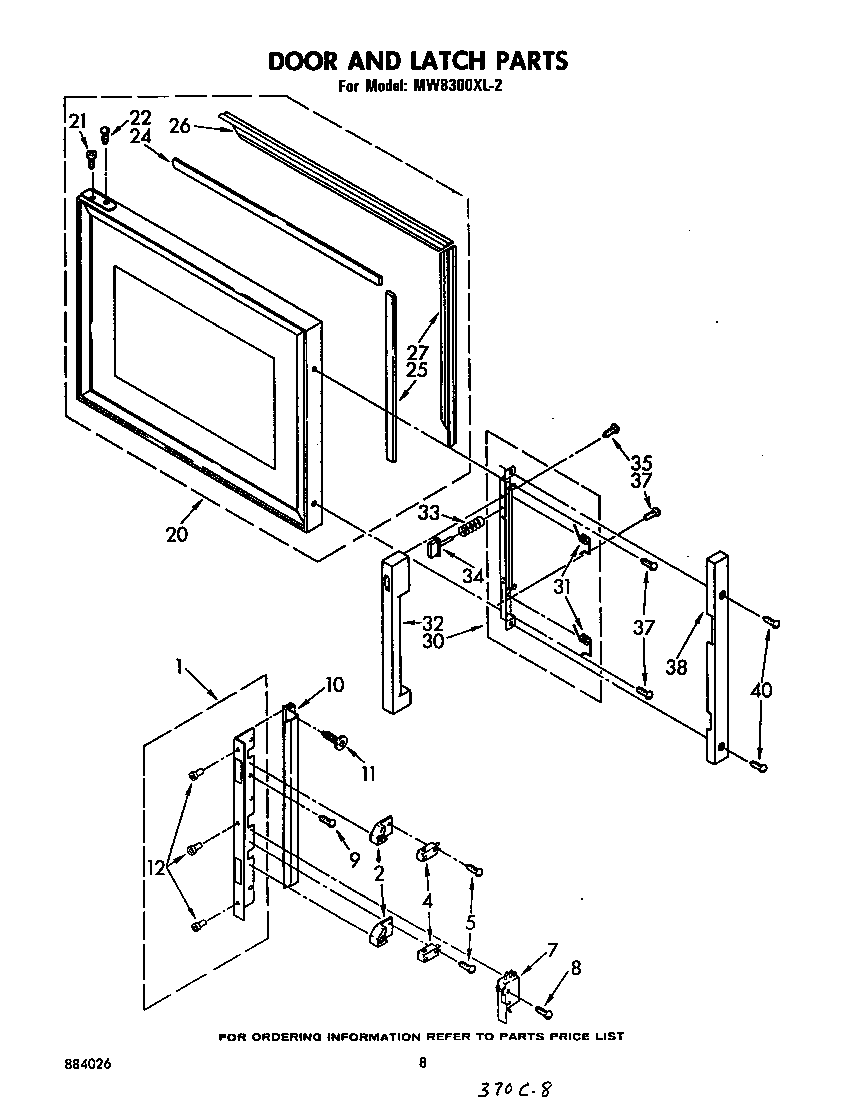

Door and latch diagram

Screw

Part #311722

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 311722. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
