Maytag
Dryer

Model # 4KMEDC430JW0 Official Maytag dryer

Here are the diagrams and repair parts for Official Maytag 4KMEDC430JW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Dryer Thermal Fuse 3392519
#7

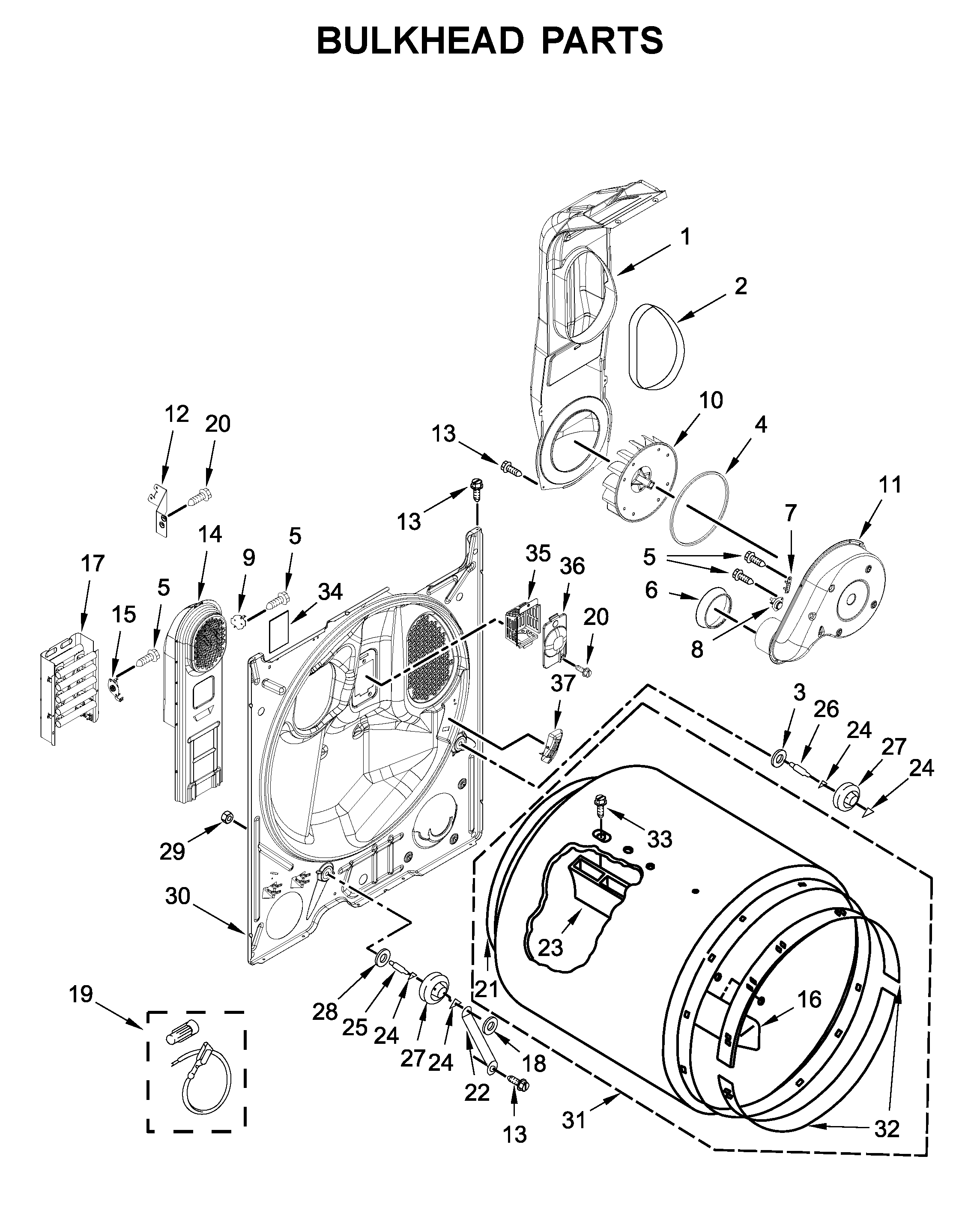

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Support W10756057
#27

Bulkhead parts diagram

Support

Part #W10756057

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10756057. Substitute parts can look different from the original.
BEST SELLER
$15.77 |
11% OFF Phone Price : $17.77
In Stock
Dryer Idler Pulley 691366
#36

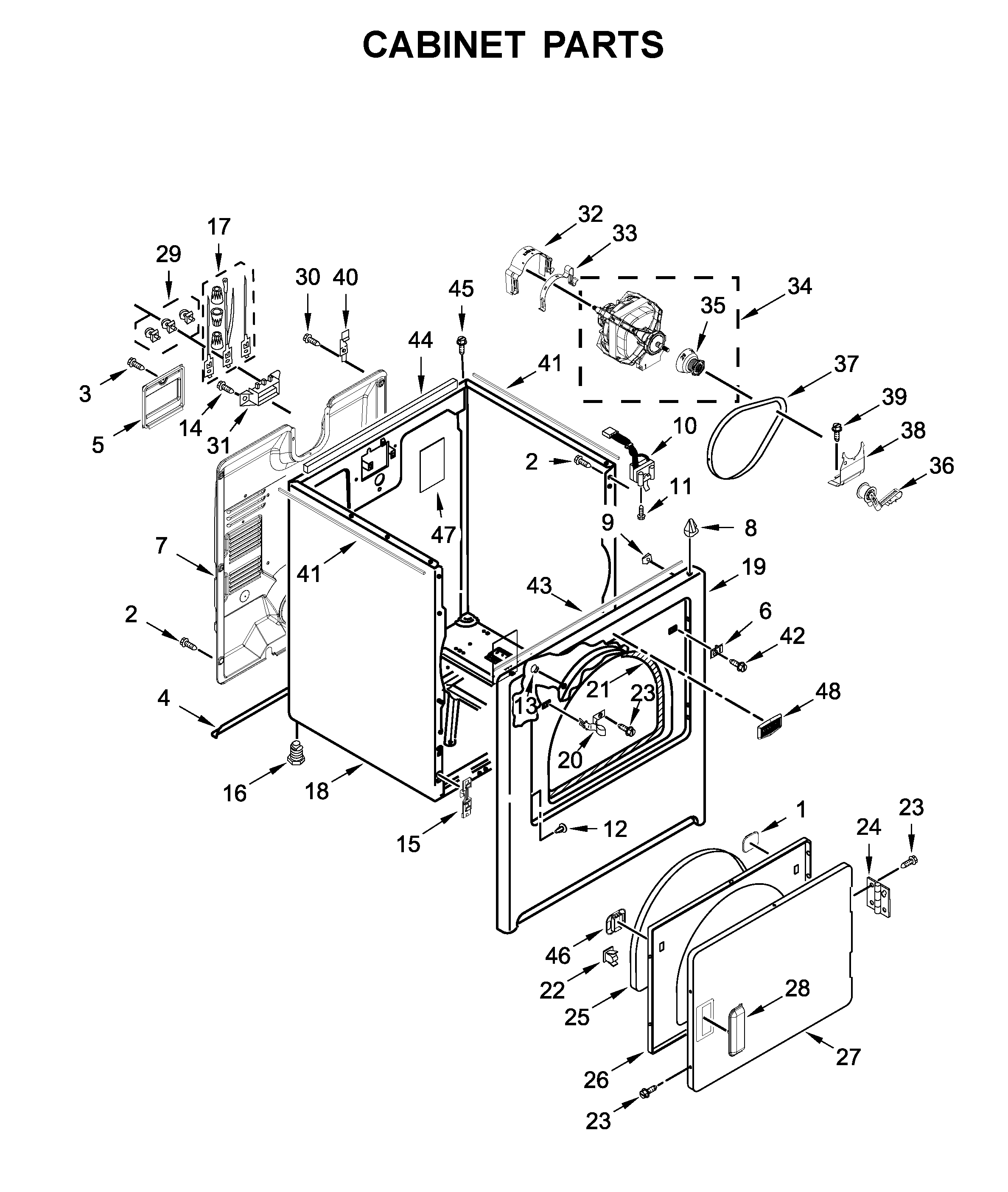

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Dryer Blower Wheel 694089
#10

Bulkhead parts diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Dryer Lint Screen W10717210
#17

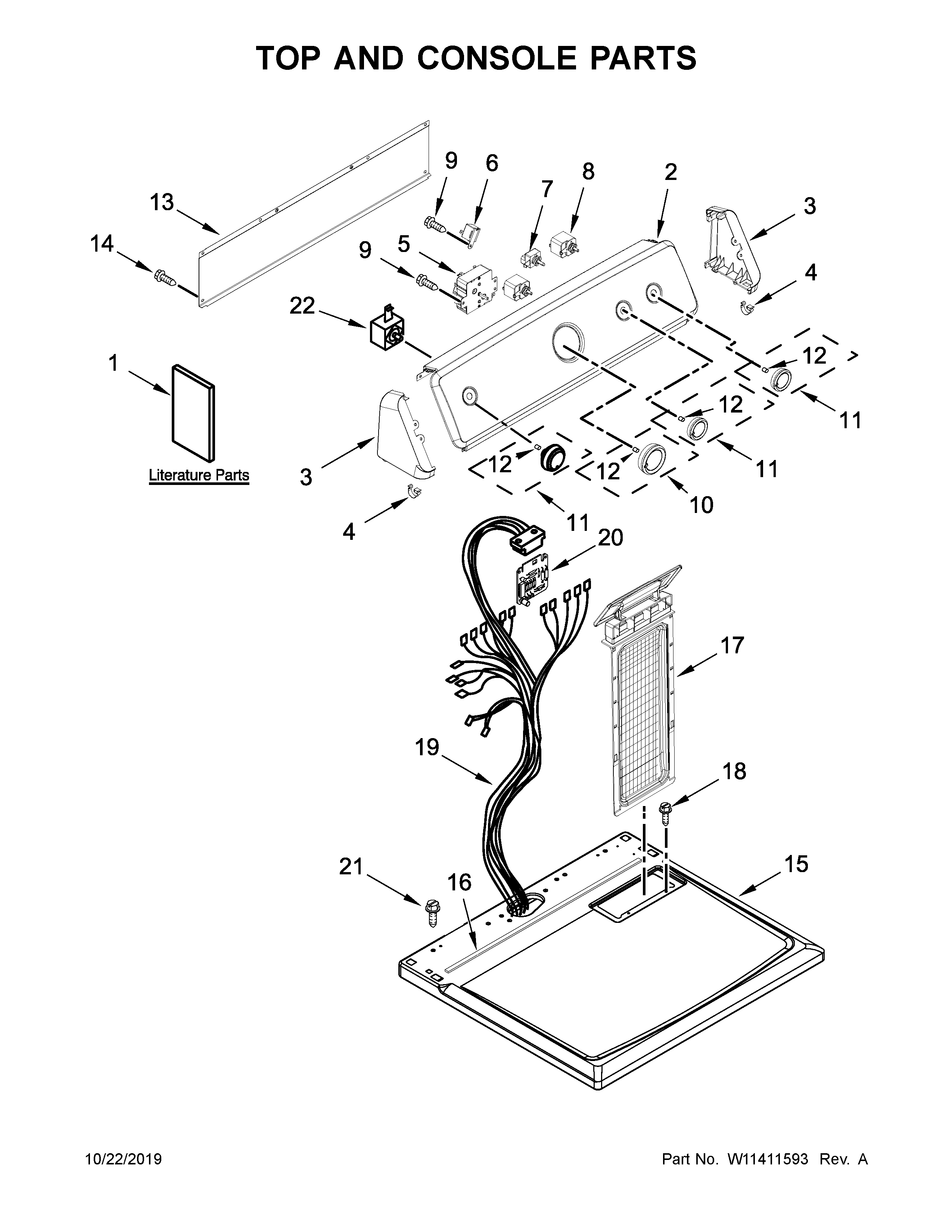

Top and console parts diagram

Dryer lint screen

Part #W10717210

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces W10717210. Substitute parts can look different from the original.
BEST SELLER
$33.96 |
15% OFF Phone Price : $39.96
In Stock
Dryer High-limit Thermostat 3977767
#15

Bulkhead parts diagram

Dryer high-limit thermostat

Part #3977767

Replaced by #WP3977767

?
Manufacturer substitution
This part replaces 3977767. Substitute parts can look different from the original.
BEST SELLER
$17.27 |
10% OFF Phone Price : $19.27
In Stock
Dryer Door Handle W10714516
#28

Cabinet parts diagram

Dryer door handle

Part #W10714516

Replaced by #W10861225

?
Manufacturer substitution
This part replaces W10714516. Substitute parts can look different from the original.
BEST SELLER
$32.08 |
16% OFF Phone Price : $38.08
In Stock
Dryer Timer W10185982
#5

Top and console parts diagram

Dryer timer

Part #W10185982

Replaced by #WPW10185982

?
Manufacturer substitution
This part replaces W10185982. Substitute parts can look different from the original.
BEST SELLER
$83.94 |
7% OFF Phone Price : $89.94
In Stock
Dryer Support Roller Tri-ring Washer W10512946
#24

Bulkhead parts diagram

Dryer support roller tri-ring washer

Part #W10512946

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
