Kenmore
Room Air Conditioner

Model # 1068750500 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 1068750500 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

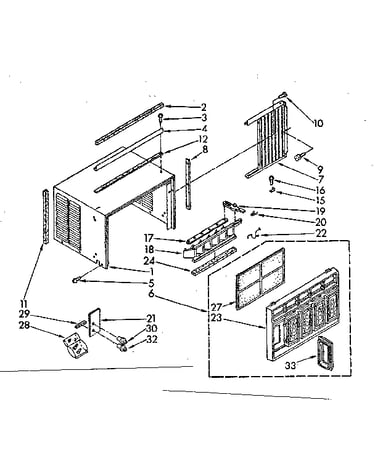

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Cement 797403

#NI

All parts diagram

Cement

Part #797403

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 797403. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve 876620

#NI

All parts diagram

Valve

Part #876620

Replaced by #876764

?
Manufacturer substitution
This part replaces 876620. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978030

#NI

All parts diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Refrigerant Access Valve, 5/8-in 978029

#NI

All parts diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Grommet 950212
#22

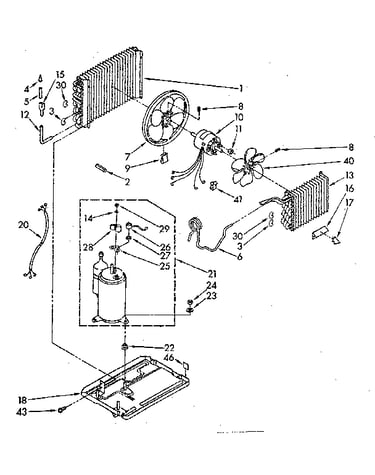

Unit parts diagram

Grommet

Part #950212

Replaced by #WP1188564

?
Manufacturer substitution
This part replaces 950212. Substitute parts can look different from the original.
$25.83
In Stock
Bend 855199
#3

Unit parts diagram

Bend

Part #855199

Replaced by #WP855199

?
Manufacturer substitution
This part replaces 855199. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Washer 489108
#23

Unit parts diagram

Washer

Part #489108

Replaced by #90315

?
Manufacturer substitution
This part replaces 489108. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Ground Wire 856094
#18

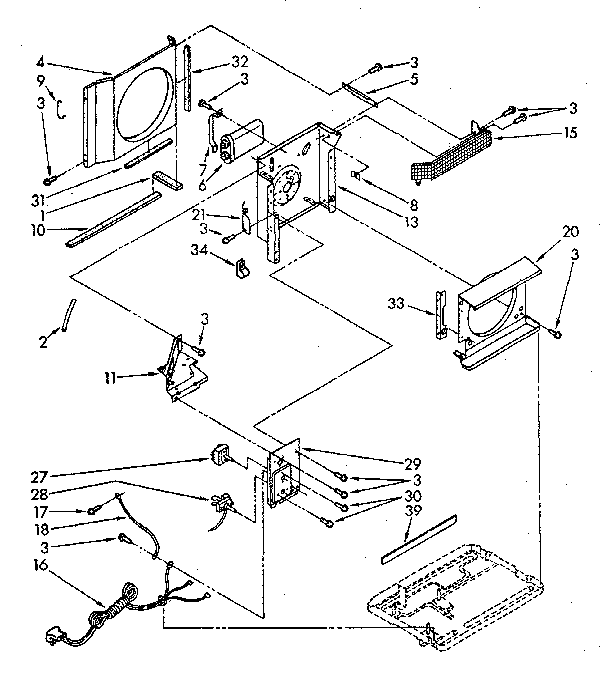

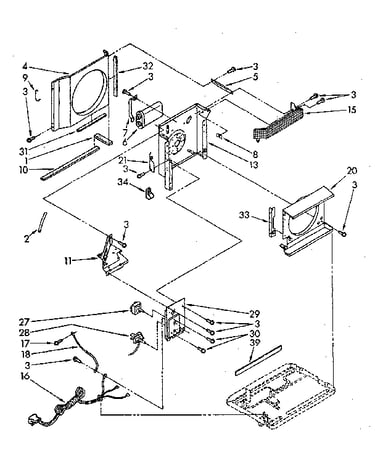

Air flow and control parts diagram

Ground wire

Part #856094

Replaced by #857078

?
Manufacturer substitution
This part replaces 856094. Substitute parts can look different from the original.
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Seal 852063
#31

Air flow and control parts diagram

Seal

Part #852063

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 852063. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
