Model # 257796361 Official Craftsman electric blower

Here are the diagrams and repair parts for Official Craftsman 257796361 electric blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

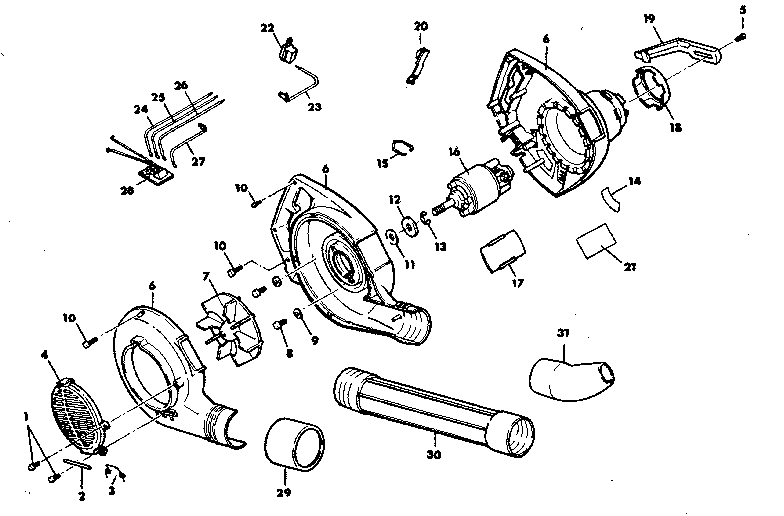

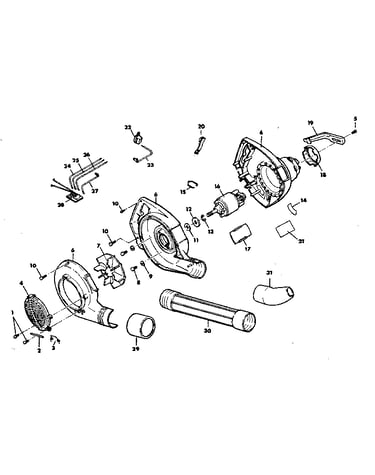

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Plate 7810-0-28

#17

All parts diagram

Plate

Part #7810-0-28

The manufacturer no longer makes this part, and there's no substitute part

Screw 2567

#10

All parts diagram

Screw

Part #2567

The manufacturer no longer makes this part, and there's no substitute part

Label 8661-1

#14

All parts diagram

Label

Part #8661-1

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 4084-15

#29

All parts diagram

Sleeve

Part #4084-15

The manufacturer no longer makes this part, and there's no substitute part

End Bell 2276-1

#33

All parts diagram

End bell

Part #2276-1

The manufacturer no longer makes this part, and there's no substitute part

Outlet Tube 3527-05

#30

All parts diagram

Outlet tube

Part #3527-05

The manufacturer no longer makes this part, and there's no substitute part

Screw 1847

#5

All parts diagram

Screw

Part #1847

The manufacturer no longer makes this part, and there's no substitute part

Leadwire Assy. (black) 8602-1

#24

All parts diagram

Leadwire assy. (black)

Part #8602-1

The manufacturer no longer makes this part, and there's no substitute part

Spring 2280

#42

All parts diagram

Spring

Part #2280

The manufacturer no longer makes this part, and there's no substitute part

Ring 7807-05

#18

All parts diagram

Ring

Part #7807-05

The manufacturer no longer makes this part, and there's no substitute part
