Model # I2505 Official Proctor Silex travel iron

Here are the diagrams and repair parts for Official Proctor Silex I2505 travel iron, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Storage Pouch (red) 991074

#NI

All parts diagram

Storage pouch (red)

Part #991074

The manufacturer no longer makes this part, and there's no substitute part

Knob, Adjusting (white), Includes Ref. #2 990014
#3

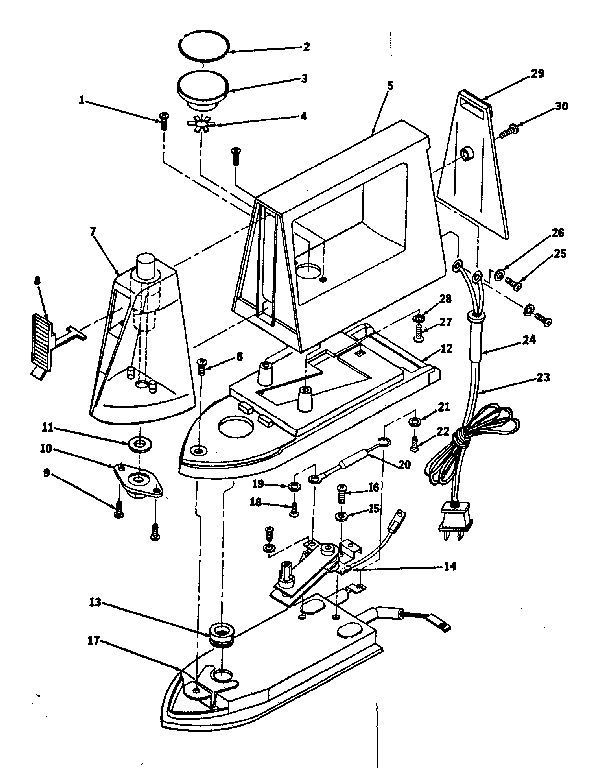

Replacement parts diagram

Knob, adjusting (white), includes ref. #2

Part #990014

The manufacturer no longer makes this part, and there's no substitute part

Soleplate, Includes Ref. #13 990753
#17

Replacement parts diagram

Soleplate, includes ref. #13

Part #990753

The manufacturer no longer makes this part, and there's no substitute part

Thermostat (includes Thermal Cut Off, Ref. #20) 990701
#14

Replacement parts diagram

Thermostat (includes thermal cut off, ref. #20)

Part #990701

The manufacturer no longer makes this part, and there's no substitute part

Handle (purple) 990022
#5B

Replacement parts diagram

Handle (purple)

Part #990022

The manufacturer no longer makes this part, and there's no substitute part

Screw, Countersink Head, 1/4" Length, Stainless Steel Self Tapping, Seal Cover To Reservoir 990700
#9

Replacement parts diagram

Screw, countersink head, 1/4" length, stainless steel self tapping, seal cover to reservoir

Part #990700

The manufacturer no longer makes this part, and there's no substitute part

Reservoir, Includes Ref. #9, 10 & 11 990030
#7

Replacement parts diagram

Reservoir, includes ref. #9, 10 & 11

Part #990030

The manufacturer no longer makes this part, and there's no substitute part

Stopper, Reservoir 990058
#8

Replacement parts diagram

Stopper, reservoir

Part #990058

The manufacturer no longer makes this part, and there's no substitute part

Handle (blue) 990023
#5C

Replacement parts diagram

Handle (blue)

Part #990023

The manufacturer no longer makes this part, and there's no substitute part

(l/p) Screw, 6-18 X 3/8", Pan Hd. Ph. S.t., Body To Panel (top Rear Of Body-outer Screw) (one Per Panel) N/P
#20

Replacement parts diagram

(l/p) screw, 6-18 x 3/8", pan hd. ph. s.t., body to panel (top rear of body-outer screw) (one per panel)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
