Kenmore
Room Air Conditioner

Model # 58073103200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58073103200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Friedrich Room Air Conditioner Fan Motor Capacitor 6120AR2194K
#8-B

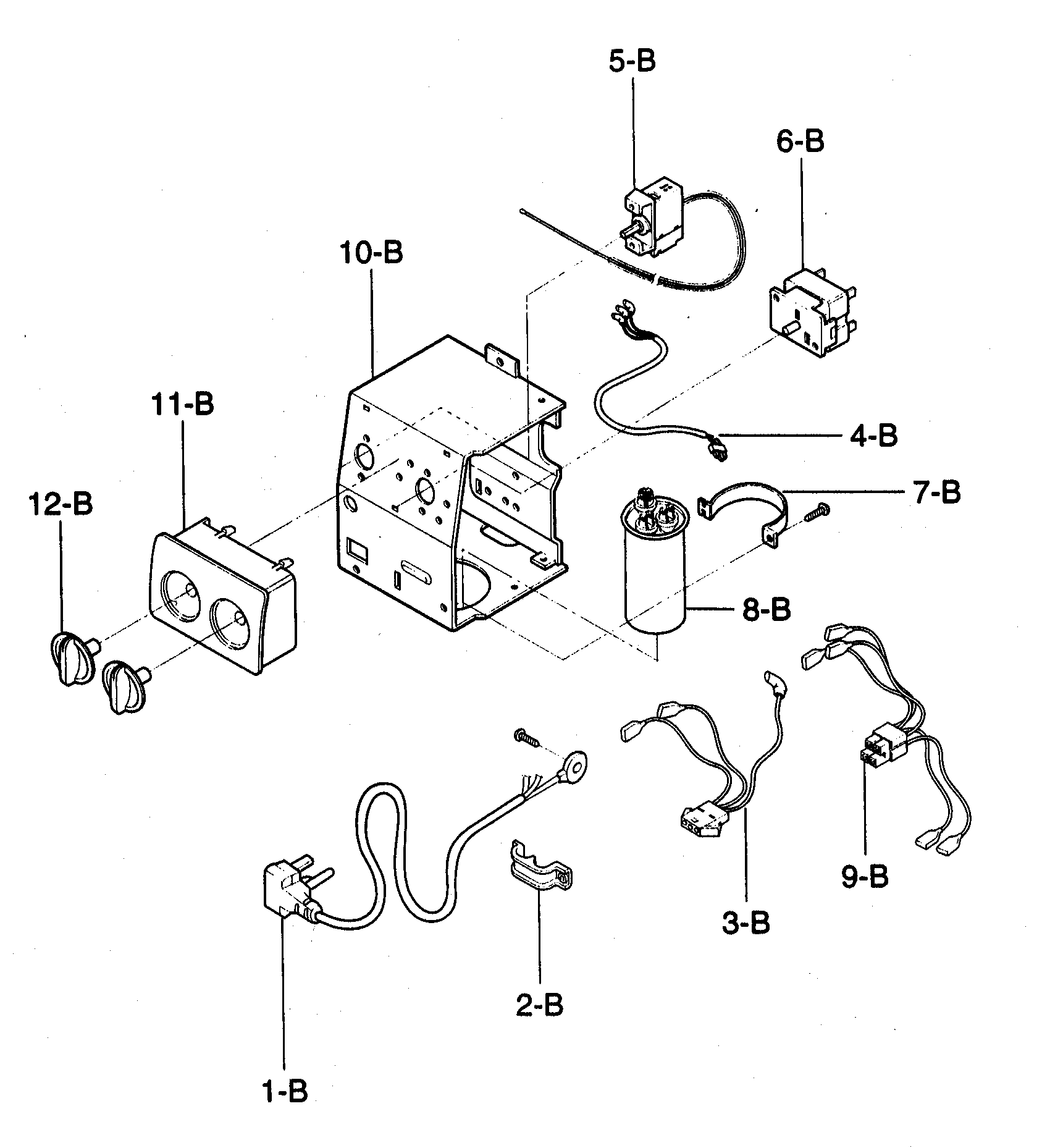

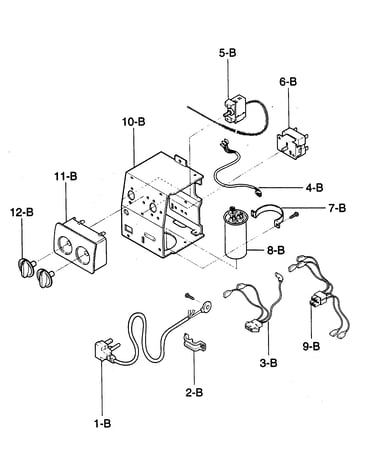

Control box assy diagram

Friedrich room air conditioner fan motor capacitor

Part #6120AR2194K

$38.30 |
14% OFF Phone Price : $44.30
In Stock
Room Air Conditioner Evaporator Fan Blade 5900A20009A
#3-C

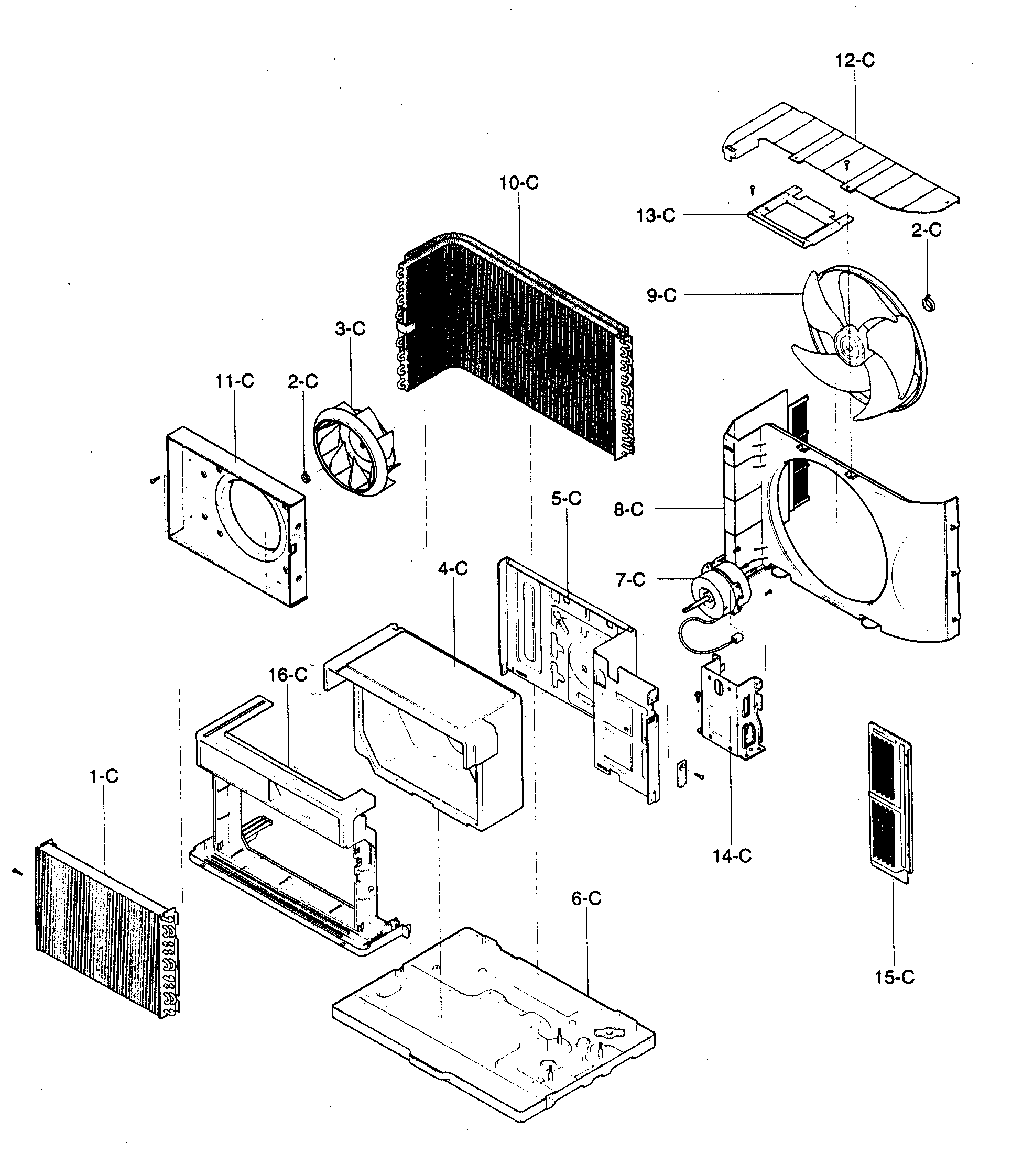

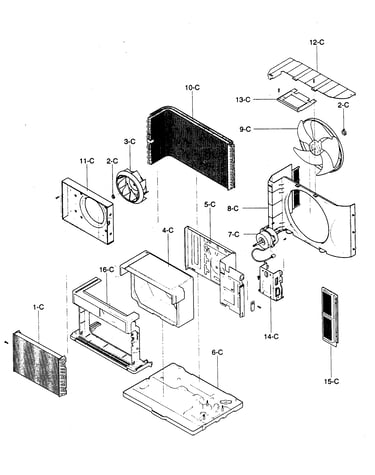

Air handling/cycle parts diagram

Room air conditioner evaporator fan blade

Part #5900A20009A

Replaced by #5900A20009E

?
Manufacturer substitution
This part replaces 5900A20009A. Substitute parts can look different from the original.
$29.57 |
17% OFF Phone Price : $35.57
In Stock
Thermostat 2H01109M
#5-B

Control box assy diagram

Thermostat

Part #2H01109M

Replaced by #2H01109L

?
Manufacturer substitution
This part replaces 2H01109M. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Front Trim 4918A20001A
#1-E

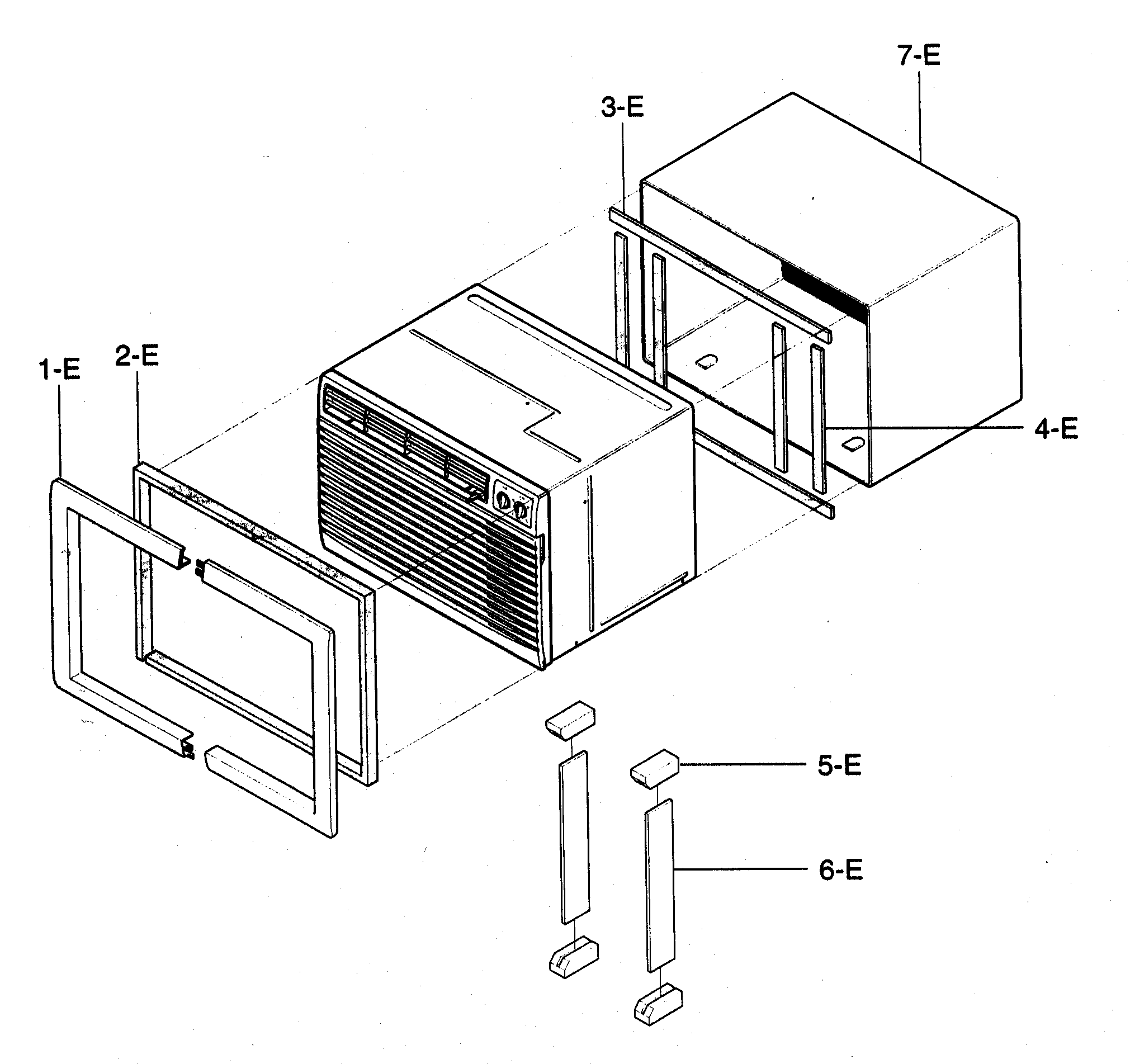

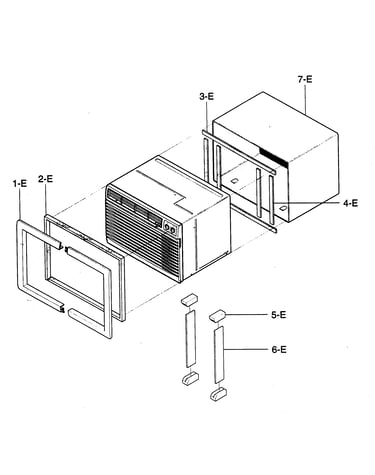

Installation kit assy diagram

Room air conditioner front trim

Part #4918A20001A

This item is not returnable
$24.09
In Stock
Icp Room Air Conditioner Compressor Grommet 4H00982E
#9-D

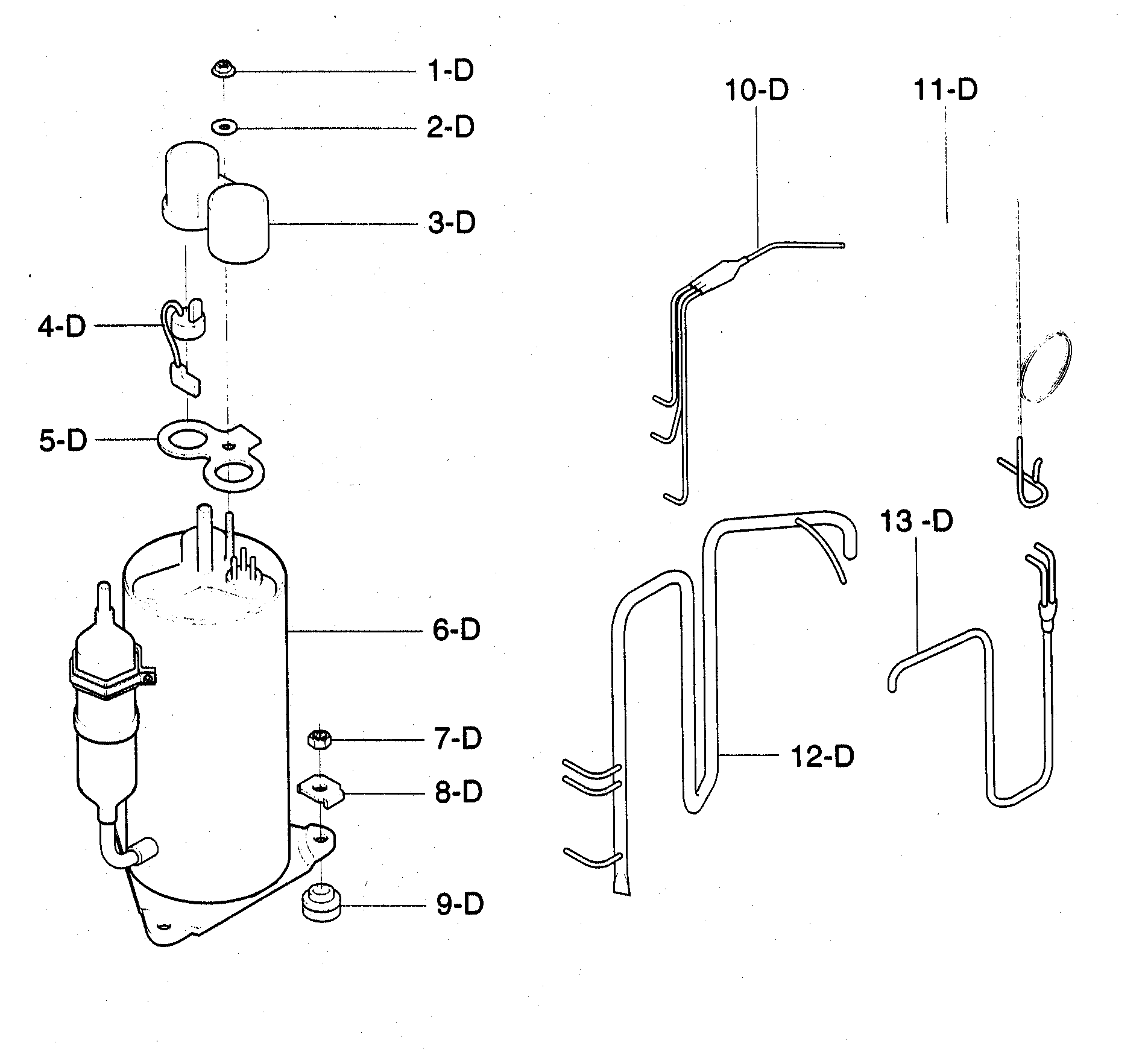

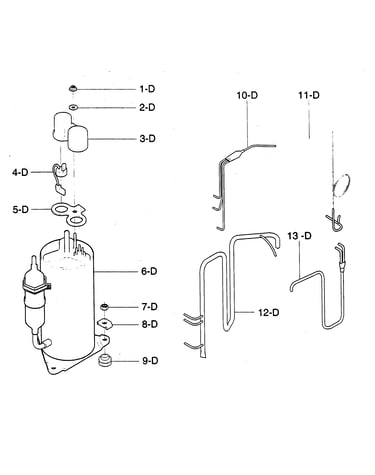

Compressor parts diagram

Icp room air conditioner compressor grommet

Part #4H00982E

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Rotary Switch 2H00598E
#6-B

Control box assy diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Cabinet 3090A20003B
#1-A

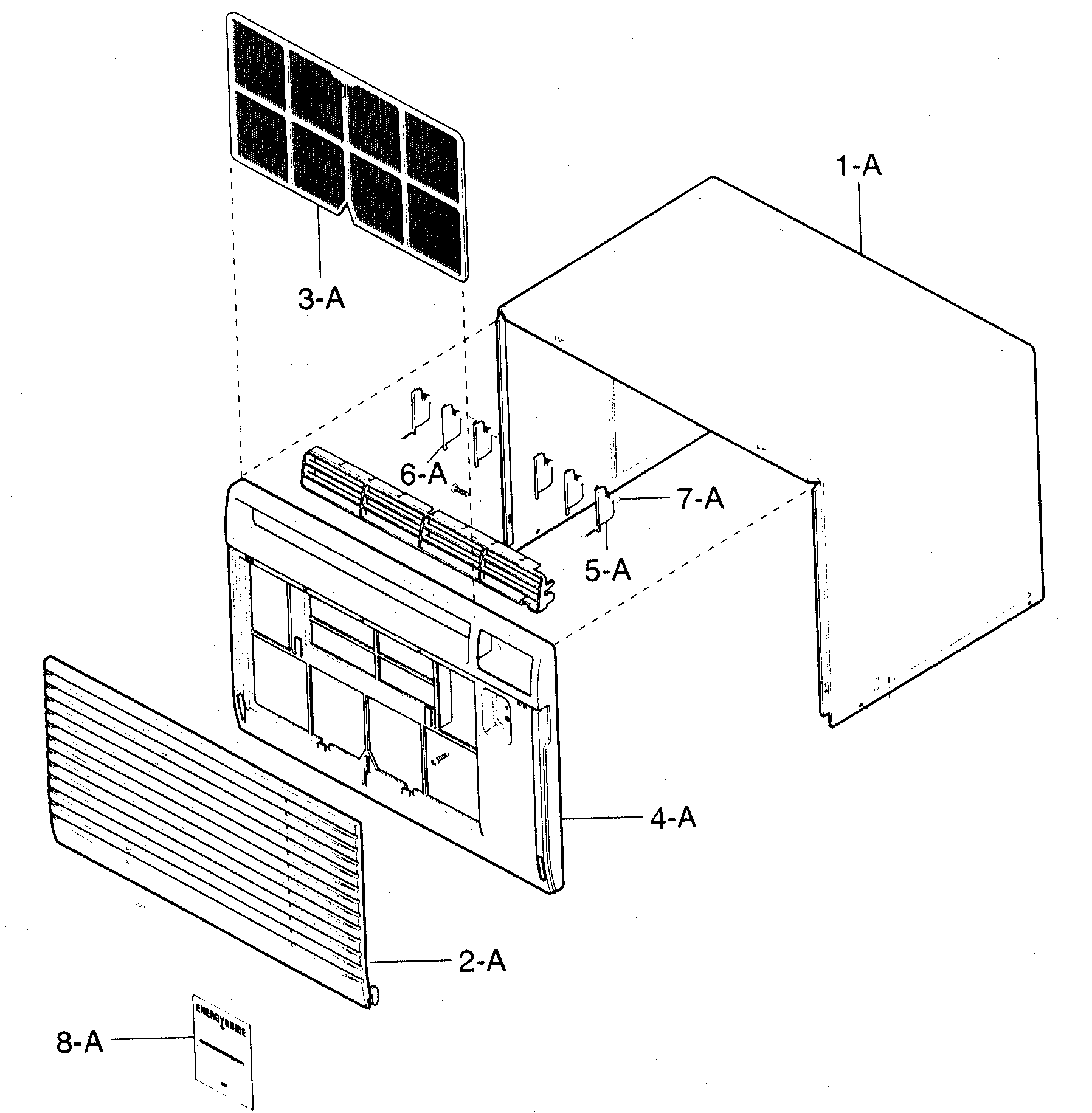

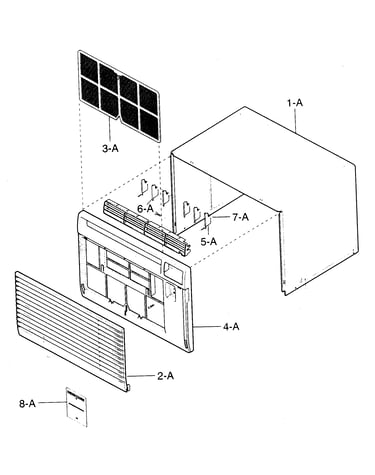

Cabinet/front grille assy diagram

Cabinet

Part #3090A20003B

$88.36
In Stock
Mech Sheet 3858A20001A
#6-E

Installation kit assy diagram

Mech sheet

Part #3858A20001A

This item is not returnable
$4.84
In Stock
Brace 4800A30002A
#13-C

Air handling/cycle parts diagram

Brace

Part #4800A30002A

This item is not returnable
$7.00
In Stock
