Model # HT-SB60 Official Sharp audio speakers

Here are the diagrams and repair parts for Official Sharp HT-SB60 audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Power Cord QACCDA010AWZZ
Power cord

Part #QACCDA010AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Wool,white PKYU-A050AWZZ
#224

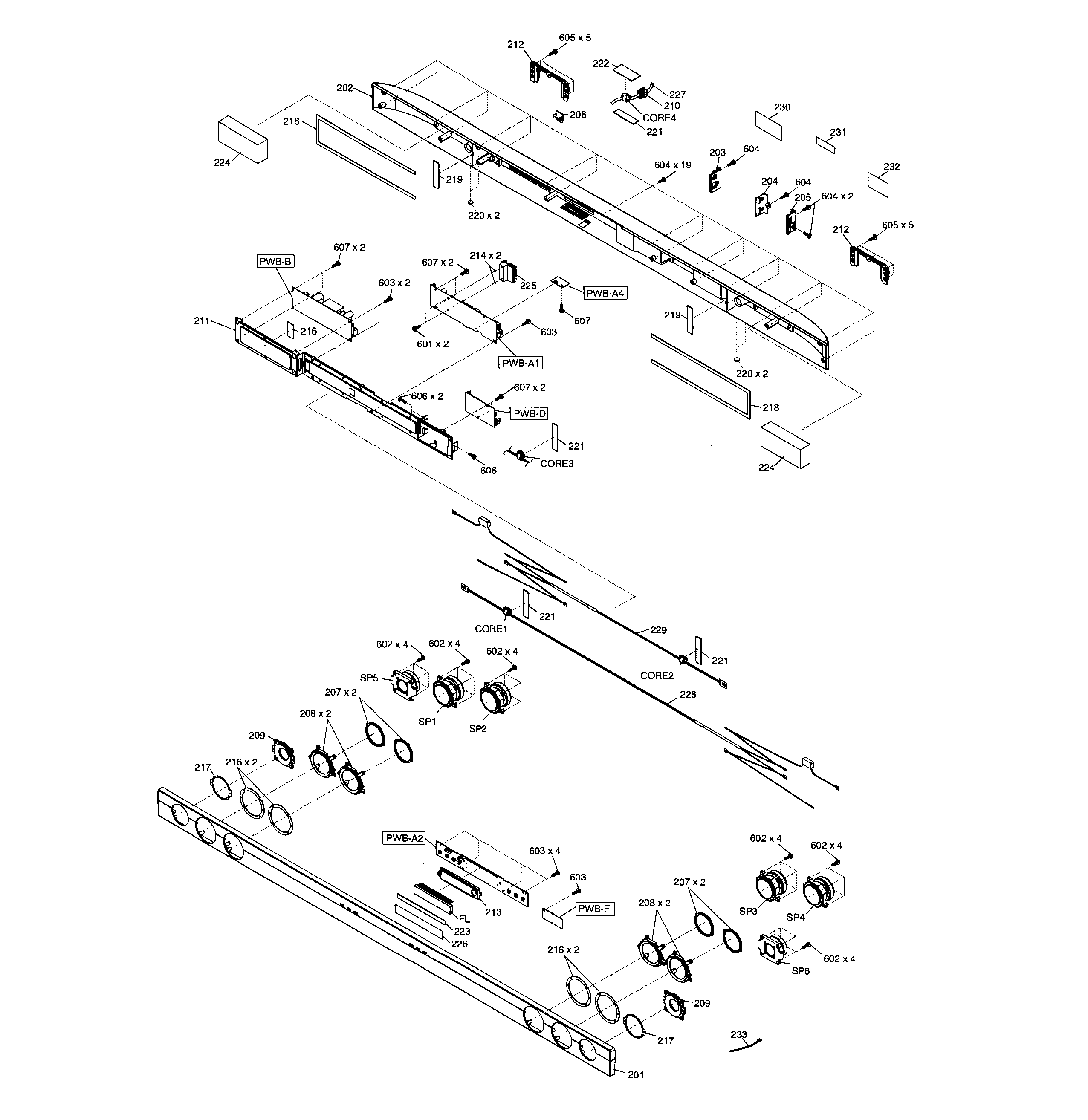

Sound bar diagram

Wool,white

Part #PKYU-A050AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Cvr Back-b GCOVAA367AWSA
#204

Sound bar diagram

Cvr back-b

Part #GCOVAA367AWSA

The manufacturer no longer makes this part, and there's no substitute part

Sharp Main Pcb 92LPWB8695MANS
#PWBA

Sound bar diagram

Sharp main pcb

Part #92LPWB8695MANS

The manufacturer no longer makes this part, and there's no substitute part

Wall Mount LANGKA167AW01
#NI

Sound bar diagram

Wall mount

Part #LANGKA167AW01

The manufacturer no longer makes this part, and there's no substitute part

Holder, Fl LHLDZA295AWSA
#213

Sound bar diagram

Holder, fl

Part #LHLDZA295AWSA

The manufacturer no longer makes this part, and there's no substitute part

Pcb Transm RUITZA082AWZZ
#PWBE

Sound bar diagram

Pcb transm

Part #RUITZA082AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire QCNWNB567AWPZ
#910

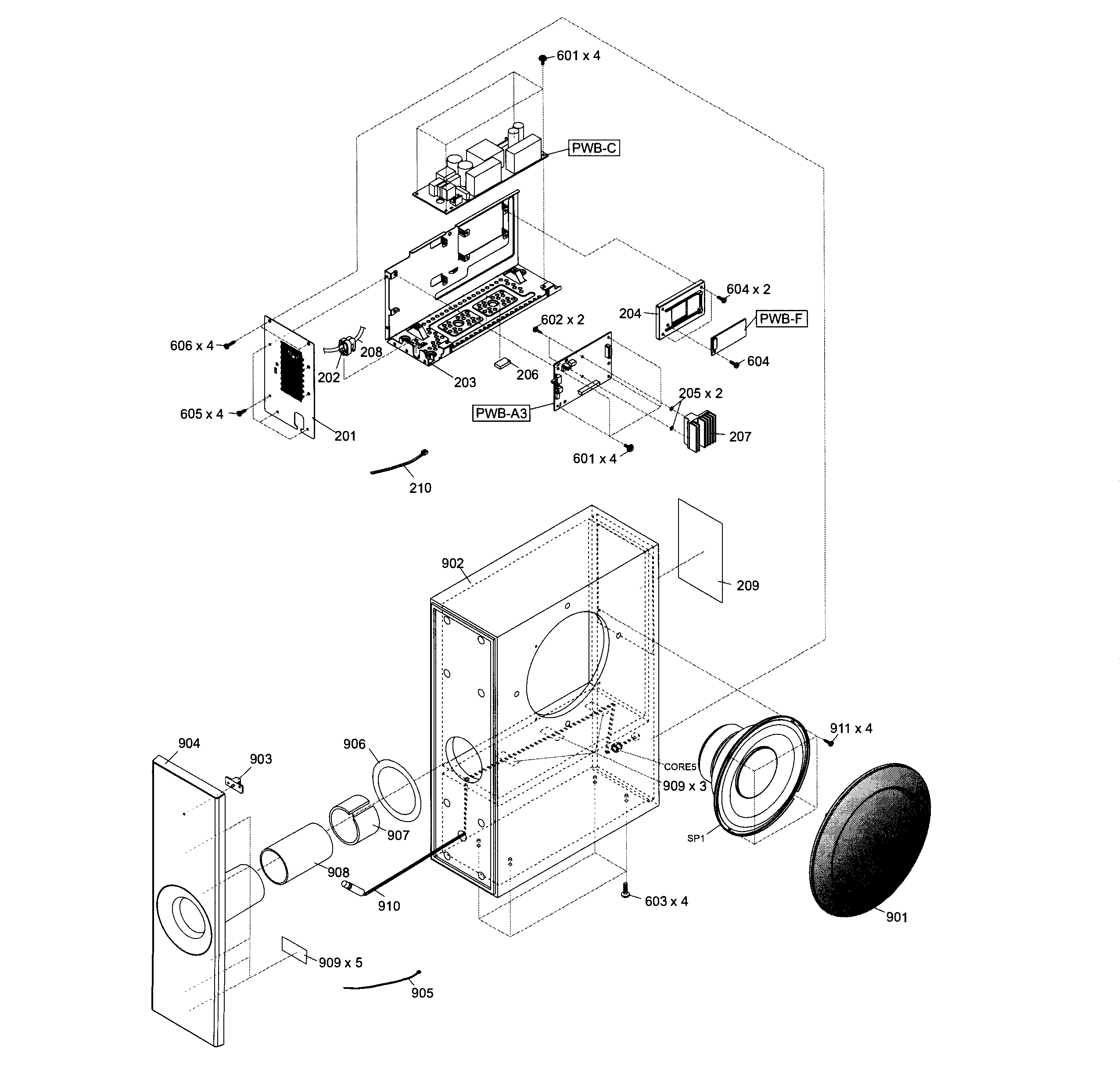

Subwoofer diagram

Lead wire

Part #QCNWNB567AWPZ

The manufacturer no longer makes this part, and there's no substitute part

Cvr Back-c GCOVAA368AWSA
#205

Sound bar diagram

Cvr back-c

Part #GCOVAA368AWSA

The manufacturer no longer makes this part, and there's no substitute part

Stand Assembly GITAUA022AW01
#NI

Sound bar diagram

Stand assembly

Part #GITAUA022AW01

The manufacturer no longer makes this part, and there's no substitute part
