Model # 5KFPM770BWH0 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFPM770BWH0 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Food Processor Scraper 8211760
#1

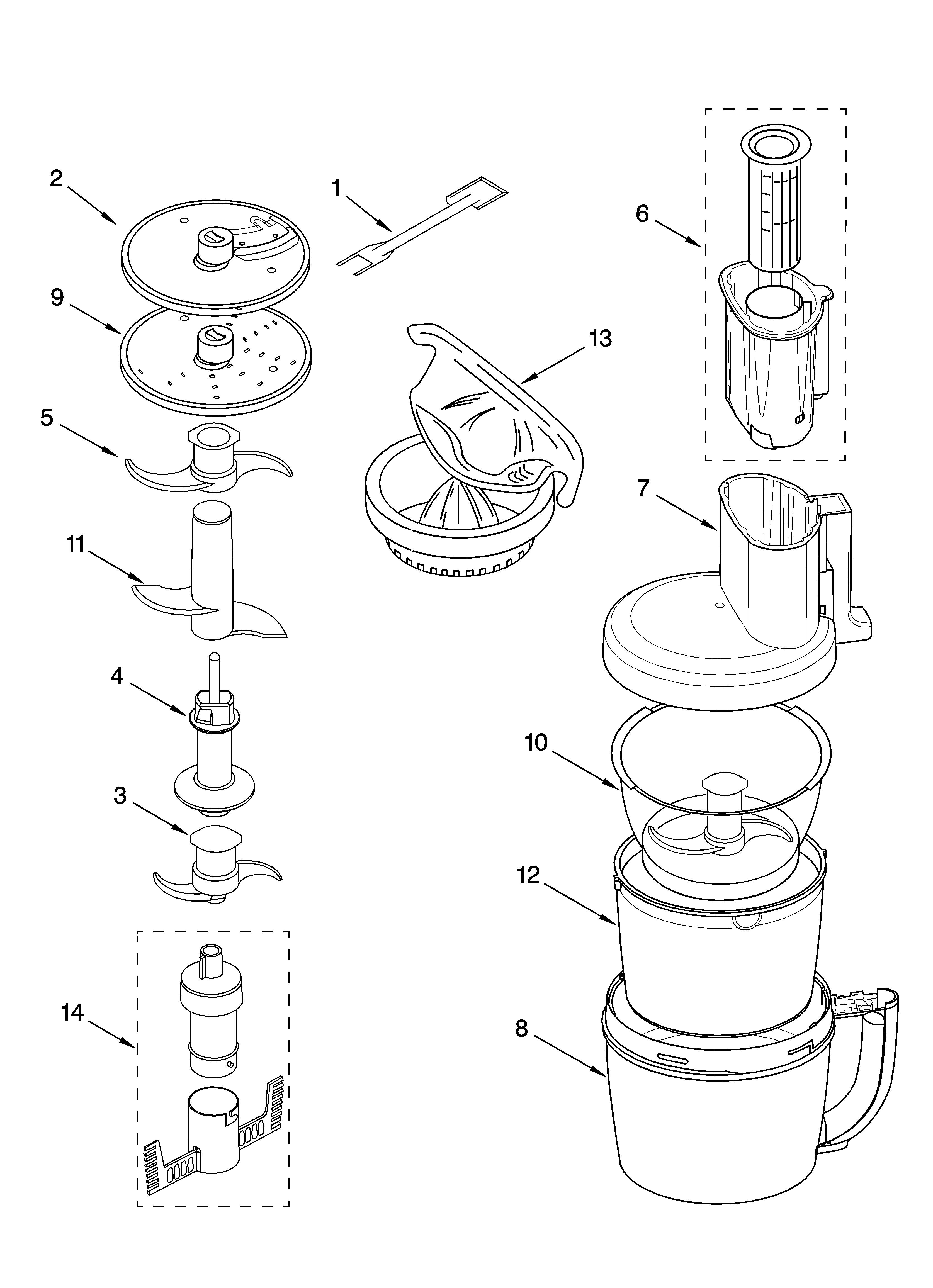

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79 |
19% OFF Phone Price : $31.79
In Stock
Shredder Disc 8211934
#NI

Attachment parts diagram

Shredder disc

Part #8211934

The manufacturer no longer makes this part, and there's no substitute part

Housing 8211823
#4C

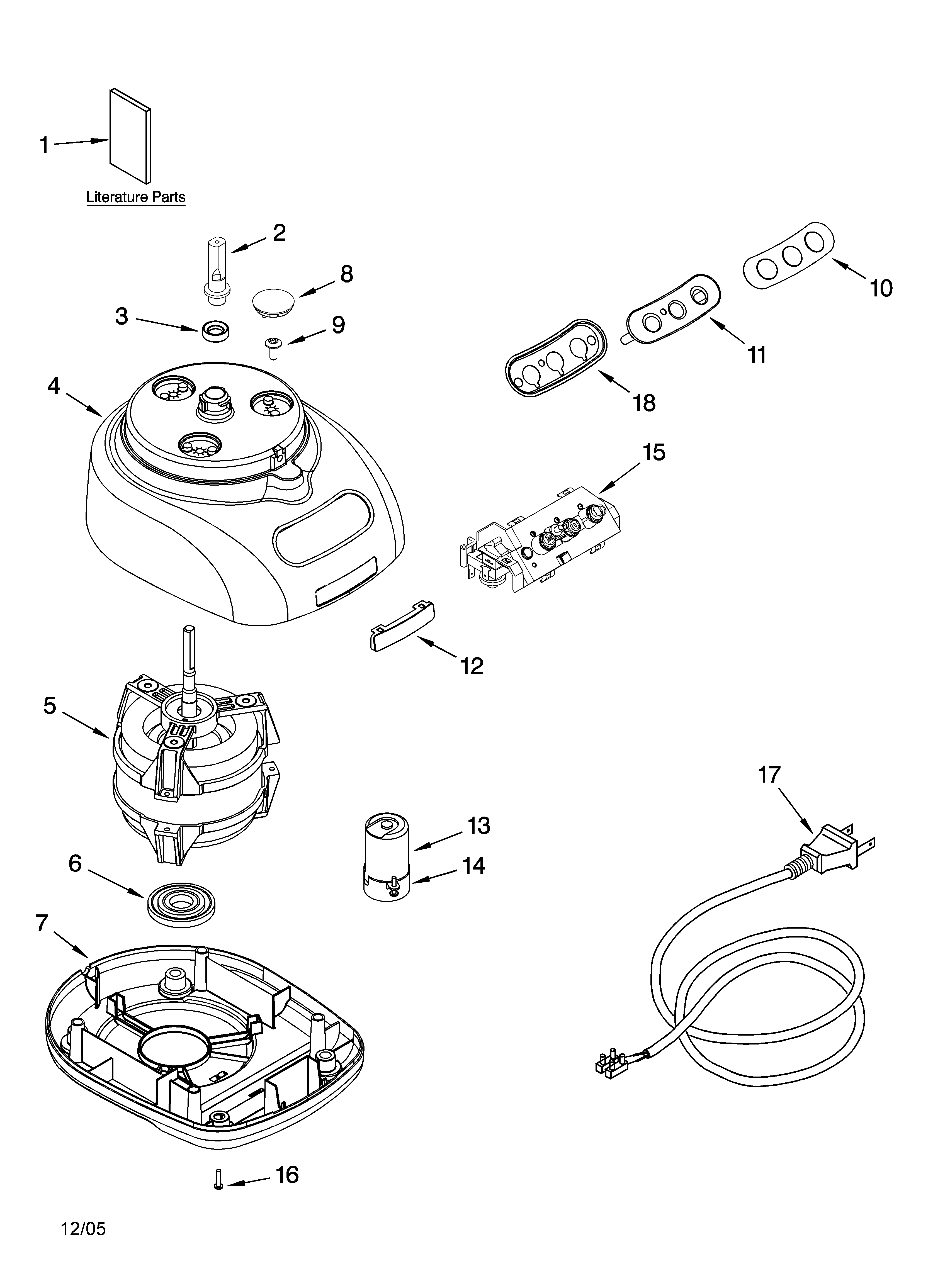

Motor and housing parts diagram

Housing

Part #8211823

The manufacturer no longer makes this part, and there's no substitute part

Bowl Cover 8212062
#7

Attachment parts diagram

Bowl cover

Part #8212062

The manufacturer no longer makes this part, and there's no substitute part

Foot 8211845
#16

Motor and housing parts diagram

Foot

Part #8211845

The manufacturer no longer makes this part, and there's no substitute part

Rack-disc 8211938
#NI

Attachment parts diagram

Rack-disc

Part #8211938

The manufacturer no longer makes this part, and there's no substitute part

Seal 8211828
#3

Motor and housing parts diagram

Seal

Part #8211828

The manufacturer no longer makes this part, and there's no substitute part

Base 8212080
#7A

Motor and housing parts diagram

Base

Part #8212080

The manufacturer no longer makes this part, and there's no substitute part

Slicer Disc 8211931
#NI

Attachment parts diagram

Slicer disc

Part #8211931

The manufacturer no longer makes this part, and there's no substitute part

Disc Slicer 8211929
#2

Attachment parts diagram

Disc slicer

Part #8211929

The manufacturer no longer makes this part, and there's no substitute part
