Model # 831159420 Official Lifestyler system 300

Here are the diagrams and repair parts for Official Lifestyler 831159420 system 300, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Pad,foam,blk 120597
#83

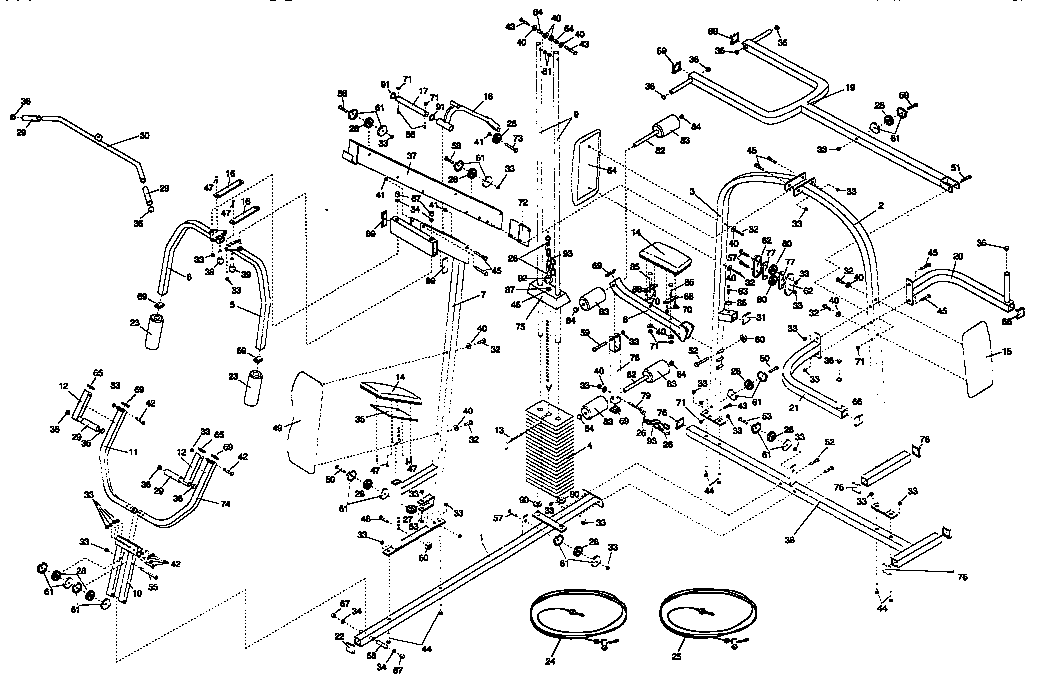

Unit parts diagram

Pad,foam,blk

Part #120597

Replaced by #208378

?
Manufacturer substitution
This part replaces 120597. Substitute parts can look different from the original.
This item is not returnable
$5.39 |
16% OFF Phone Price : $6.39
In Stock
Nordictrack Exercise Equipment Snap Hook 103087
#26

Unit parts diagram

Nordictrack exercise equipment snap hook

Part #103087

This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Black & Decker Treadmill Washer 014063
#40

Unit parts diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Internal Round End Cap, 1-in 120733
#36

Unit parts diagram

Internal round end cap, 1-in

Part #120733

This item is not returnable
$2.16
In Stock
Reebok Internal Round End Cap, 3/4-in 115366
#84

Unit parts diagram

Reebok internal round end cap, 3/4-in

Part #115366

This item is not returnable
$2.16
In Stock
Nordictrack Internal Square End Cap, 1.75-in 113666
#69

Unit parts diagram

Nordictrack internal square end cap, 1.75-in

Part #113666

This item is not returnable
$2.16
In Stock
Proform Weight System Cable, 264-1/2-in 121590
#25

Unit parts diagram

Proform weight system cable, 264-1/2-in

Part #121590

$36.19 |
14% OFF Phone Price : $42.19
In Stock
Black & Decker Bolt, 3/8 X 2-1/4-in 013578
#42

Unit parts diagram

Black & decker bolt, 3/8 x 2-1/4-in

Part #013578

This item is not returnable
$2.16
In Stock
Screw 013427
#56

Unit parts diagram

Screw

Part #013427

This item is not returnable
$2.16
In Stock
Exercise Equipment Carriage Bolt 121567
#85

Unit parts diagram

Exercise equipment carriage bolt

Part #121567

This item is not returnable
$2.16
In Stock
