Model # NTP6075GFG1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NTP6075GFG1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

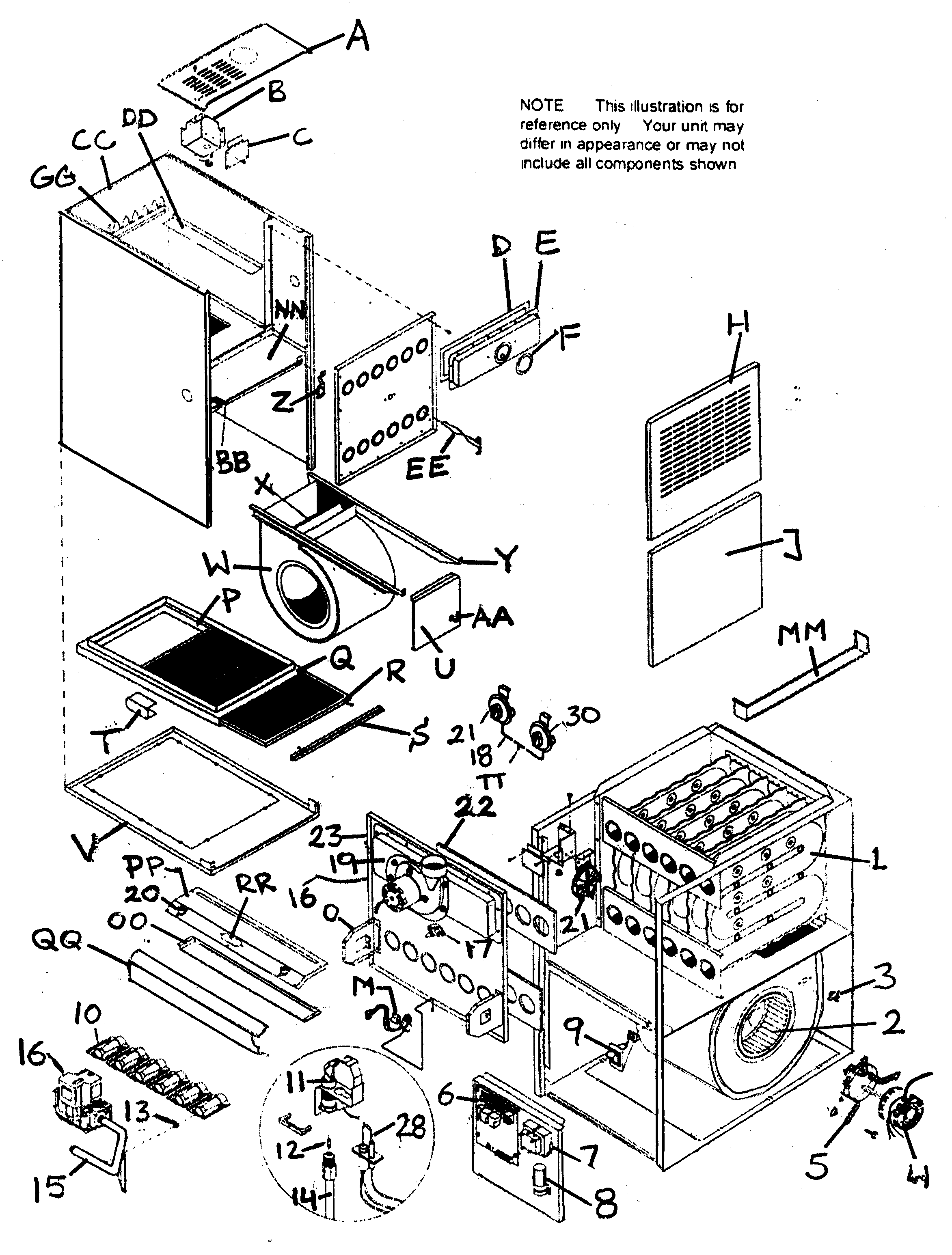

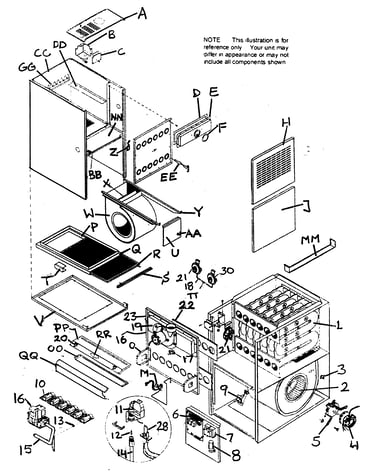

Furnace diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Furnace Blower Fan Wheel 601210
#2

Furnace diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Furnace Temperature Limit Switch 1013105
#3

Furnace diagram

Furnace temperature limit switch

Part #1013105

This item is not returnable
$15.14
In Stock
Heat Exchange 1012407
#1

Furnace diagram

Heat exchange

Part #1012407

Replaced by #1014490

?
Manufacturer substitution
This part replaces 1012407. Substitute parts can look different from the original.
$745.43
In Stock
Control 1012084
#6

Furnace diagram

Control

Part #1012084

Replaced by #1014459

?
Manufacturer substitution
This part replaces 1012084. Substitute parts can look different from the original.
$320.61 |
$12.00 OFF Phone Price : $332.61
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Furnace diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Gskt Htx Bnr 2480905
#22

Furnace diagram

Gskt htx bnr

Part #2480905

$16.43
In Stock
Glass-sght 1011781
#RR

Furnace diagram

Glass-sght

Part #1011781

$22.26
In Stock
Clamp Capctr 1095020
#AA

Furnace diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Manifold 1011699
#15

Furnace diagram

Manifold

Part #1011699

$104.66
In Stock
