Model # 5150 Official Formula Ventures prism home gym

Here are the diagrams and repair parts for Official Formula Ventures 5150 prism home gym, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Bushing 5150-67
#67

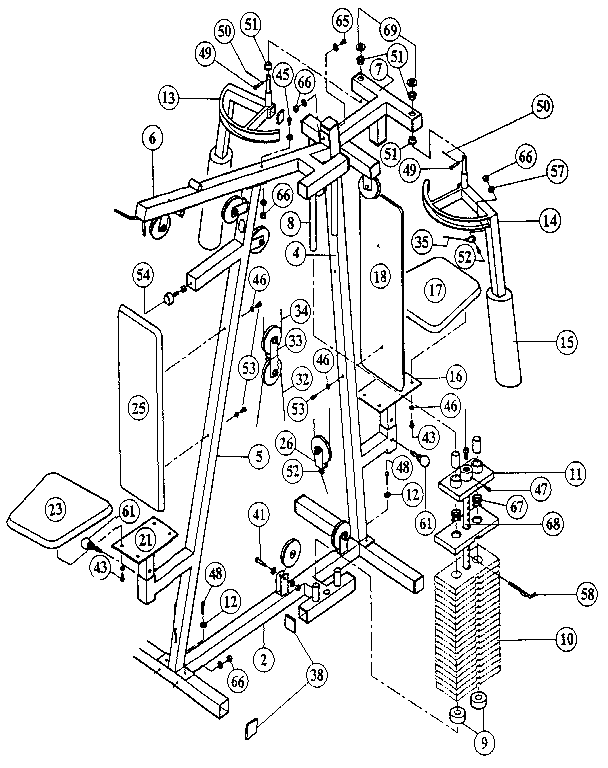

Unit parts diagram

Bushing

Part #5150-67

The manufacturer no longer makes this part, and there's no substitute part

F Seat Sup 5150-21
#21

Unit parts diagram

F seat sup

Part #5150-21

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Bolt 5150-44
#44

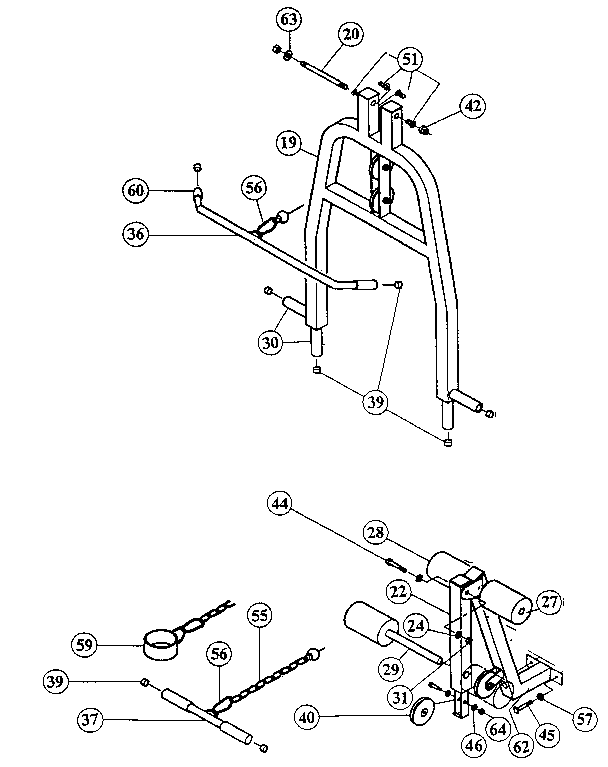

Crossbar assembly diagram

Exercise equipment bolt

Part #5150-44

The manufacturer no longer makes this part, and there's no substitute part

Front Seat Back 5150-25
#25

Unit parts diagram

Front seat back

Part #5150-25

The manufacturer no longer makes this part, and there's no substitute part

Bolt 5150-43
#43

Unit parts diagram

Bolt

Part #5150-43

The manufacturer no longer makes this part, and there's no substitute part

Rear Seat 5150-17
#17

Unit parts diagram

Rear seat

Part #5150-17

The manufacturer no longer makes this part, and there's no substitute part

Chain Hook 5150-56
#56

Crossbar assembly diagram

Chain hook

Part #5150-56

The manufacturer no longer makes this part, and there's no substitute part

Weight System Weight Bumper 5150-09
#9

Unit parts diagram

Weight system weight bumper

Part #5150-09

The manufacturer no longer makes this part, and there's no substitute part

Quick Pin 5150-61
#61

Unit parts diagram

Quick pin

Part #5150-61

The manufacturer no longer makes this part, and there's no substitute part

Brace 5150-62
#62

Crossbar assembly diagram

Brace

Part #5150-62

The manufacturer no longer makes this part, and there's no substitute part
