Model # SCD87 Official Samsung camcorder

Here are the diagrams and repair parts for Official Samsung SCD87 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

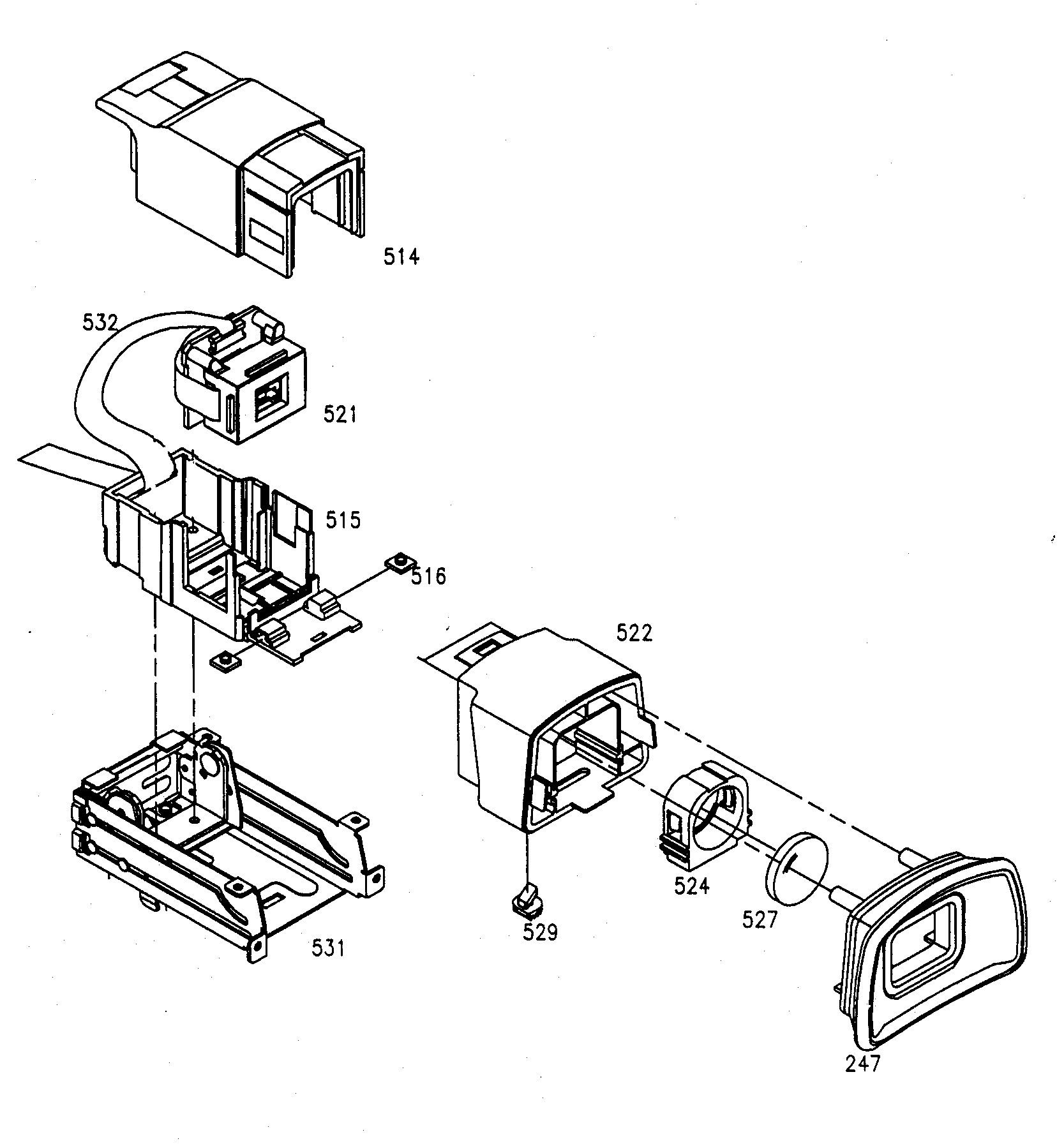

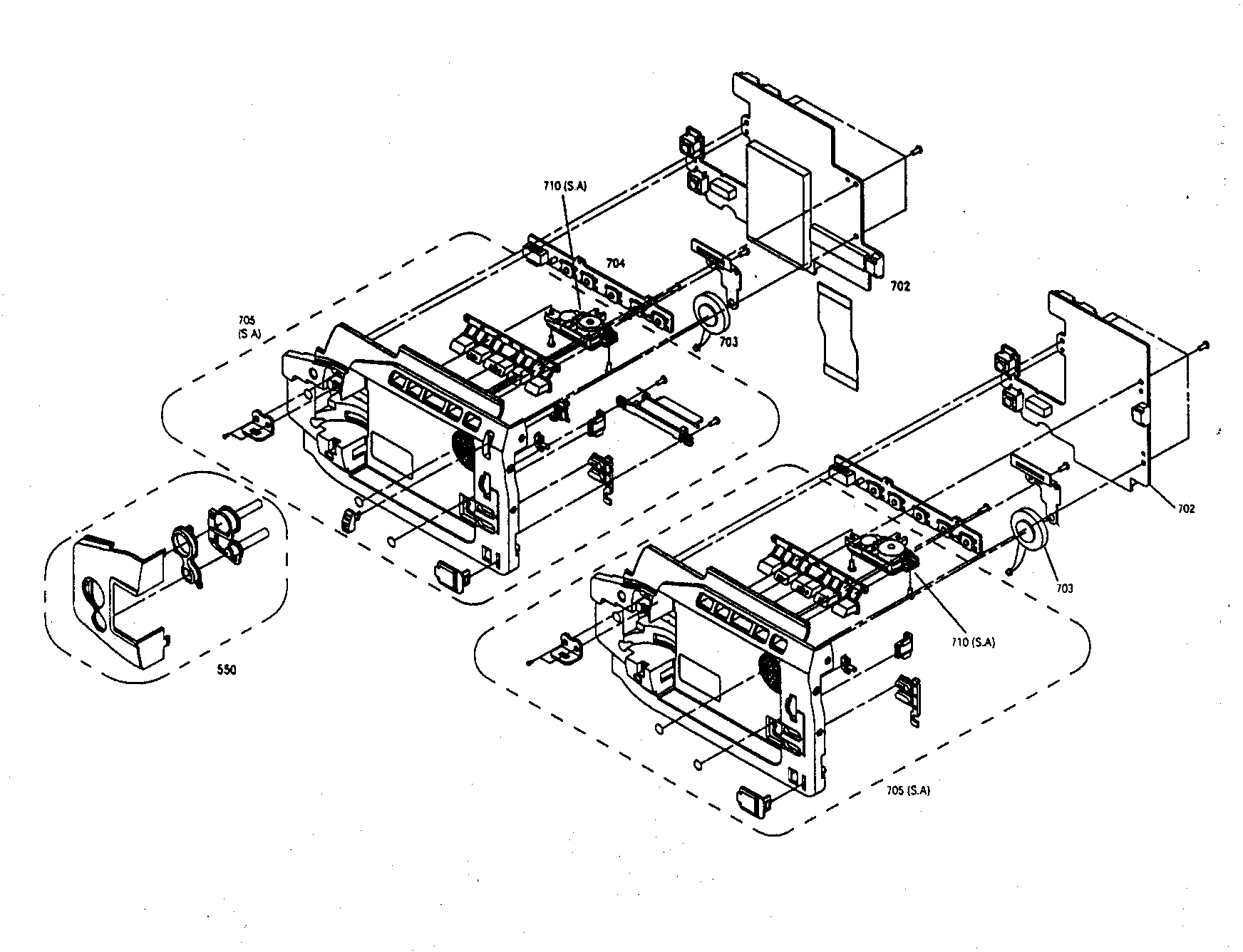

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Bracket-nu AD61-12033A
Bracket-nu

Part #AD61-12033A

The manufacturer no longer makes this part, and there's no substitute part

Cover AD63-00347A
#570

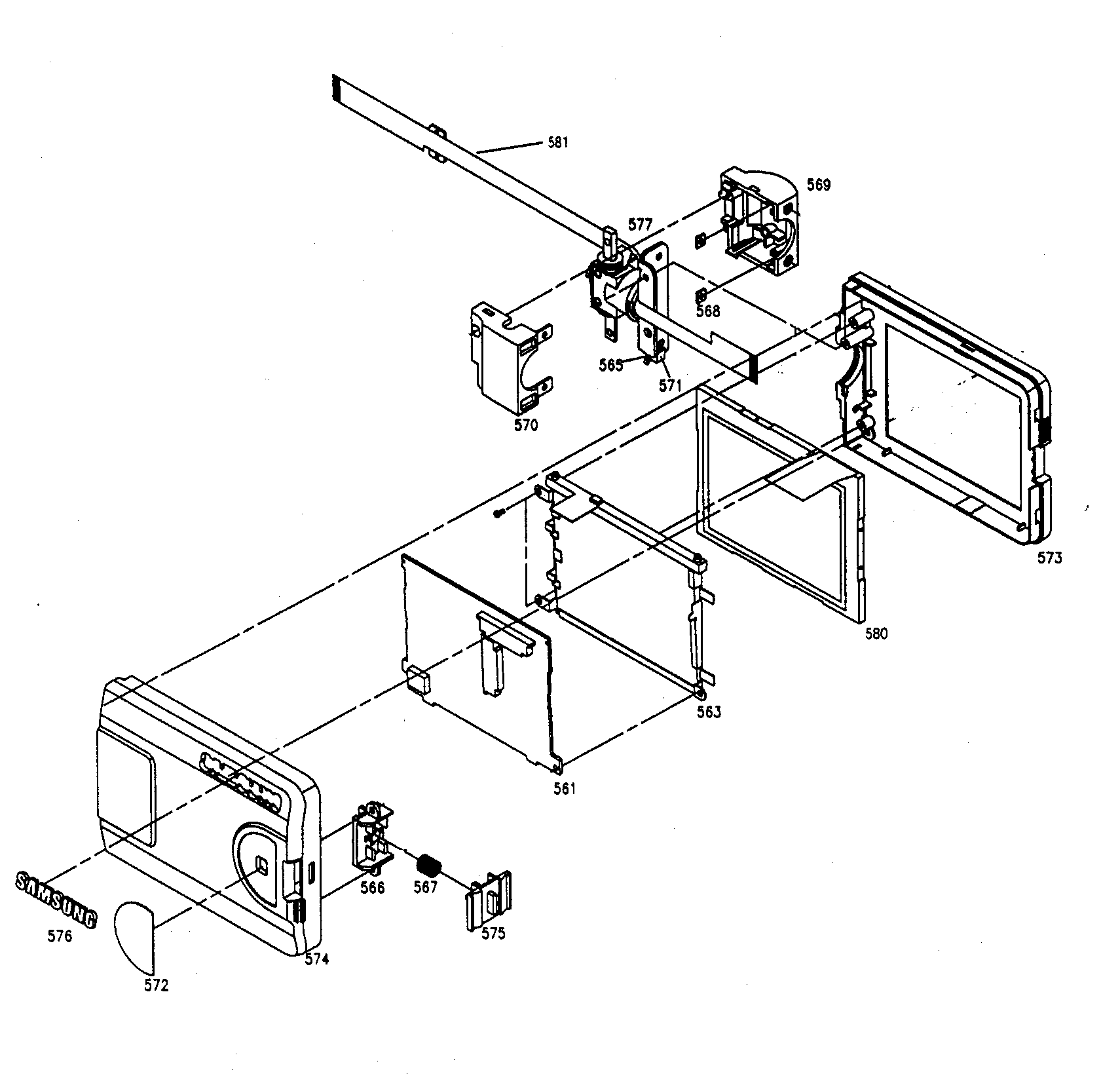

Lcd assy diagram

Cover

Part #AD63-00347A

The manufacturer no longer makes this part, and there's no substitute part

Guide AD73-00006A
#361

Case right assy diagram

Guide

Part #AD73-00006A

The manufacturer no longer makes this part, and there's no substitute part

Knob AD64-00858A
#403

Case right assy diagram

Knob

Part #AD64-00858A

The manufacturer no longer makes this part, and there's no substitute part

Spring AD61-01029A
#567

Lcd assy diagram

Spring

Part #AD61-01029A

The manufacturer no longer makes this part, and there's no substitute part

Rubber AD73-00085A
#115

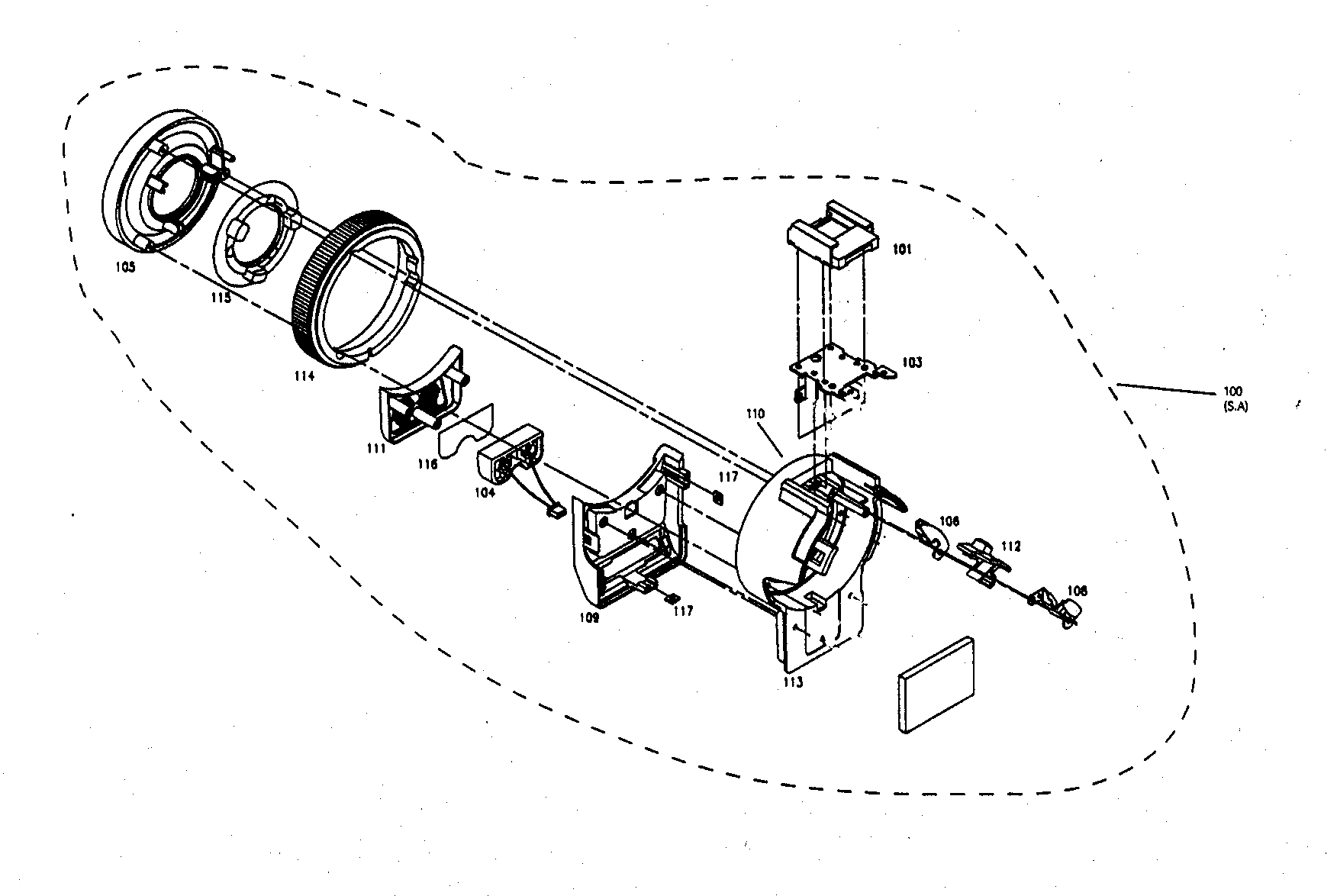

Front assy diagram

Rubber

Part #AD73-00085A

The manufacturer no longer makes this part, and there's no substitute part

Badge AD64-00809A
#572

Lcd assy diagram

Badge

Part #AD64-00809A

The manufacturer no longer makes this part, and there's no substitute part

Knob AD64-00859A
#608

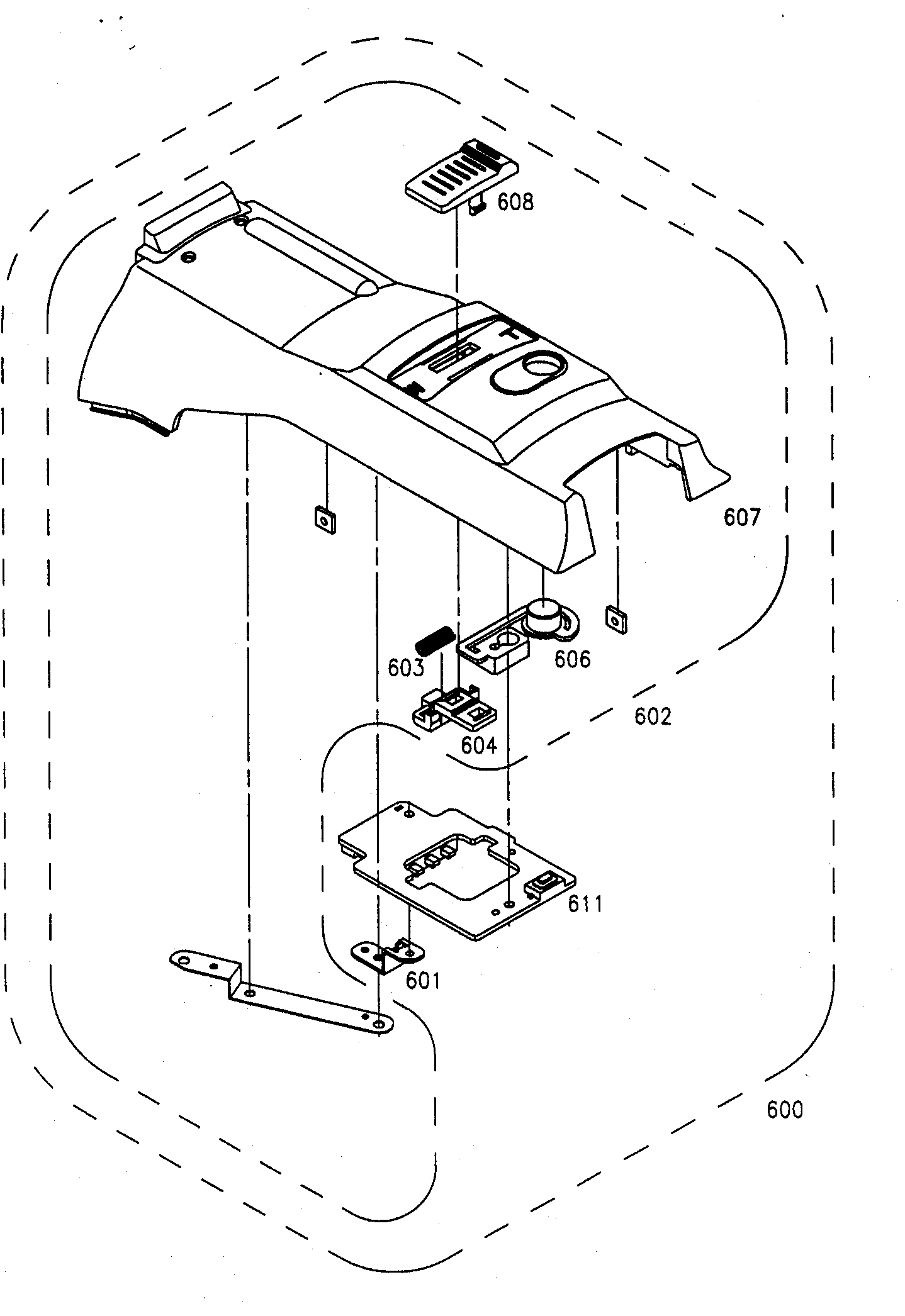

Top assy diagram

Knob

Part #AD64-00859A

The manufacturer no longer makes this part, and there's no substitute part

Holder AD61-01020A
#105

Front assy diagram

Holder

Part #AD61-01020A

The manufacturer no longer makes this part, and there's no substitute part

Case Eye View Finder AD64-00839A
#NI

Case right assy diagram

Case eye view finder

Part #AD64-00839A

The manufacturer no longer makes this part, and there's no substitute part
