Kenmore
Upright Vacuum

Model # 11634723401 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 11634723401 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Vacuum Drive Belt 4369591
#11

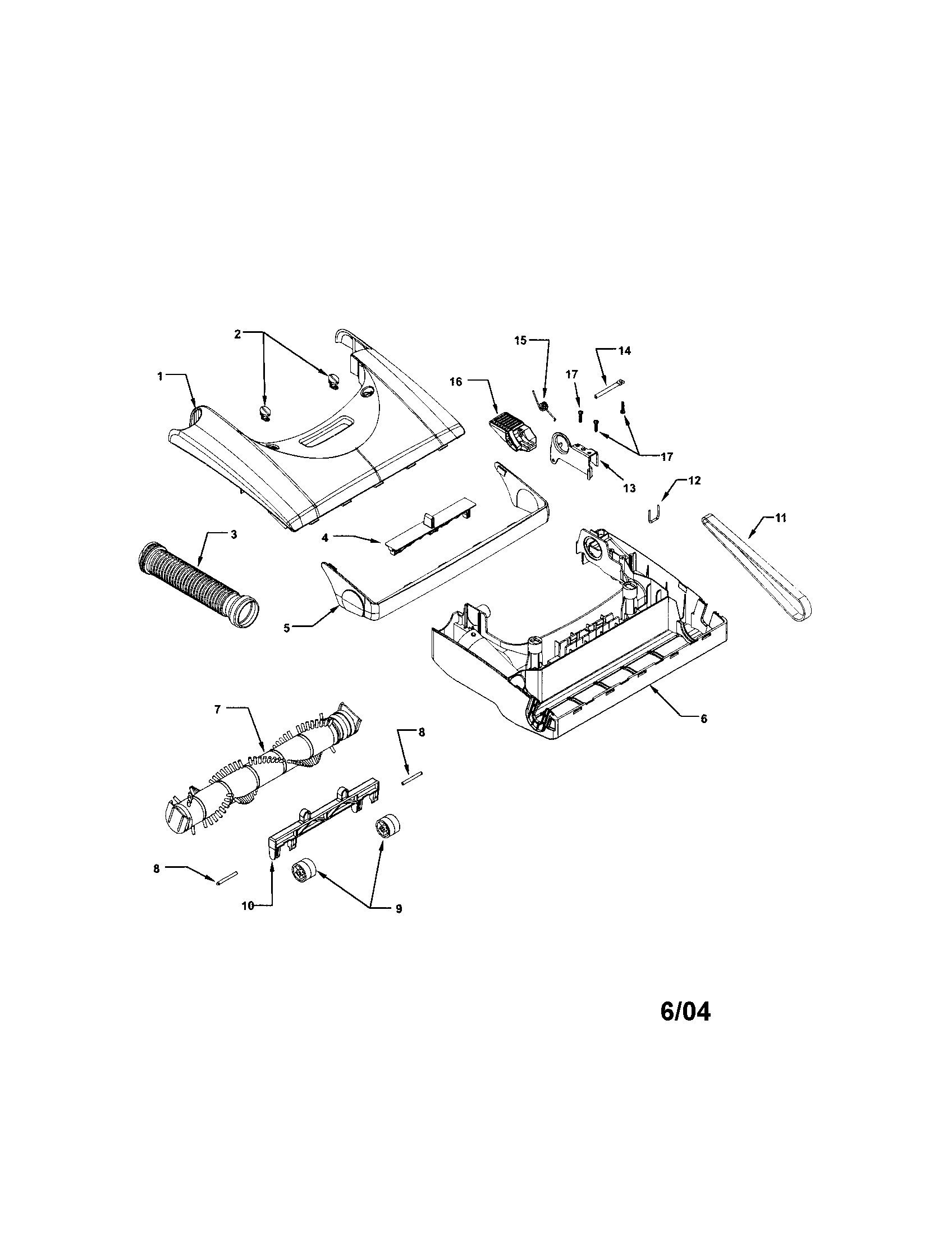

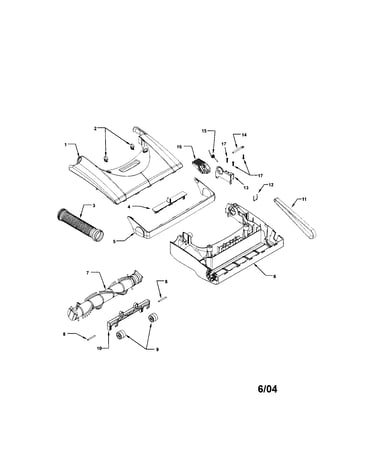

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#7

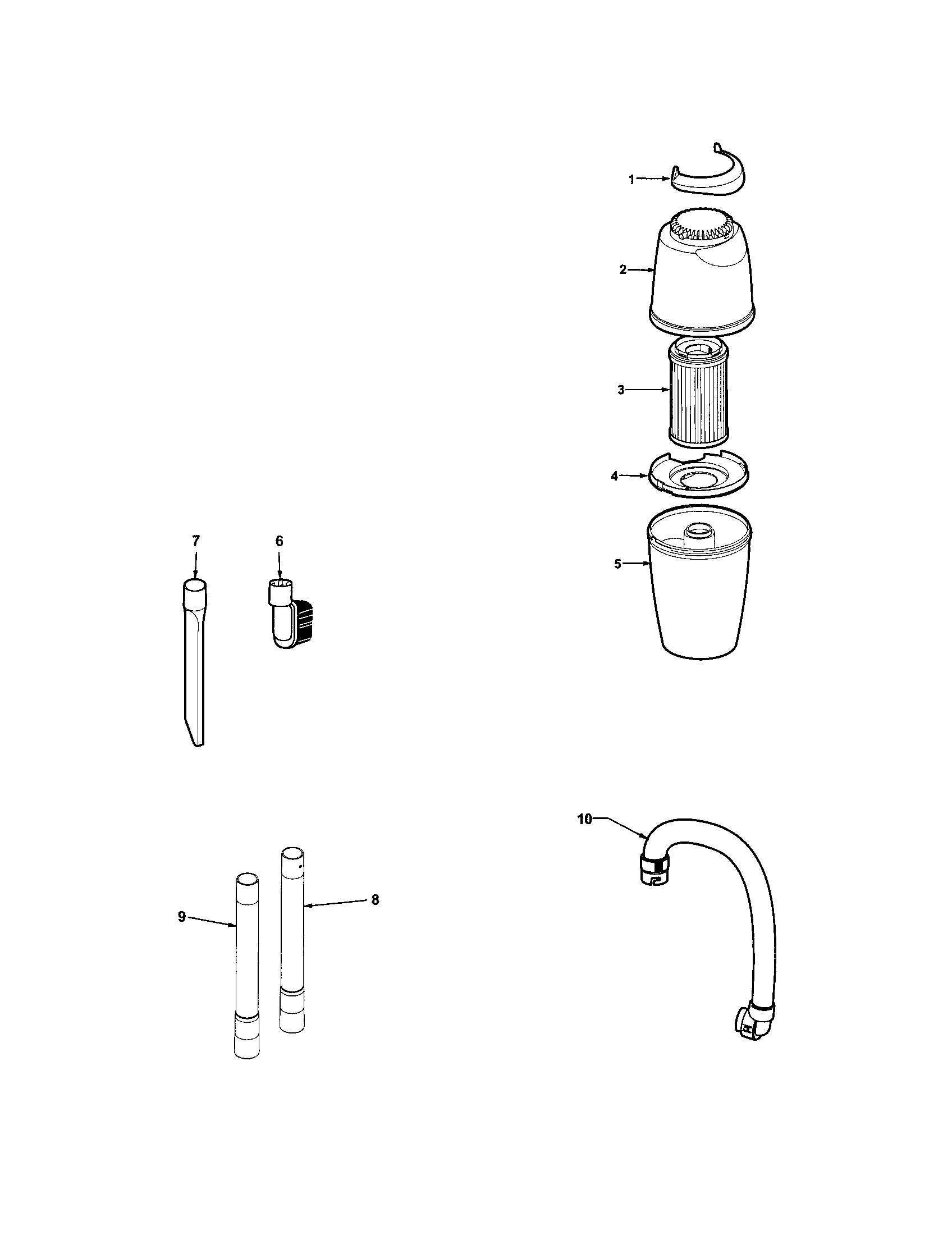

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 745362
#27

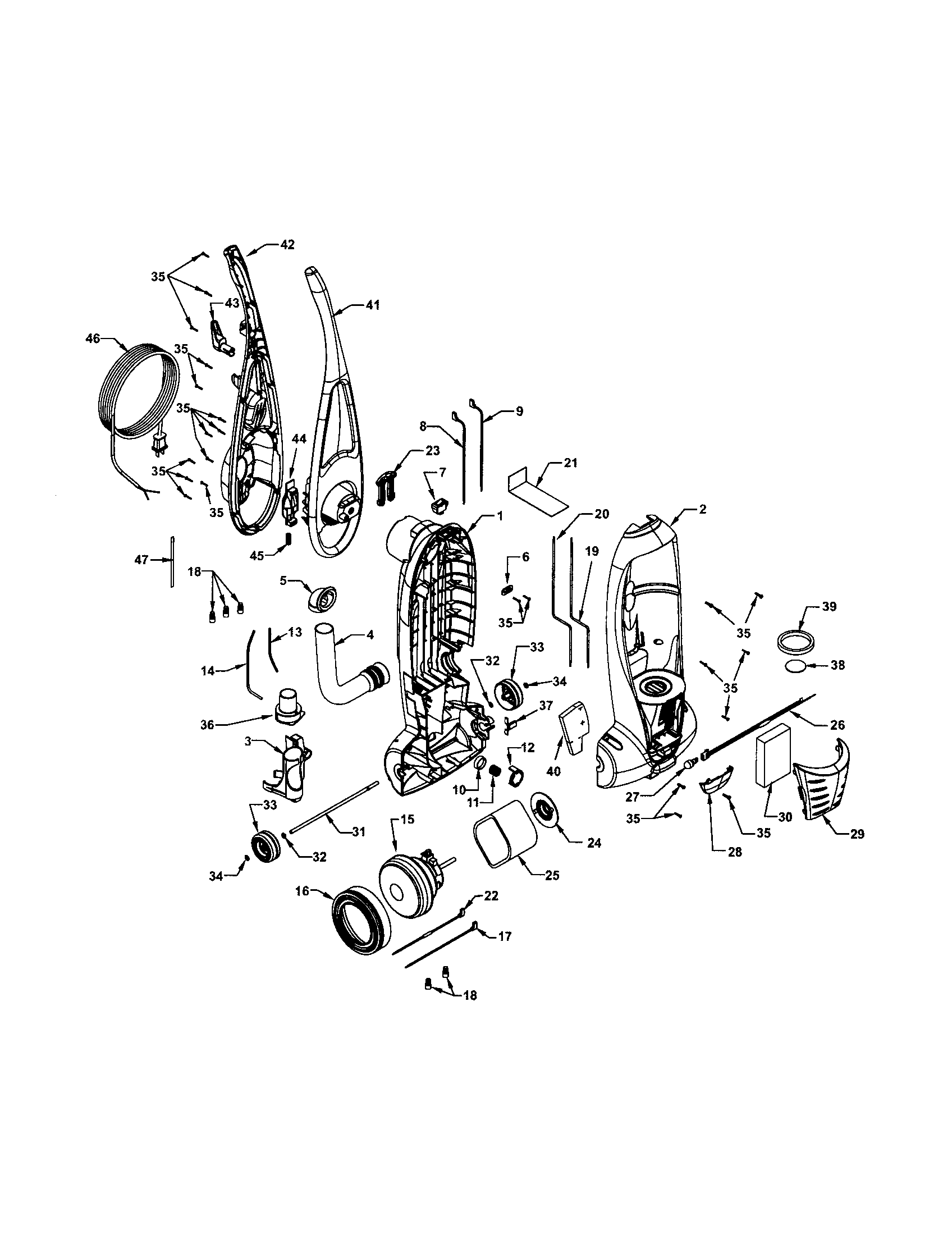

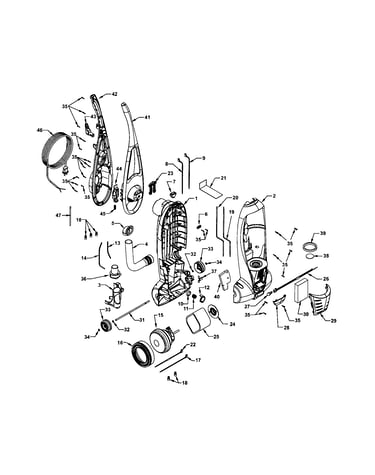

Dust compartment and motor diagram

Light bulb

Part #745362

Replaced by #5248

?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Shaft (wheel) 489334
#31

Dust compartment and motor diagram

Shaft (wheel)

Part #489334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter Cover KC41KCHPZB0L
#29

Dust compartment and motor diagram

Vacuum filter cover

Part #KC41KCHPZB0L

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover Packing KC02LBLXZZ000
#40

Dust compartment and motor diagram

Rear cover packing

Part #KC02LBLXZZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 4369051
#7

Dust compartment and motor diagram

Vacuum on/off switch

Part #4369051

The manufacturer no longer makes this part, and there's no substitute part

Holder Spring KC47NATCZ000
#45

Dust compartment and motor diagram

Holder spring

Part #KC47NATCZ000

The manufacturer no longer makes this part, and there's no substitute part

Protector 4369538
#6

Dust compartment and motor diagram

Protector

Part #4369538

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose KC84PCHPZV06
#10

Hose and attachment diagram

Vacuum hose

Part #KC84PCHPZV06

The manufacturer no longer makes this part, and there's no substitute part
