Hotpoint
Countertop Microwave

Model # RE9310Y3 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE9310Y3 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Screw WB1X458
#192B

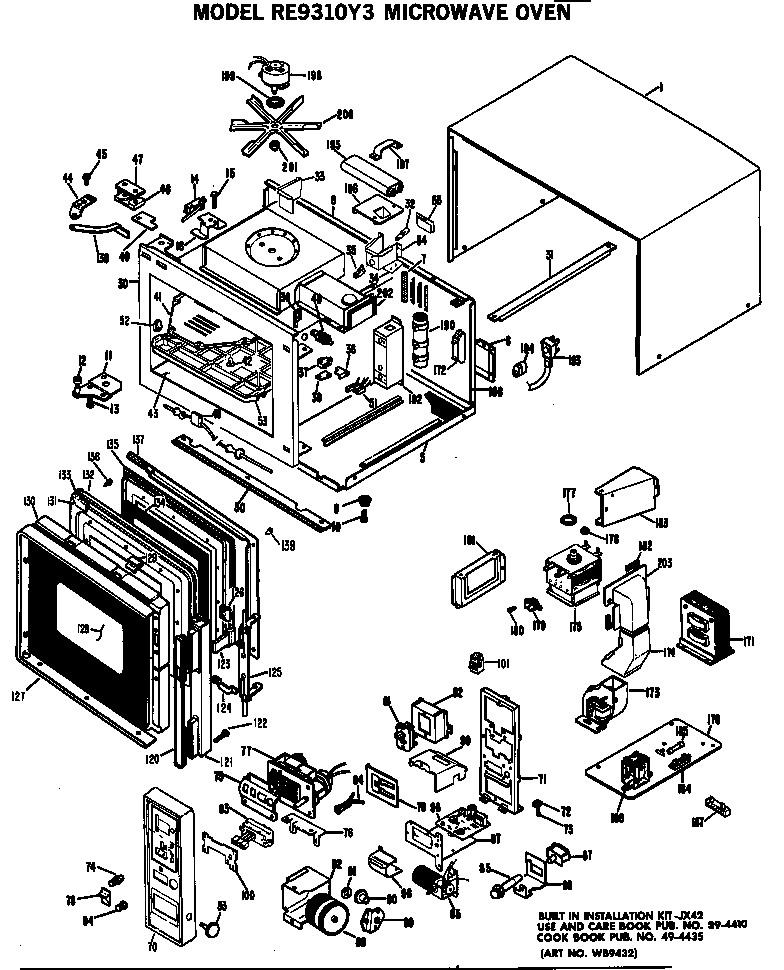

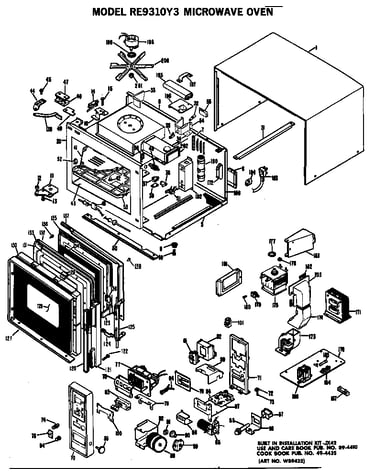

Microwave oven diagram

Screw

Part #WB1X458

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X458. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1X5471
Screw

Part #WB1X5471

This item is not returnable
$2.16
In Stock
Hinge Arm WB10X5110
#44

Microwave oven diagram

Hinge arm

Part #WB10X5110

This item is not returnable
$5.99
In Stock
Screw WB1X5347
#180

Microwave oven diagram

Screw

Part #WB1X5347

This item is not returnable
$2.49
In Stock
Magnetron WB27X5144
#175A

Microwave oven diagram

Magnetron

Part #WB27X5144

$79.96
In Stock
Sleeve WB2X6524
#172D

Microwave oven diagram

Sleeve

Part #WB2X6524

This item is not returnable
$2.49
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
#137B

Microwave oven diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock
Screw WB1X537
#127B

Microwave oven diagram

Screw

Part #WB1X537

$8.11
In Stock
Knob Drum WB3X5555
#93B

Microwave oven diagram

Knob drum

Part #WB3X5555

$7.99
In Stock
Lamp WX12X1560
#32

Microwave oven diagram

Lamp

Part #WX12X1560

$7.99
In Stock
