Model # 143696152 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143696152 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Spark Plug 33636
#37

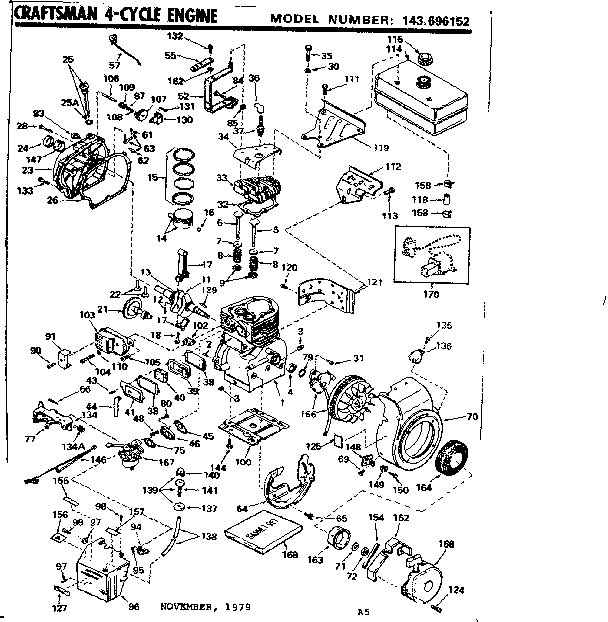

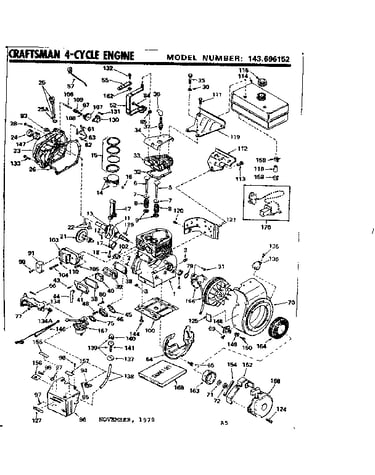

Engine diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80 |
17% OFF Phone Price : $5.80
In Stock
Needle Seat 631021
#12

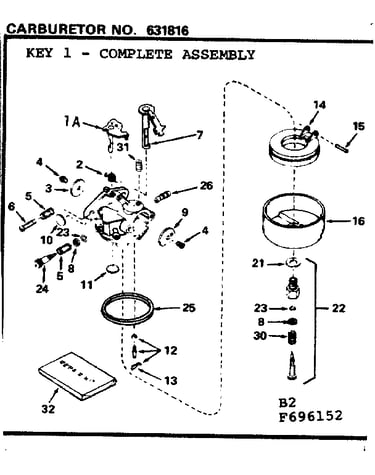

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Starter Rope 590386
#9

Replacement parts diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#40

Engine diagram

Cook top side trim kit lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Float 632019
#14

Carburetor diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lauson Lawn & Garden Equipment Engine Fuel Line (replaces 30241, 430217, 503-1199, 503-1577, Tc-30962) 30962
#118

Engine diagram

Lauson lawn & garden equipment engine fuel line (replaces 30241, 430217, 503-1199, 503-1577, tc-30962)

Part #30962

This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049

#NI

All parts diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19 |
14% OFF Phone Price : $14.19
In Stock
Fuel Tank 34186
#114

Engine diagram

Fuel tank

Part #34186

Replaced by #34186A

?
Manufacturer substitution
This part replaces 34186. Substitute parts can look different from the original.
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Spring 632016
#2

Carburetor diagram

Spring

Part #632016

Replaced by #631767

?
Manufacturer substitution
This part replaces 632016. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Control Assembly 33858A
#160

Engine diagram

Control assembly

Part #33858A

Replaced by #36677

?
Manufacturer substitution
This part replaces 33858A. Substitute parts can look different from the original.
$39.34 |
13% OFF Phone Price : $45.34
In Stock
