Model # 143269022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143269022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Lawn Mower O-ring 631028
#25

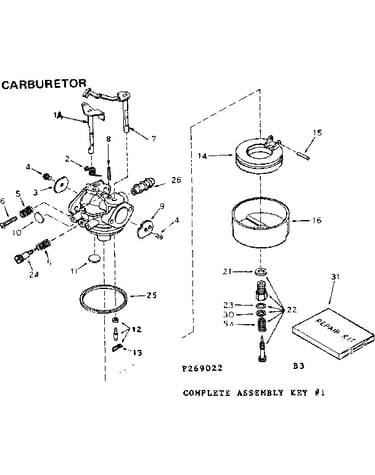

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Spark Plug 33636
#51

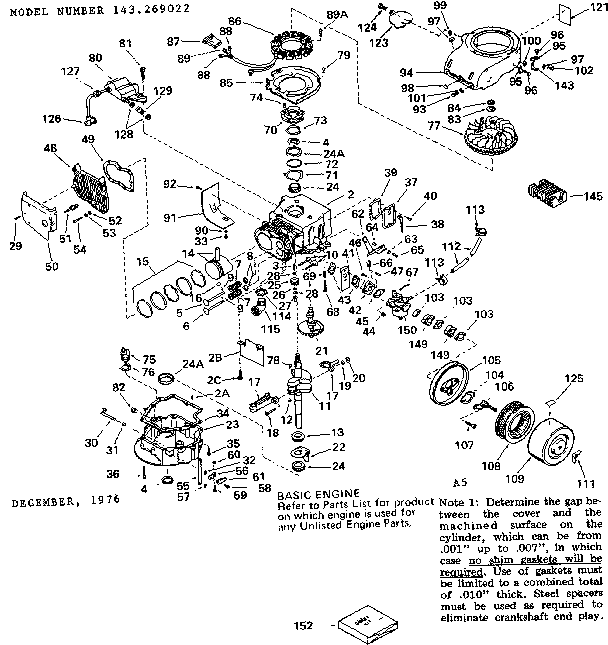

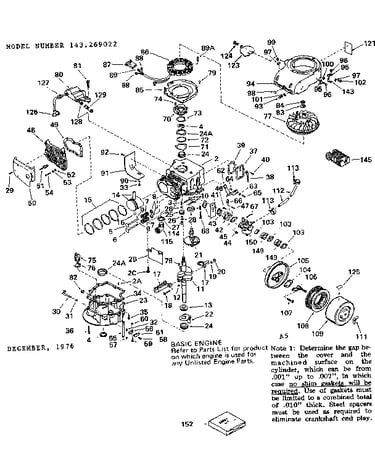

Engine diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80 |
17% OFF Phone Price : $5.80
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#113

Engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Gasket 33861
#45

Engine diagram

Gasket

Part #33861

Replaced by #33263

?
Manufacturer substitution
This part replaces 33861. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Spark Plug Boot (replaces 27276, Tc-610118) 610118
#126

Engine diagram

Troybilt lawn & garden equipment engine spark plug boot (replaces 27276, tc-610118)

Part #610118

This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Troybilt Carburetor Float 631024
#15

Carburetor diagram

Troybilt carburetor float

Part #631024

This item is not returnable
$2.16
In Stock
Breather Gasket 27272
#103

Engine diagram

Breather gasket

Part #27272

Replaced by #27272A

?
Manufacturer substitution
This part replaces 27272. Substitute parts can look different from the original.
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Lawn & Garden Equipment Engine Carburetor O-ring 630740
#23

Carburetor diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Tube 27627
#38

Engine diagram

Tube

Part #27627

Replaced by #35350

?
Manufacturer substitution
This part replaces 27627. Substitute parts can look different from the original.
This item is not returnable
$7.26
In Stock
