Model # GD080M16B Official Thermal Zone gas furnace

Here are the diagrams and repair parts for Official Thermal Zone GD080M16B gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Capacitor 621435
#7

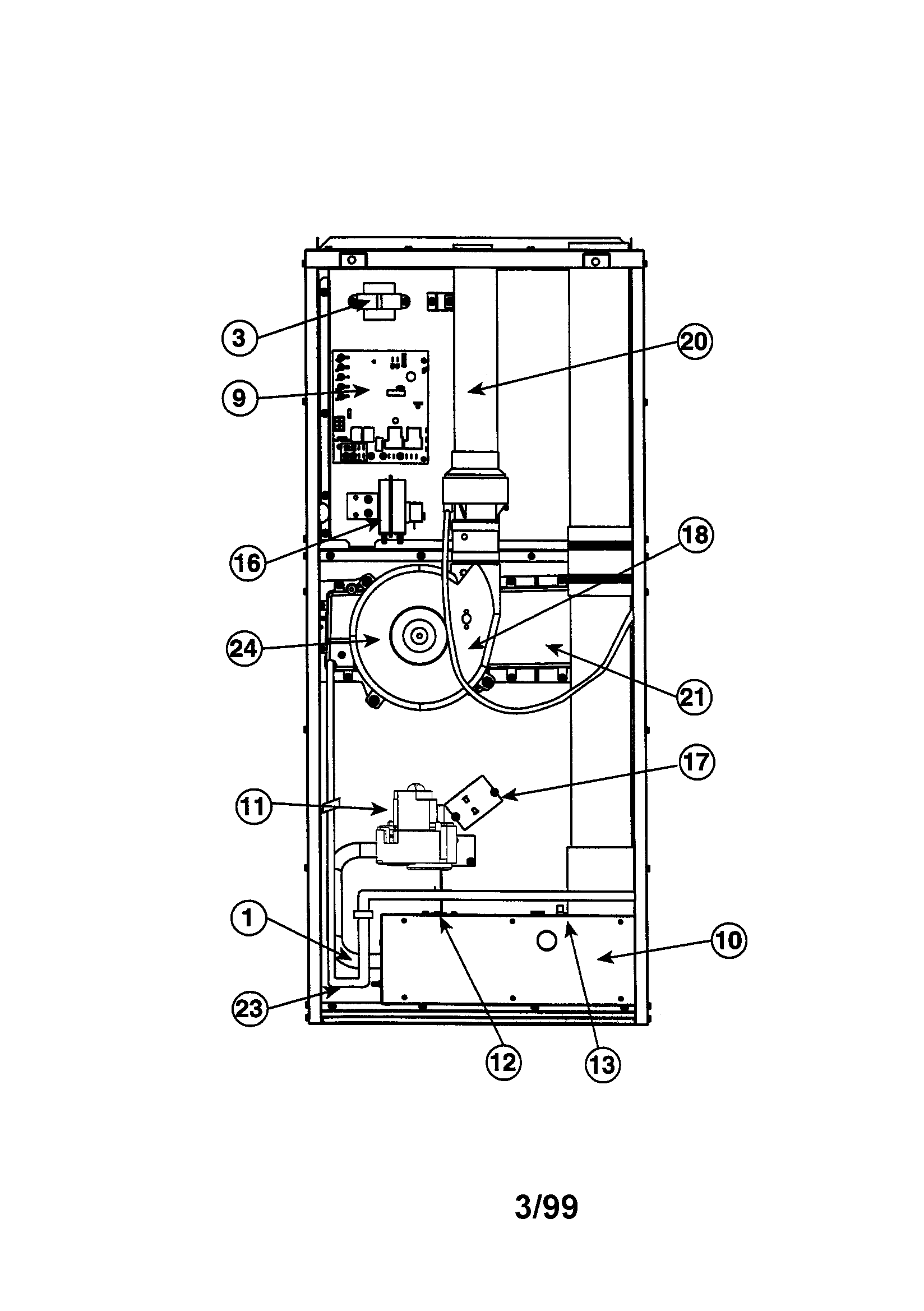

90+ downflow furnace diagram

Capacitor

Part #621435

Replaced by #12908

?
Manufacturer substitution
This part replaces 621435. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Electronic Control Board 903106
#9

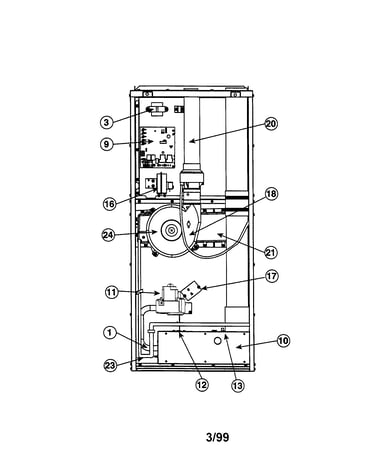

90+ downflow furnace diagram

Furnace electronic control board

Part #903106

$297.66
In Stock
Orifice 661045
#14

90+ downflow furnace diagram

Orifice

Part #661045

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Air Handler Drain Pan Connector 663714
#20

90+ downflow furnace diagram

Central air conditioner air handler drain pan connector

Part #663714

The manufacturer no longer makes this part, and there's no substitute part

Furnace Vent Limit Switch, 160-degree 626461
#24

90+ downflow furnace diagram

Furnace vent limit switch, 160-degree

Part #626461

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Assembly 902815
#4

90+ downflow furnace diagram

Furnace blower assembly

Part #902815

The manufacturer no longer makes this part, and there's no substitute part

Sensor Rod 632316
#13

90+ downflow furnace diagram

Sensor rod

Part #632316

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 624586
#11

90+ downflow furnace diagram

Gas valve

Part #624586

The manufacturer no longer makes this part, and there's no substitute part

Pressure Swt 632252
#16

90+ downflow furnace diagram

Pressure swt

Part #632252

The manufacturer no longer makes this part, and there's no substitute part

Transformer 621486
#3

90+ downflow furnace diagram

Transformer

Part #621486

The manufacturer no longer makes this part, and there's no substitute part
