Model # V70-125203A Official Tecumseh 4-cycle engine

Here are the diagrams and repair parts for Official Tecumseh V70-125203A 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

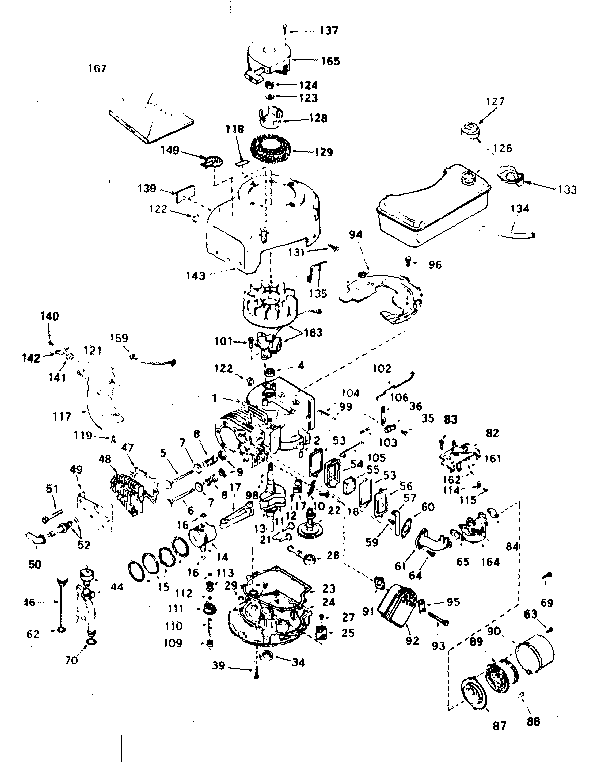

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
O-ring 631028
#25

Carburetor no. 631449 diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Needl/seat 631021
#12

Carburetor no. 631449 diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 29774
#134

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#21

Carburetor no. 631449 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#55

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#50

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Float Bowl 631867
#16

Carburetor no. 631449 diagram

Float bowl

Part #631867

The manufacturer no longer makes this part, and there's no substitute part

Thrtle Sprng 631279
#2

Carburetor no. 631449 diagram

Thrtle sprng

Part #631279

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27930
#91

Basic engine diagram

Gasket

Part #27930

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#113

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part
