Model # BCM060XKC2 Official ICP blower coil

Here are the diagrams and repair parts for Official ICP BCM060XKC2 blower coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

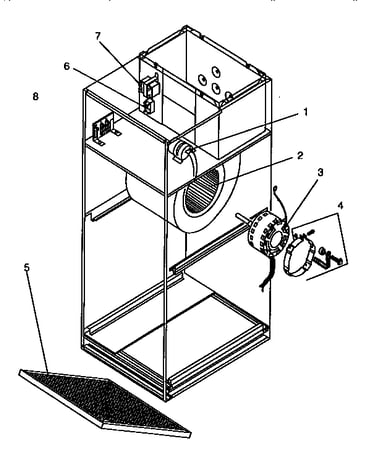

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Relay Spdt 1058148
#6

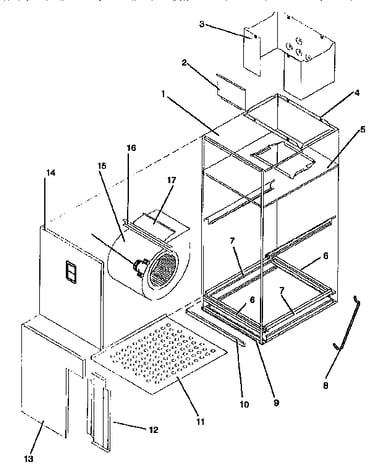

Functional replacement diagram

Relay spdt

Part #1058148

Replaced by #WR90-370

?
Manufacturer substitution
This part replaces 1058148. Substitute parts can look different from the original.
$21.63 |
22% OFF Phone Price : $27.63
In Stock
Cap Rnrd 1094959
#1

Functional replacement diagram

Cap rnrd

Part #1094959

The manufacturer no longer makes this part, and there's no substitute part

Motor 1057900
#3

Functional replacement diagram

Motor

Part #1057900

$574.65
In Stock
Housing Blr 1096066
#15

Non-functional replacement diagram

Housing blr

Part #1096066

$209.82
In Stock
Terminal Board 1055193
#8

Functional replacement diagram

Terminal board

Part #1055193

$29.09
In Stock
Blower Wheel 1057877
#2

Functional replacement diagram

Blower wheel

Part #1057877

$187.76
In Stock
Furnace Air Filter 602859
#5

Functional replacement diagram

Furnace air filter

Part #602859

$94.00
In Stock
Transformer 1056899
#7

Functional replacement diagram

Transformer

Part #1056899

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 1056899. Substitute parts can look different from the original.
$10.99
In Stock
Filter Door 1069935
#10

Non-functional replacement diagram

Filter door

Part #1069935

The manufacturer no longer makes this part, and there's no substitute part

Sup Plate 1055113
#9

Non-functional replacement diagram

Sup plate

Part #1055113

The manufacturer no longer makes this part, and there's no substitute part
