Model # PUZ-A36NHA2 Official Mitsubishi split-system outdoor unit

Here are the diagrams and repair parts for Official Mitsubishi PUZ-A36NHA2 split-system outdoor unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Terminal Block T7WE40716
#20

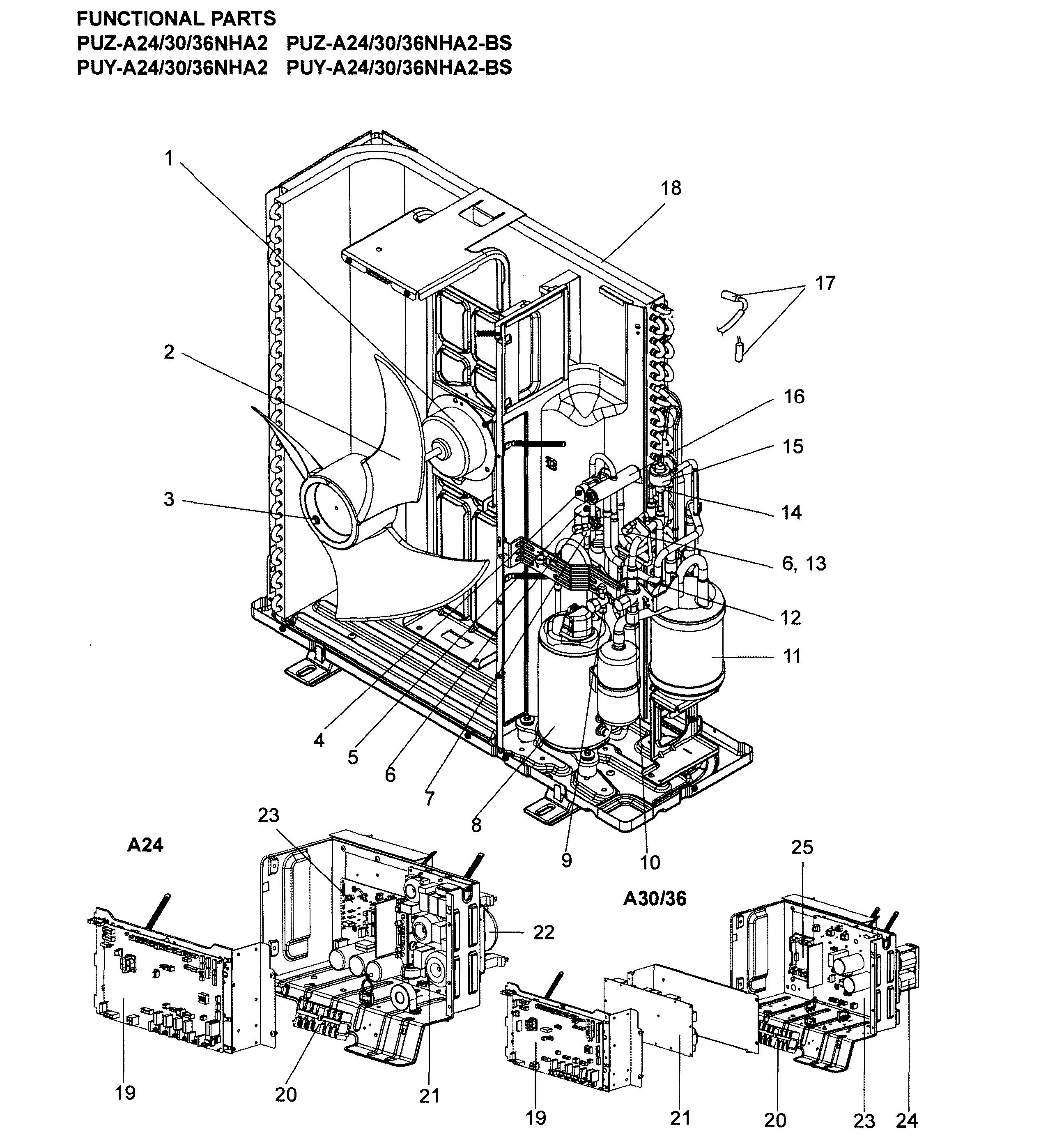

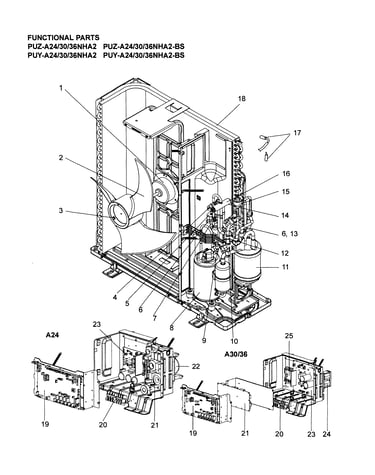

Compressor assy diagram

Terminal block

Part #T7WE40716

The manufacturer no longer makes this part, and there's no substitute part

Side Panel R01E16662
#1

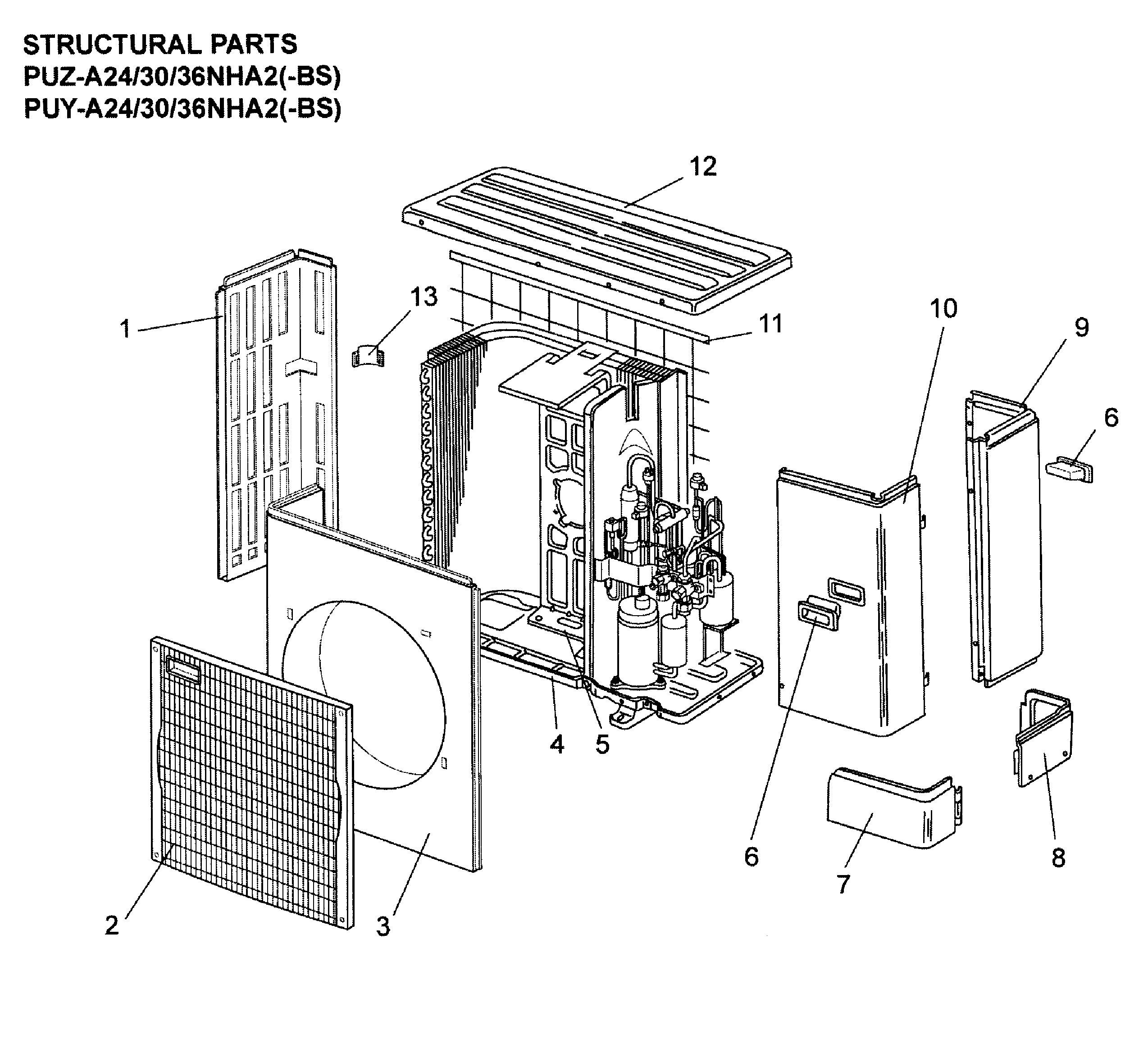

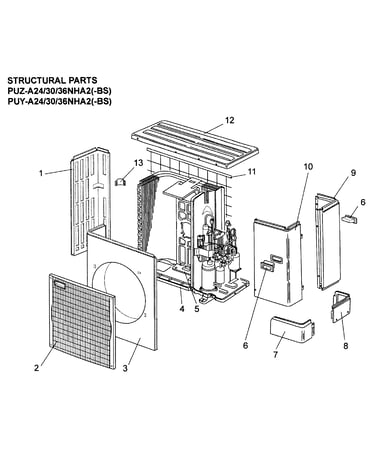

Cabinet assy diagram

Side panel

Part #R01E16662

The manufacturer no longer makes this part, and there's no substitute part

Valve 4-wy R01E28403
#16

Compressor assy diagram

Valve 4-wy

Part #R01E28403

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchange T7WE37408
#18

Compressor assy diagram

Heat exchange

Part #T7WE37408

The manufacturer no longer makes this part, and there's no substitute part

Handle R01E02655
#13

Cabinet assy diagram

Handle

Part #R01E02655

The manufacturer no longer makes this part, and there's no substitute part

Solenoid T7WE19242
#5

Compressor assy diagram

Solenoid

Part #T7WE19242

The manufacturer no longer makes this part, and there's no substitute part

Reactor R01E20259
#24

Compressor assy diagram

Reactor

Part #R01E20259

The manufacturer no longer makes this part, and there's no substitute part

Front Panel T7WE05667
#3

Cabinet assy diagram

Front panel

Part #T7WE05667

The manufacturer no longer makes this part, and there's no substitute part

Thermistor T7WE03201
#NI

Compressor assy diagram

Thermistor

Part #T7WE03201

The manufacturer no longer makes this part, and there's no substitute part

Thermistor R01N01202
#NI

Compressor assy diagram

Thermistor

Part #R01N01202

The manufacturer no longer makes this part, and there's no substitute part
