Craftsman
Handheld Vacuum

Model # 152213360 Official Craftsman shop vacuum

Here are the diagrams and repair parts for Official Craftsman 152213360 shop vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

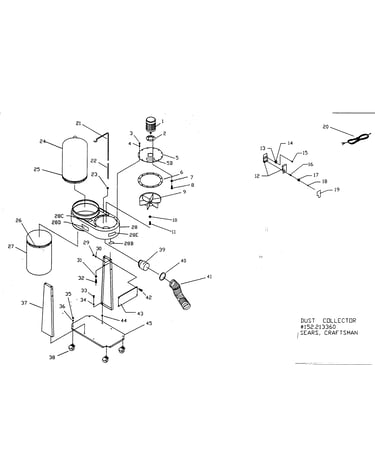

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Gasket OR90653
#2

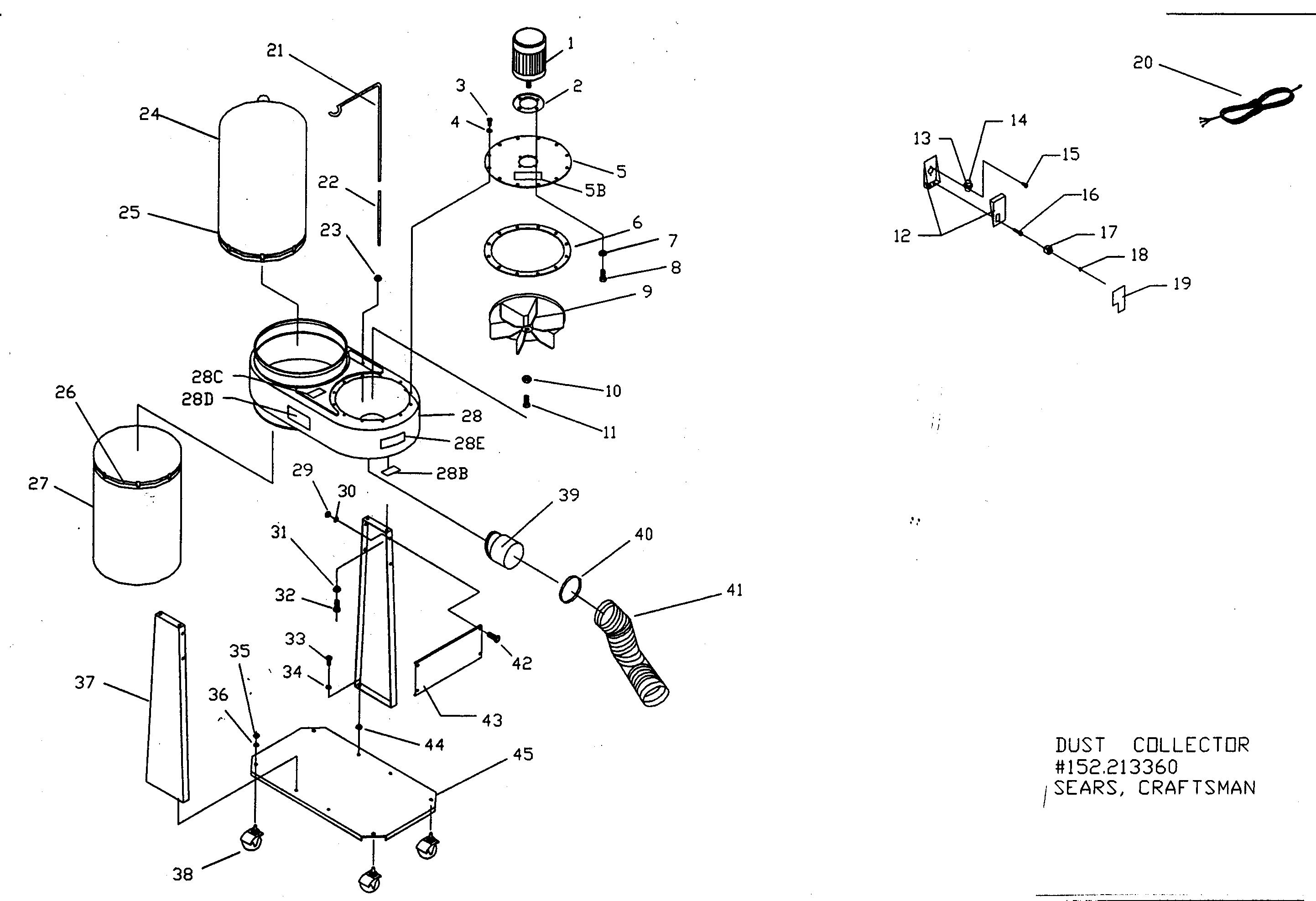

Vaccum diagram

Gasket

Part #OR90653

The manufacturer no longer makes this part, and there's no substitute part

Filter Bag OR65974
#24

Vaccum diagram

Filter bag

Part #OR65974

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual OR90596
#NI

Vaccum diagram

Owner's manual

Part #OR90596

The manufacturer no longer makes this part, and there's no substitute part

Screw OR90629
#15

Vaccum diagram

Screw

Part #OR90629

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster OR90648
#38

Vaccum diagram

Vacuum caster

Part #OR90648

The manufacturer no longer makes this part, and there's no substitute part

Capacitor OR90659
#14

Vaccum diagram

Capacitor

Part #OR90659

The manufacturer no longer makes this part, and there's no substitute part

Clamp OR90727
#13

Vaccum diagram

Clamp

Part #OR90727

The manufacturer no longer makes this part, and there's no substitute part

Screw OR90640
Screw

Part #OR90640

The manufacturer no longer makes this part, and there's no substitute part

Screw OR90630
#16

Vaccum diagram

Screw

Part #OR90630

The manufacturer no longer makes this part, and there's no substitute part

Clamp OR65935
#40

Vaccum diagram

Clamp

Part #OR65935

The manufacturer no longer makes this part, and there's no substitute part
