Model # NL0D105FF01 Official ICP oil-fired basement furnace

Here are the diagrams and repair parts for Official ICP NL0D105FF01 oil-fired basement furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Furnace Blower Fan Wheel 601210
#1

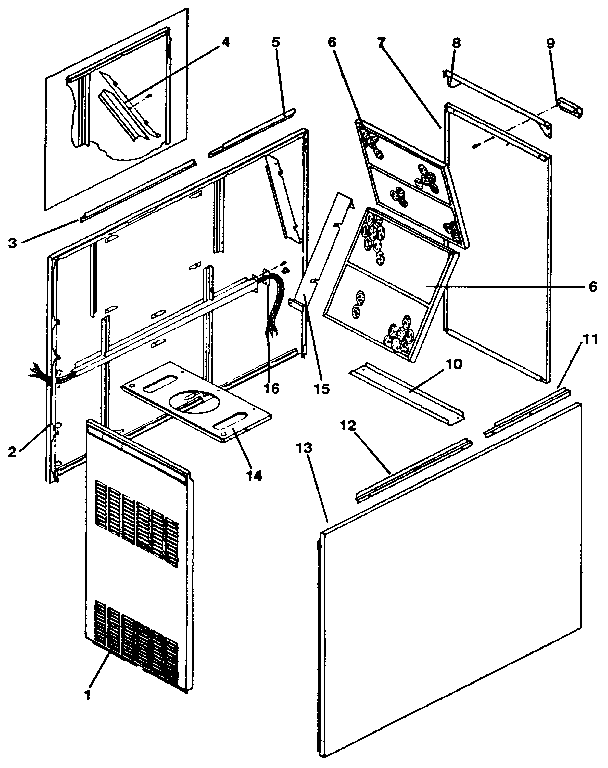

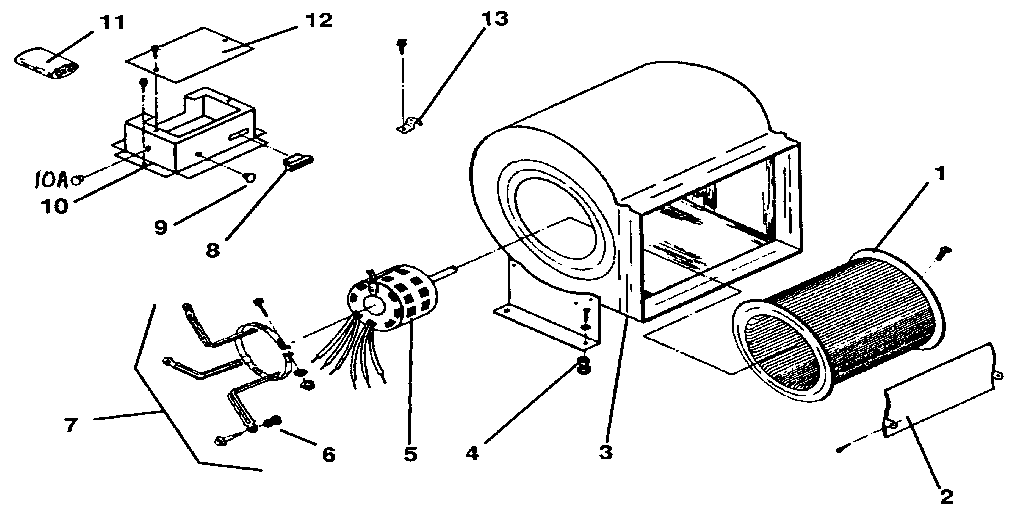

Functional replacement diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Blower Motor 604006
#5

Functional replacement diagram

Blower motor

Part #604006

Replaced by #1012514

?
Manufacturer substitution
This part replaces 604006. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Blower Wheel 1150448
#6

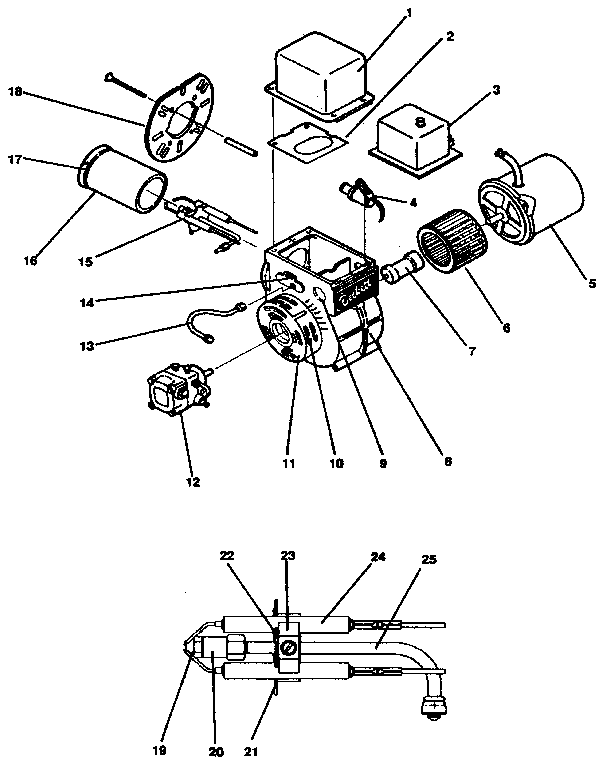

Blower assembly diagram

Blower wheel

Part #1150448

$74.96
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#7

Functional replacement diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Gasket 1007882
#5

Burner assembly diagram

Gasket

Part #1007882

$93.62
In Stock
Primary Rela 612454
#3

Blower assembly diagram

Primary rela

Part #612454

Replaced by #R8184M1051

?
Manufacturer substitution
This part replaces 612454. Substitute parts can look different from the original.
$393.58
In Stock
Dpdt Relay 96467
#14

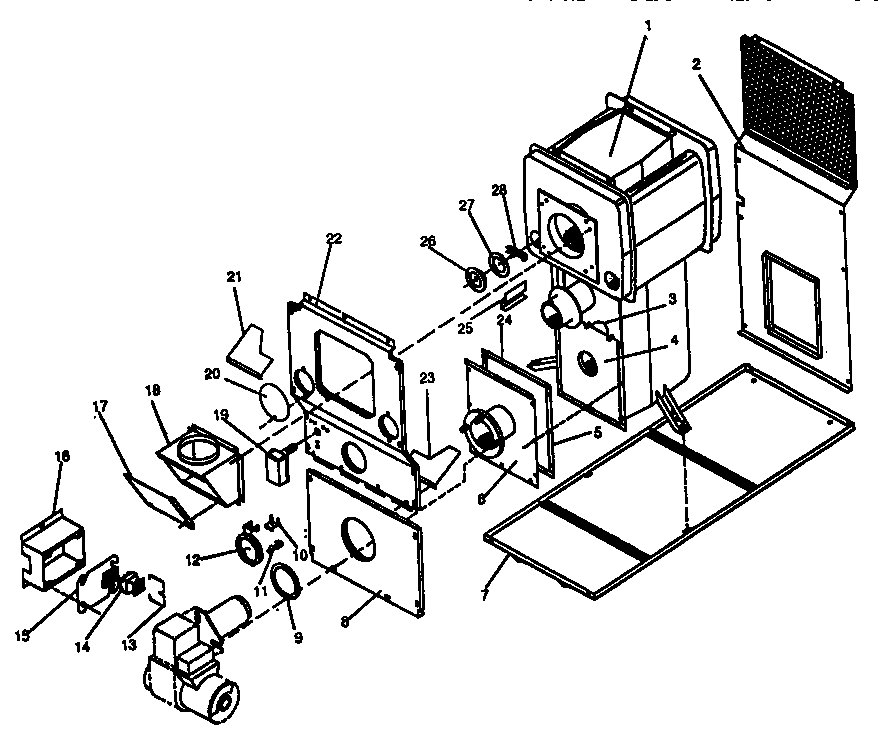

Burner assembly diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Oil 1008077
#19

Blower assembly diagram

Nozzle oil

Part #1008077

The manufacturer no longer makes this part, and there's no substitute part

Grommet 609194
#6

Functional replacement diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
Air Filter 64501
#6

Functional replacement parts diagram

Air filter

Part #64501

The manufacturer no longer makes this part, and there's no substitute part
