Schwinn
Exercise Cycle

Model # 150 Official Schwinn cycle

Here are the diagrams and repair parts for Official Schwinn 150 cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Exercise Cycle Transport Wheel 000-8616
#9

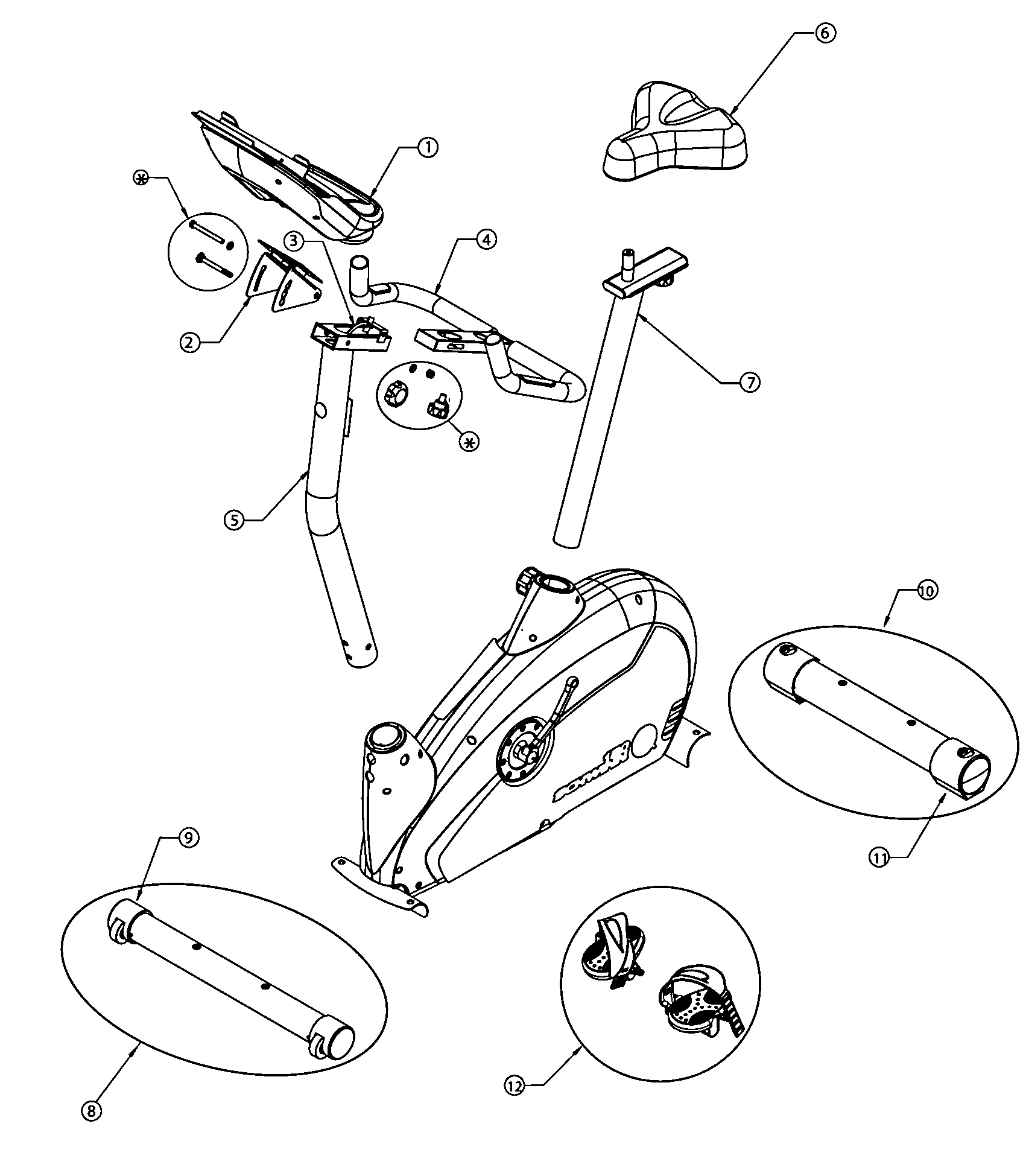

Cycle 1 diagram

Exercise cycle transport wheel

Part #000-8616

The manufacturer no longer makes this part, and there's no substitute part

Shroud,lft 004-8349
#25

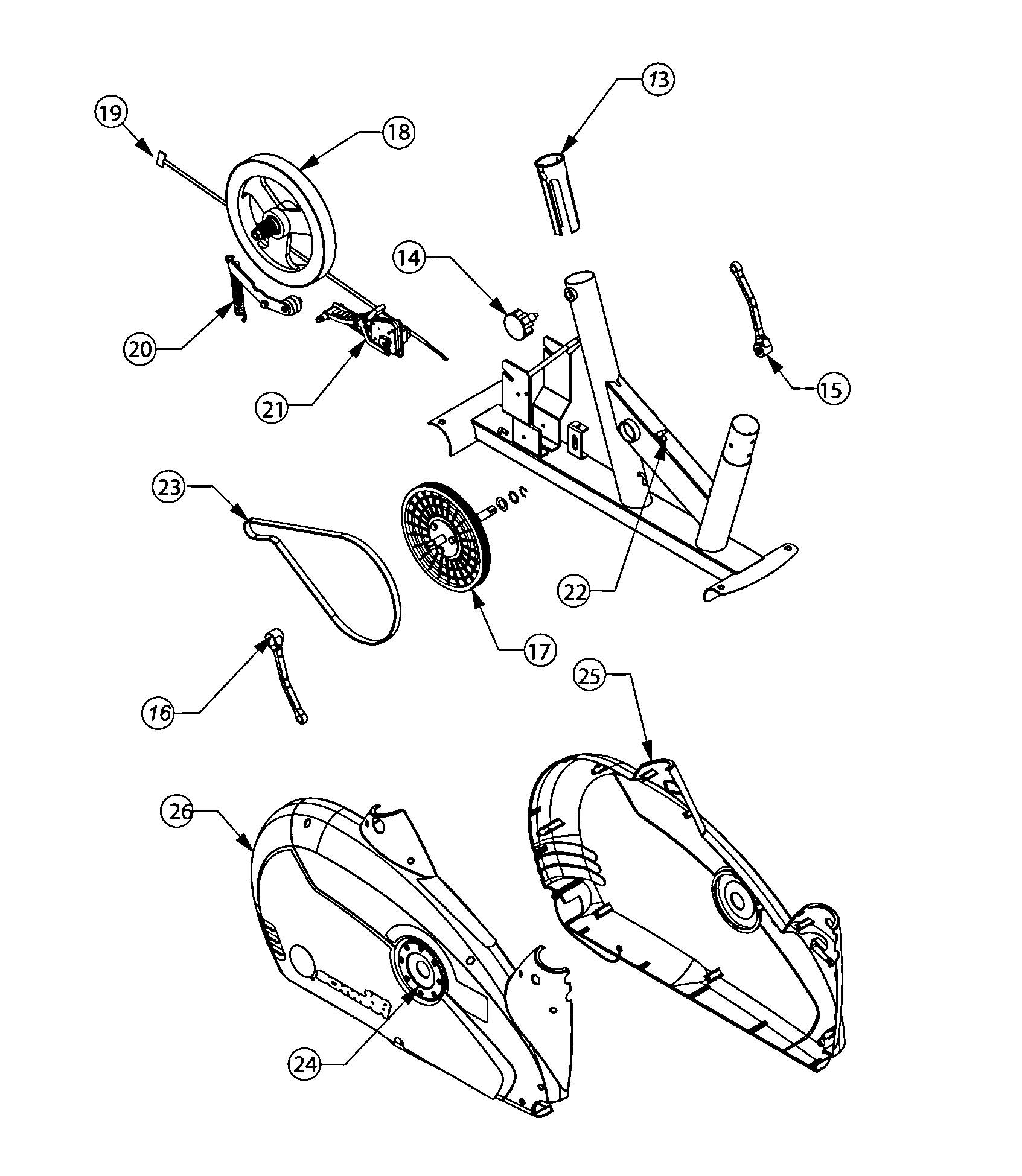

Cycle 2 diagram

Shroud,lft

Part #004-8349

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Exercise Cycle Stabilizer End Cap, Rear 18112
#11

Cycle 1 diagram

Nautilus exercise cycle stabilizer end cap, rear

Part #18112

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 004-8337
#18

Cycle 2 diagram

Flywheel

Part #004-8337

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 003-7937
#7

Cycle 1 diagram

Seat post

Part #003-7937

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Crank Pulley 004-8339
#17

Cycle 2 diagram

Exercise cycle crank pulley

Part #004-8339

The manufacturer no longer makes this part, and there's no substitute part

Tensioner 003-7654
#20

Cycle 2 diagram

Tensioner

Part #003-7654

The manufacturer no longer makes this part, and there's no substitute part

Stabilizer 003-7900
#8

Cycle 1 diagram

Stabilizer

Part #003-7900

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Power Adapter Jack 004-5598
#NI

Cycle 1 diagram

Exercise cycle power adapter jack

Part #004-5598

The manufacturer no longer makes this part, and there's no substitute part

Rear Stabilizer Assembly 003-7901
#10

Cycle 1 diagram

Rear stabilizer assembly

Part #003-7901

The manufacturer no longer makes this part, and there's no substitute part
