Model # 56448201650 Official LXI television

Here are the diagrams and repair parts for Official LXI 56448201650 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Kit Wedge 46-2898-9
Kit wedge

Part #46-2898-9

The manufacturer no longer makes this part, and there's no substitute part

Sears Box Antenna 46-84636-3

#NI

All parts diagram

Sears box antenna

Part #46-84636-3

The manufacturer no longer makes this part, and there's no substitute part

Sears Safety Tips L38-13297-0

#NI

All parts diagram

Sears safety tips

Part #L38-13297-0

The manufacturer no longer makes this part, and there's no substitute part

Remote Control Cover 46-48201-3
#6

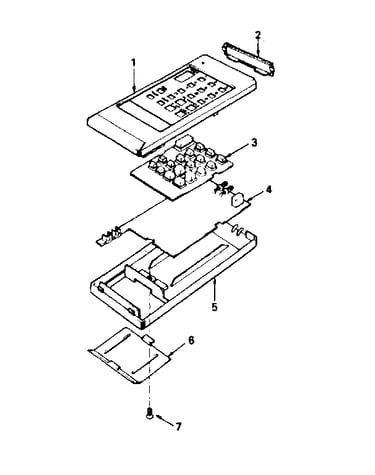

Remote control transmitter diagram

Remote control cover

Part #46-48201-3

The manufacturer no longer makes this part, and there's no substitute part

Degaussing Coil (see Caution) 46-1023113-3
#8

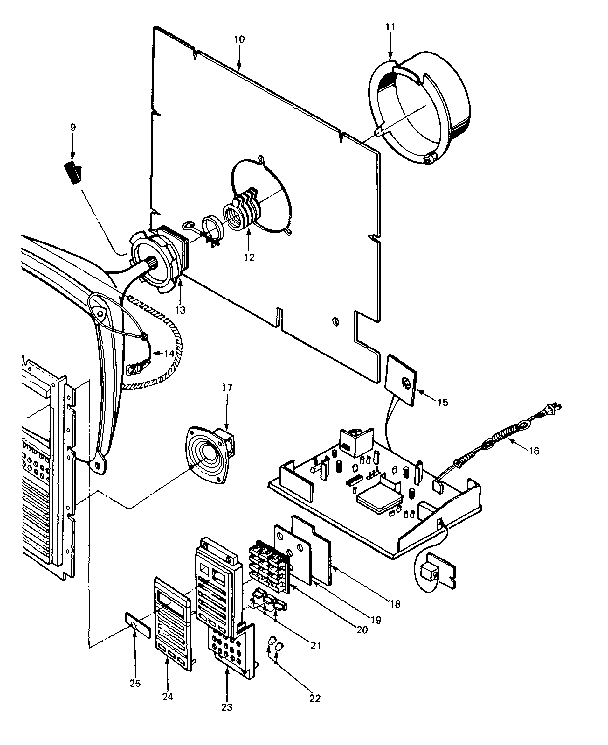

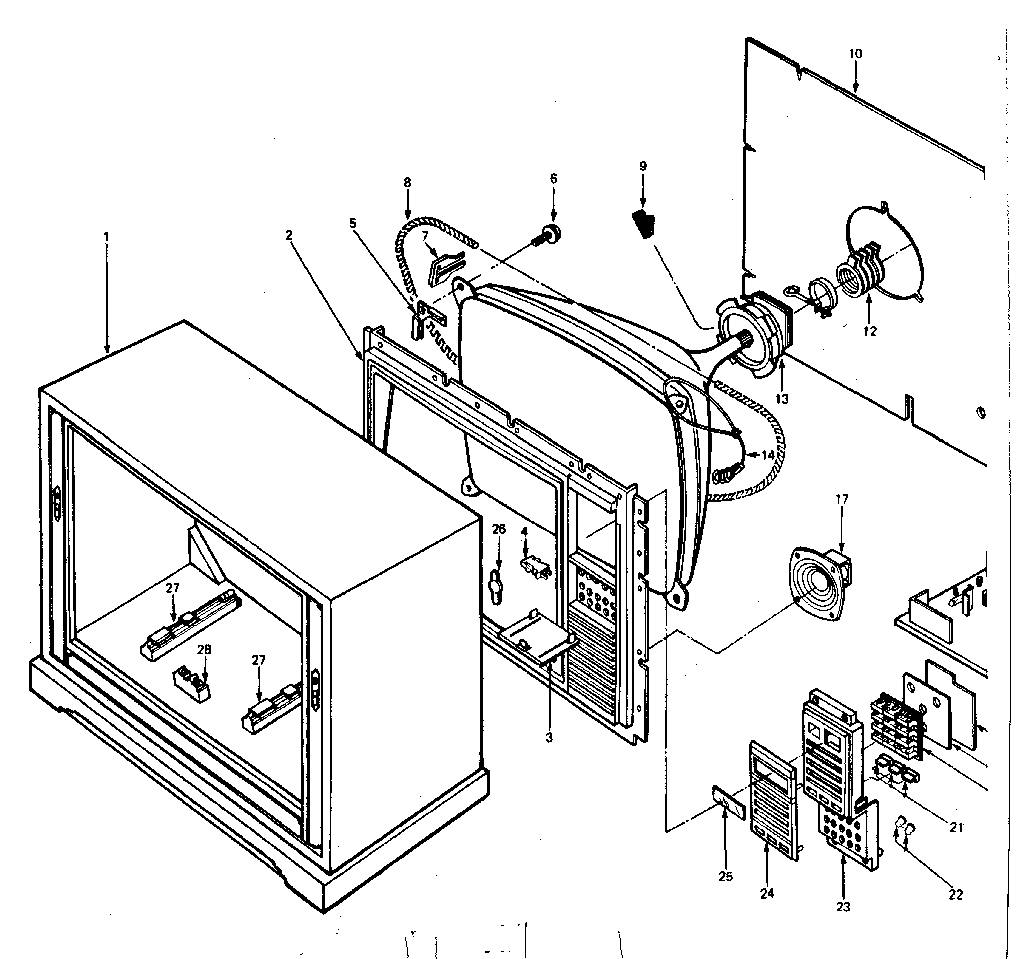

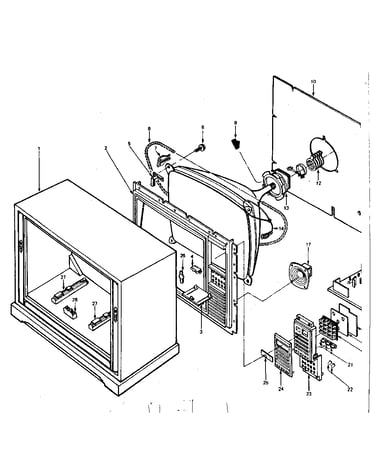

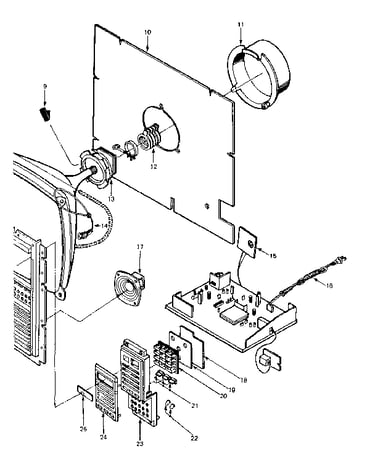

Cabinet for model 564.48101650 diagram

Degaussing coil (see caution)

Part #46-1023113-3

The manufacturer no longer makes this part, and there's no substitute part

Plate Deck 46-40752-3

#NI

All parts diagram

Plate deck

Part #46-40752-3

The manufacturer no longer makes this part, and there's no substitute part

Control Plate 46-40748-3

#NI

All parts diagram

Control plate

Part #46-40748-3

The manufacturer no longer makes this part, and there's no substitute part

Push Button 46-521678-3
Push button

Part #46-521678-3

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 46-50317-3
Control panel

Part #46-50317-3

The manufacturer no longer makes this part, and there's no substitute part

Coil Degauss 46-102311-3
#8

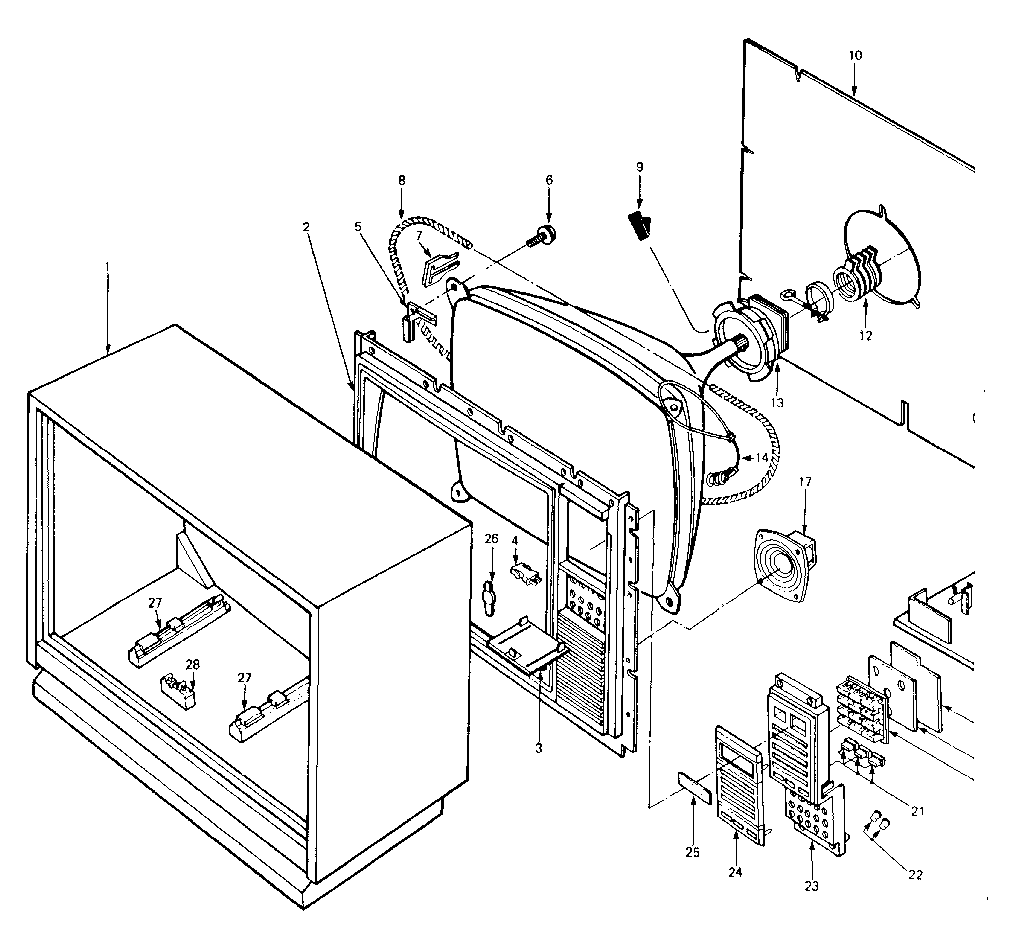

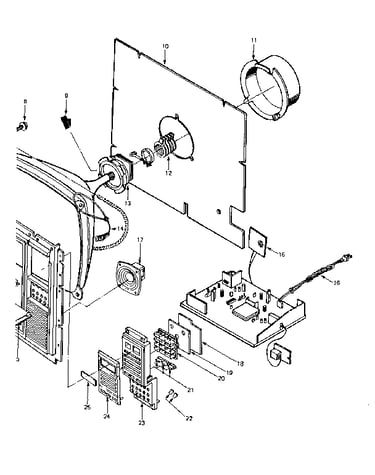

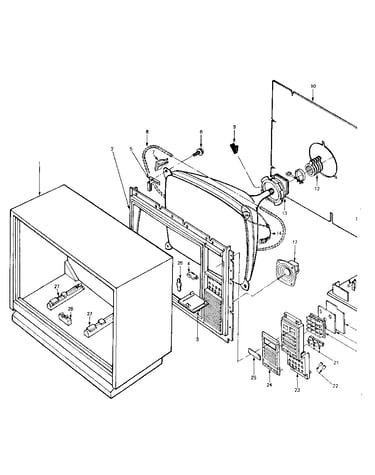

Cabinet for model 564.48201650 diagram

Coil degauss

Part #46-102311-3

The manufacturer no longer makes this part, and there's no substitute part
